Grundfos MAGNA1 C Series User Manual

Appendix
37

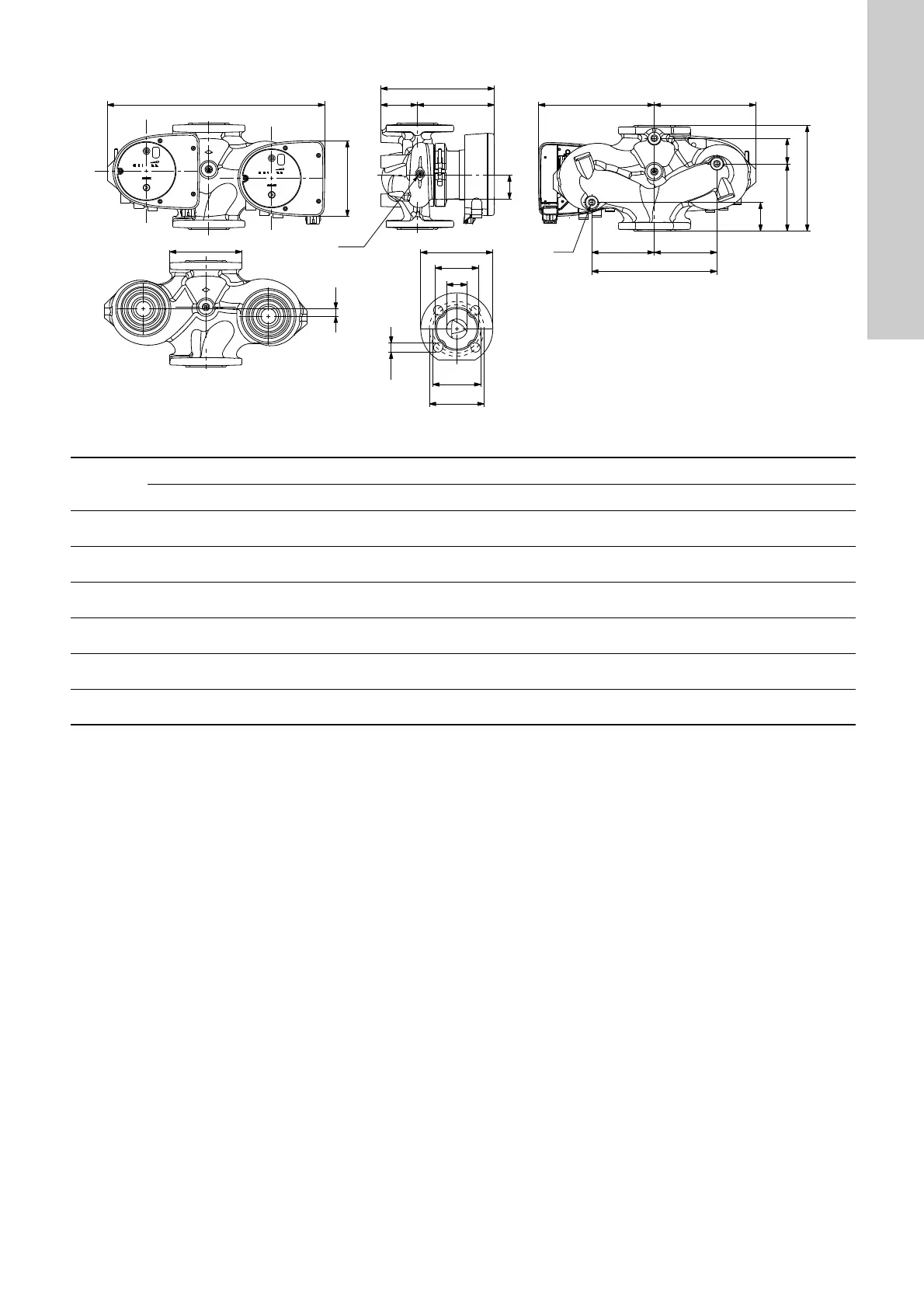

Fig. 5 Twin-head pump dimensions, plug-connected versions, flanged version
TM07 0069 4117
L5
H3
L1
B6 B6
B7
D2
D4
D5
D3
D3
M3
M
L4
L2L3
B3 H1 B5 B4H2
B1
D1
L7
D4
Pump type
Dimensions [mm]
L1 L2 L3 L4 L5 L7 B1 B3 B4 B5 B6 B7 H1 H2 H3 D1 D2 D3 D4 D5 M
MAGNA1 D
32-40 F
220 73 120 85 158 35 58 400 179 221 130 260 69 142 211 32 76 90/100 140 14/19 12
MAGNA1 D
32-60 F
220 73 120 85 158 35 58 400 179 221 130 260 69 142 211 32 76 90/100 140 14/19 12
MAGNA1 D
32-80 F
220 73 120 85 158 35 58 400 179 221 130 260 69 142 211 32 76 90/100 140 14/19 12
MAGNA1 D
40-40 F
220 53 140 60 158 15 58 452 211 241 130 260 76 156 232 40 84 100/110 150 14/19 12
MAGNA1 D
40-60 F
220 53 140 60 158 15 58 452 211 241 130 260 76 156 232 40 84 100/110 150 14/19 12
MAGNA1 D
40-80 F
220 53 140 60 204 15 84 502 210 294 130 260 76 303 379 40 84 100/110 150 14/19 12

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
