Appendix
38

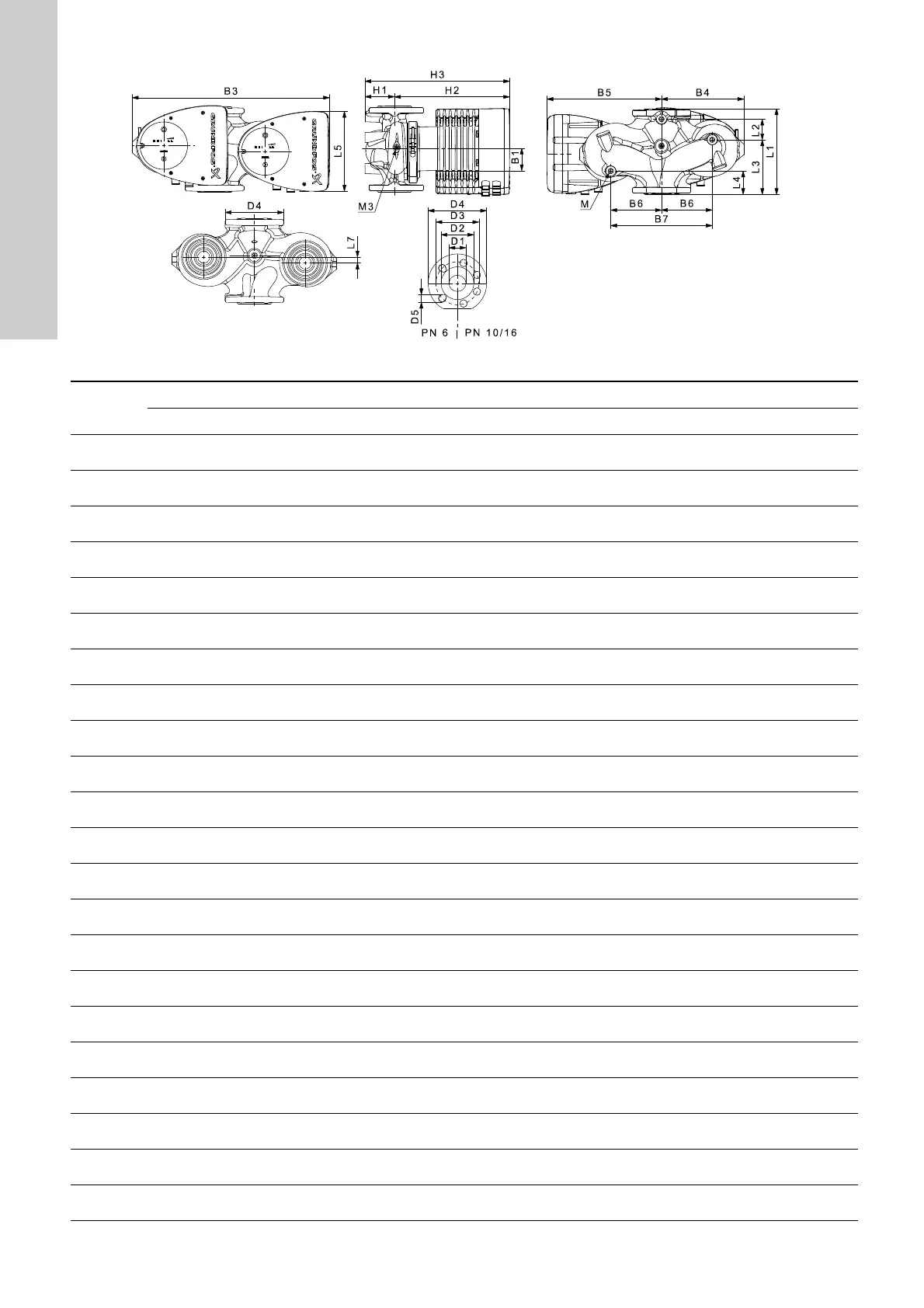

Fig. 6 Twin-head pump dimensions, terminal-connected versions, flanged version
TM05 5275 3512
Pump type
Dimensions [mm]
L1 L2 L3 L4 L5 L7 B1 B3 B4 B5 B6 B7 H1 H2 H3 D1 D2 D3 D4 D5 M
MAGNA1 D
32-120 F
220 97 90 50 204 50 84 502 210 294 130 260 68 300 368 32 76 90/100 140 14/19 12
MAGNA1 D
40-80 F
220 53 140 60 204 15 84 502 210 294 130 260 76 303 379 40 84 100/110 150 14/19 12
MAGNA1 D
40-100 F
220 53 140 60 204 15 84 502 210 294 130 260 76 303 379 40 84 100/110 150 14/19 12
MAGNA1 D
40-120 F
250 58 155 75 204 0 84 512 220 294 130 260 69 303 372 40 84 100/110 150 14/19 12
MAGNA1 D
40-150 F
250 58 155 75 204 0 84 512 220 294 130 260 69 303 372 40 84 100/110 150 14/19 12
MAGNA1 D
40-180 F
250 58 155 75 204 0 84 512 220 294 130 260 69 303 372 40 84 100/110 150 14/19 12
MAGNA1 D
50-40 F
240 48 160 45 204 45 84 515 221 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
50-60 F
240 48 160 45 204 45 84 515 221 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
50-80 F
240 48 160 45 204 45 84 515 221 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
50-100 F
280 175 75 75 204 0 84 517 223 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
50-120 F
280 175 75 75 204 0 84 517 223 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
50-150 F
280 175 75 75 204 0 84 517 223 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
50-180 F
280 175 75 75 204 0 84 517 223 294 130 260 75 304 379 50 102 110/125 165 14/19 12
MAGNA1 D
65-40 F
340 218 92 92 204 0 84 522 228 294 130 260 77 312 389 65 119 130/145 185 14/19 12
MAGNA1 D
65-60 F
340 218 92 92 204 0 84 522 228 294 130 260 77 312 389 65 119 130/145 185 14/19 12
MAGNA1 D
65-80 F
340 218 92 92 204 0 84 522 228 294 130 260 77 312 389 65 119 130/145 185 14/19 12
MAGNA1 D
65-100 F
340 218 92 92 204 0 84 522 228 294 130 260 77 312 389 65 119 130/145 185 14/19 12
MAGNA1 D
65-120 F
340 218 92 92 204 0 84 522 228 294 130 260 77 312 389 65 119 130/145 185 14/19 12
MAGNA1 D
65-150 F
340 218 92 92 204 0 84 522 228 294 130 260 77 312 389 65 119 130/145 185 14/19 12
MAGNA1 D
80-40 F
360 218 102 102 204 0 84 538 244 294 130 260 97 318 415 80 128 150/160 200 19 12
MAGNA1 D
80-60 F
360 218 102 102 204 0 84 538 244 294 130 260 97 318 415 80 128 150/160 200 19 12
MAGNA1 D
80-80 F
360 218 102 102 204 0 84 538 244 294 130 260 97 318 415 80 128 150/160 200 19 12

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
