5
D
D
i
i
s
s
p
p
l
l
a
a
y
y
The Model 370 and Model 375 come standard with a six digit, 7-segment bright green LED
display. The Model 370 and Model 375 will display alphanumeric data, but due to the nature of 7-
segment LED and the limitation of six digits, some information is abbreviated.
The display also has 11 annunciators to show weight and status information. The SP1, SP2, and
SP3 annunciators are red, green, and yellow. Also there is an annunciator for a third unit under
kg. Place the third unit label above the third Annunciator (refer to Figure 1-6). See page 24 for
third unit setup.
All segments and annunciators are illuminated for a brief display test upon power up. The current
gross weight is then displayed in default units.

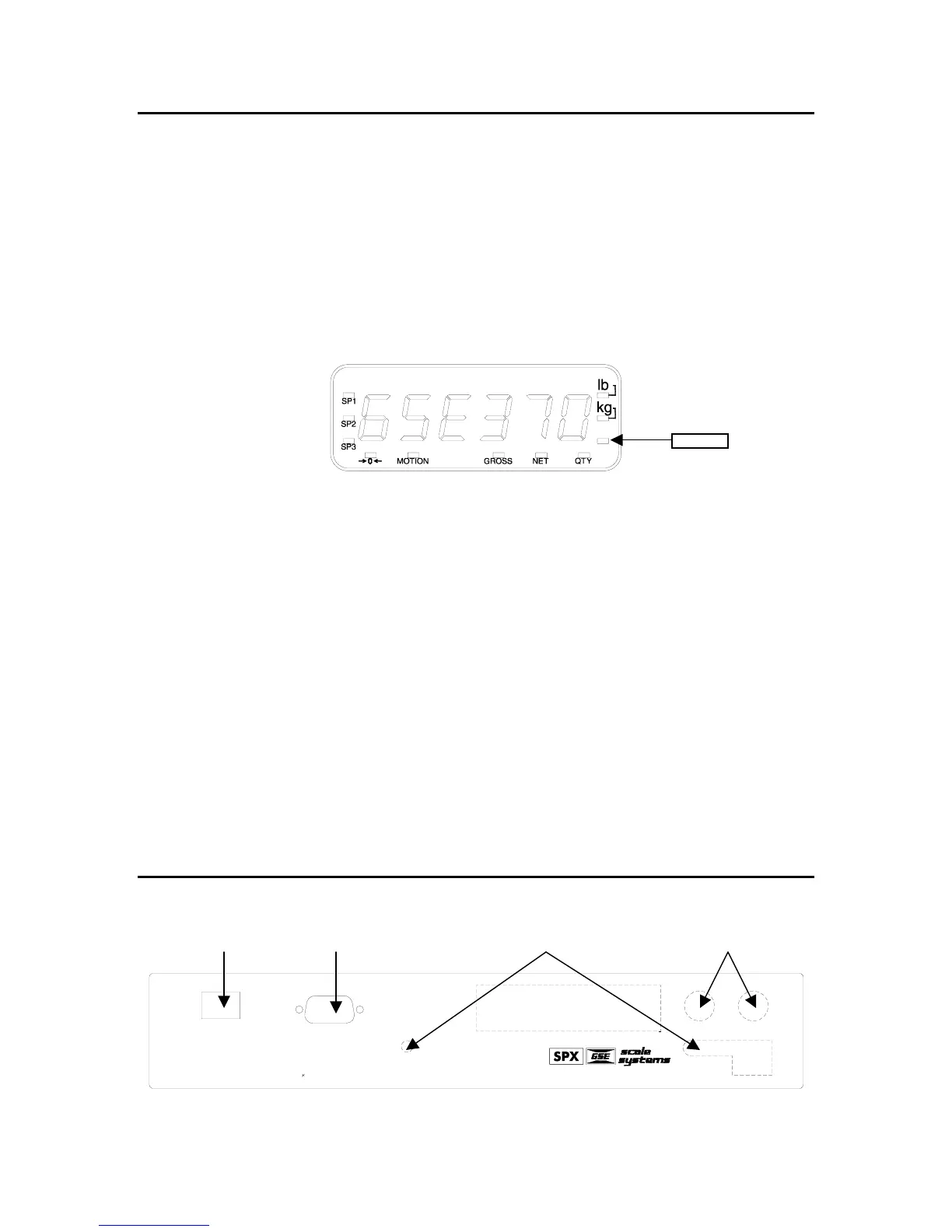

Figure 1-6: Model 370 and Model 375 LED Display
ANNUNCIATORS
Annunciators provide mode and status information. When illuminated, they indicate the following
conditions:
SP1 Setpoint #1 activated (relay 1 closed)
SP2 Setpoint #2 activated (relay 2 closed)
SP3 Setpoint #3 activated (relay 3 closed)
0
Displayed weight is at center-of-zero (± ¼ display graduation)
MOTION
Scale is in motion. Motion inhibited transmits and motion inhibited setpoint activation will be delayed
until motion ceases
GROSS Displayed value represents the current gross weight
NET Displayed value represents the current net weight
QTY Displayed value represents the current piece quantity (Count)
lb The displayed value is represented in pounds
kg The displayed value is represented in kilograms
Oz, lb oz, g The displayed value is represented in either ounces, pound ounces or grams
R
R
e
e
a
a
r
r
P
P
a
a
n
n
e
e
l
l
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
s
s
ETHERNET
AUX 3
AUX 2
COM 1
BATTERY
ON/OFF
www.gse-inc.com Novi, MI USA
PLACE 370/375 BARCODE HERE
POWER (15W MAX)
50-60 Hz 12-20 VAC
DC 12-36V
1 NONE
2 RXD
3 TXD
4 *
5 GND
6 GND
7 RTS
8 CTS
9 +5V
5 GND
MOVE JUMBER E6
FOR +5V ON PIN 4
Figure 1-7: Rear Panel
AC Powe
Com 1 O
tions Future O
tion
Third Unit
