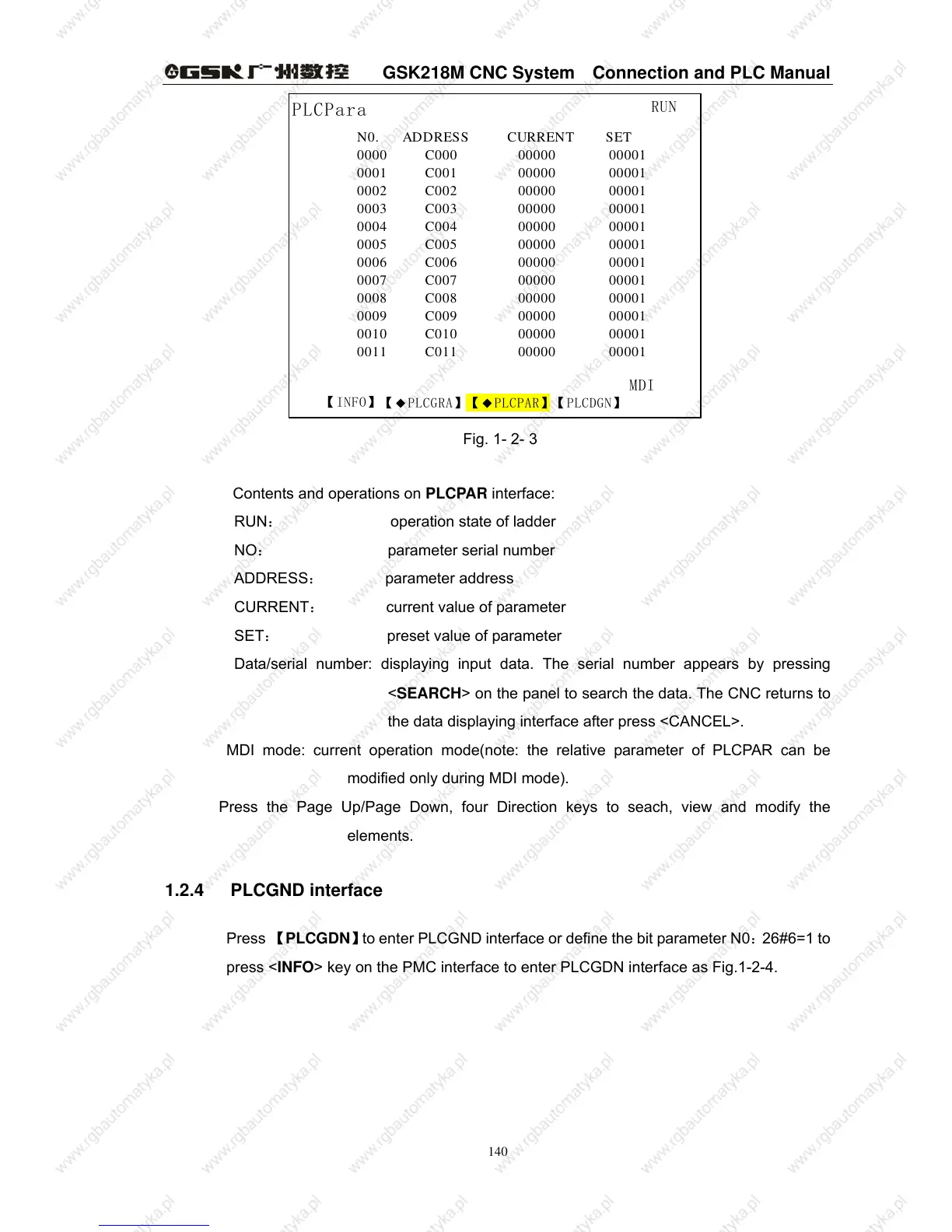

GSK218M CNC System Connection and PLC Manual
140
N0. ADDRESS CURRENT SET
0000 C000 00000 00001
0001 C001 00000 00001
0002 C002 00000 00001
0003 C003 00000 00001
0004 C004 00000 00001
0005 C005 00000 00001
0006 C006 00000 00001
0007 C007 00000 00001
0008 C008 00000 00001
0009 C009 00000 00001
0010 C010 00000 00001
0011 C011 00000 00001
PLCPara
MDI
RUN
【INFO】
【
◆PLCGRA】【◆PLCPAR】【PLCDGN】
Fig. 1- 2- 3
Contents and operations on PLCPAR interface:
RUN： operation state of ladder
NO： parameter serial number
ADDRESS： parameter address
CURRENT： current value of parameter
SET： preset value of parameter
Data/serial number: displaying input data. The serial number appears by pressing
<SEARCH> on the panel to search the data. The CNC returns to
the data displaying interface after press <CANCEL>.
MDI mode: current operation mode(note: the relative parameter of PLCPAR can be
modified only during MDI mode).
Press the Page Up/Page Down, four Direction keys to seach, view and modify the
elements.
1.2.4 PLCGND interface
Press 【PLCGDN】to enter PLCGND interface or define the bit parameter N0：26#6=1 to
press <INFO> key on the PMC interface to enter PLCGDN interface as Fig.1-2-4.
