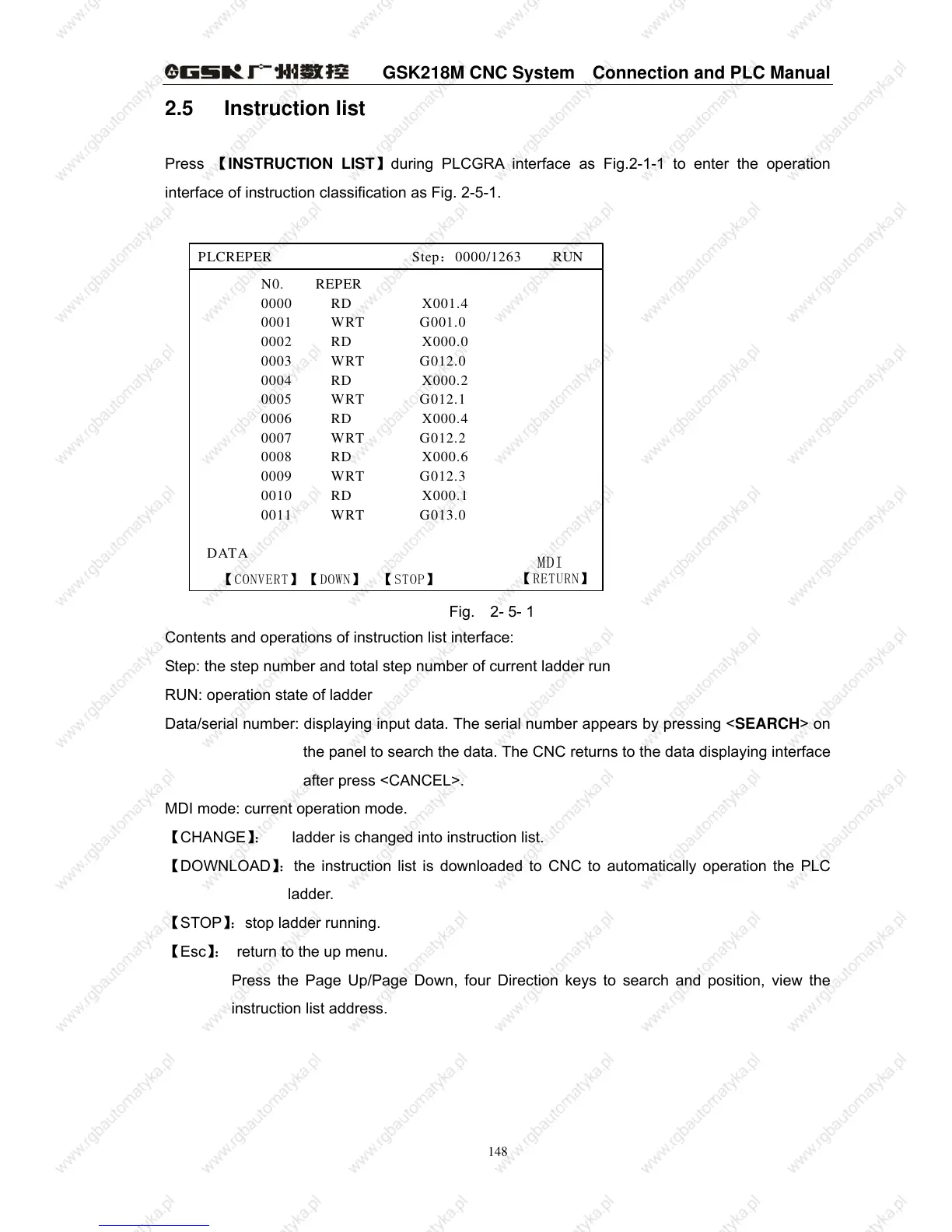

2.5 Instruction list
Press 【INSTRUCTION LIST】during PLCGRA interface as Fig.2-1-1 to enter the operation
interface of instruction classification as Fig. 2-5-1.
MDI
PLCREPER Step：0000/1263 RUN
【RETURN】
【STOP】【DOWN】
N0. REPER
0000 RD X001.4
0001 WRT G001.0
0002 RD X000.0
0003 WRT G012.0
0004 RD X000.2
0005 WRT G012.1
0006 RD X000.4
0007 WRT G012.2
0008 RD X000.6
0009 WRT G012.3
0010 RD X000.1
0011 WRT G013.0
DATA
【CONVERT】
Fig. 2- 5- 1
Contents and operations of instruction list interface:
Step: the step number and total step number of current ladder run
RUN: operation state of ladder
Data/serial number: displaying input data. The serial number appears by pressing <SEARCH> on
the panel to search the data. The CNC returns to the data displaying interface
after press <CANCEL>.
MDI mode: current operation mode.
【CHANGE】： ladder is changed into instruction list.
【DOWNLOAD】：the instruction list is downloaded to CNC to automatically operation the PLC
ladder.
【STOP】：stop ladder running.
【Esc】： return to the up menu.
Press the Page Up/Page Down, four Direction keys to search and position, view the
instruction list address.
