GSK218M CNC System Connection and PLC Manual
30

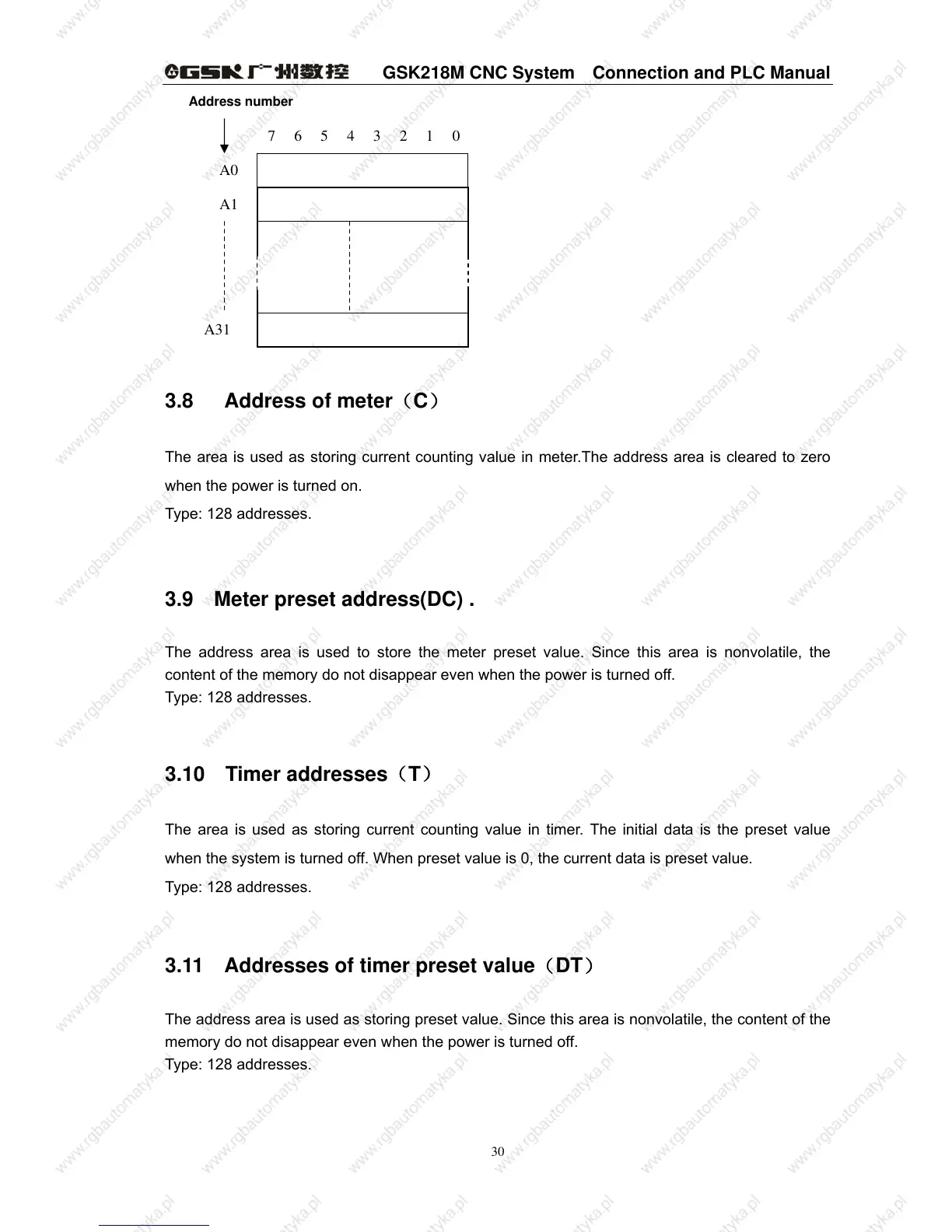

3.8 Address of meter（C）
The area is used as storing current counting value in meter.The address area is cleared to zero
when the power is turned on.
Type: 128 addresses.
3.9 Meter preset address(DC) .
The address area is used to store the meter preset value. Since this area is nonvolatile, the
content of the memory do not disappear even when the power is turned off.
Type: 128 addresses.
3.10 Timer addresses（T）
The area is used as storing current counting value in timer. The initial data is the preset value
when the system is turned off. When preset value is 0, the current data is preset value.
Type: 128 addresses.
3.11 Addresses of timer preset value（DT）
The address area is used as storing preset value. Since this area is nonvolatile, the content of the
memory do not disappear even when the power is turned off.
Type: 128 addresses.
17 5 6 4 3 2 0
A0
A1
A31
Address number
