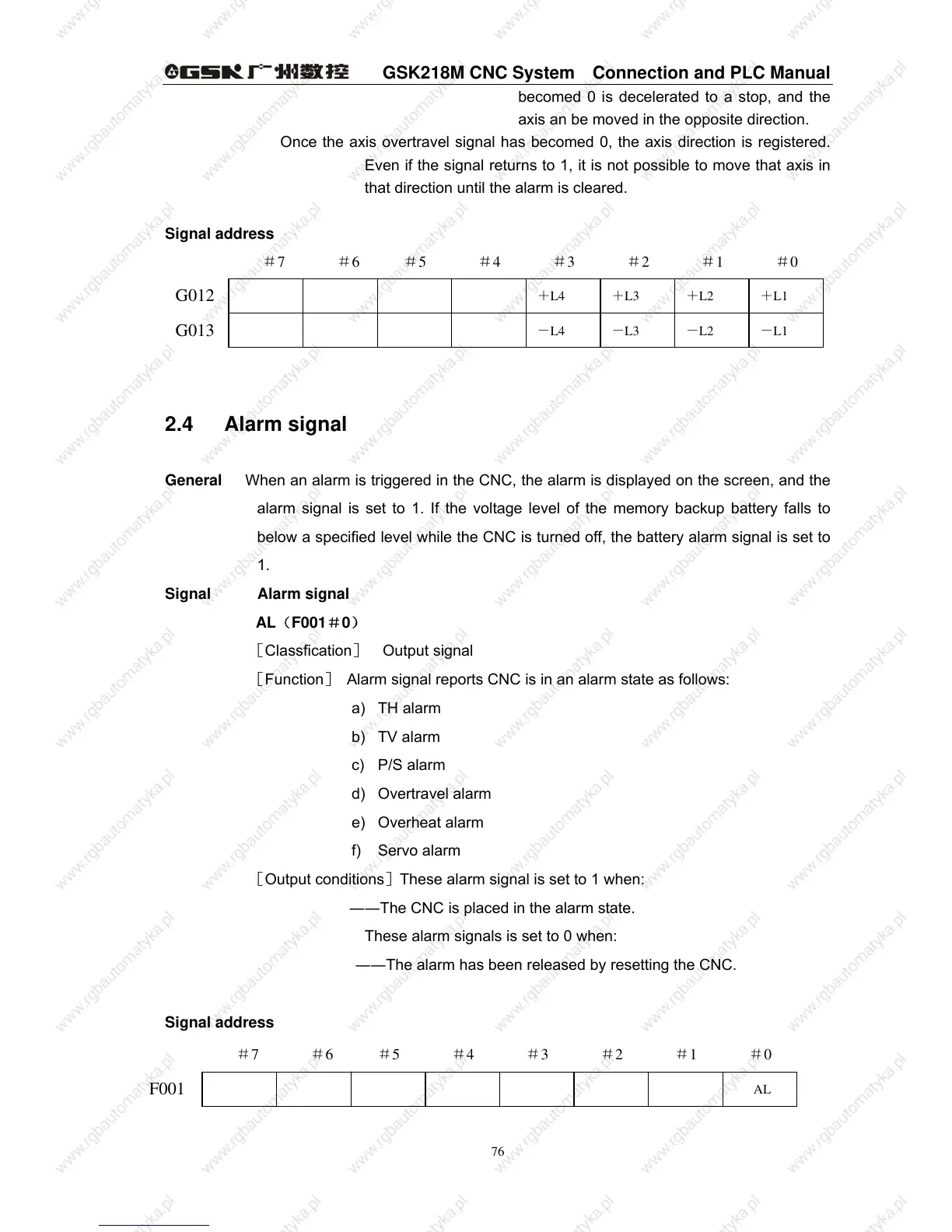

GSK218M CNC System Connection and PLC Manual
76
becomed 0 is decelerated to a stop, and the
axis an be moved in the opposite direction.
Once the axis overtravel signal has becomed 0, the axis direction is registered.
Even if the signal returns to 1, it is not possible to move that axis in
that direction until the alarm is cleared.
Signal address
2.4 Alarm signal
General When an alarm is triggered in the CNC, the alarm is displayed on the screen, and the
alarm signal is set to 1. If the voltage level of the memory backup battery falls to
below a specified level while the CNC is turned off, the battery alarm signal is set to
1.
Signal Alarm signal
AL（F001＃0）
［Classfication］ Output signal
［Function］ Alarm signal reports CNC is in an alarm state as follows:
a) TH alarm
b) TV alarm
c) P/S alarm
d) Overtravel alarm
e) Overheat alarm
f) Servo alarm
［Output conditions］These alarm signal is set to 1 when:
――The CNC is placed in the alarm state.
These alarm signals is set to 0 when:
――The alarm has been released by resetting the CNC.
Signal address
＋L4 ＋L3 ＋L2 ＋L1
G012
＃7 ＃6 ＃5 ＃4 ＃3 ＃2 ＃1 ＃0
－L4 －L3 －L2 －L1
G013
AL
F001
＃7 ＃6 ＃5 ＃4 ＃3 ＃2 ＃1 ＃0
