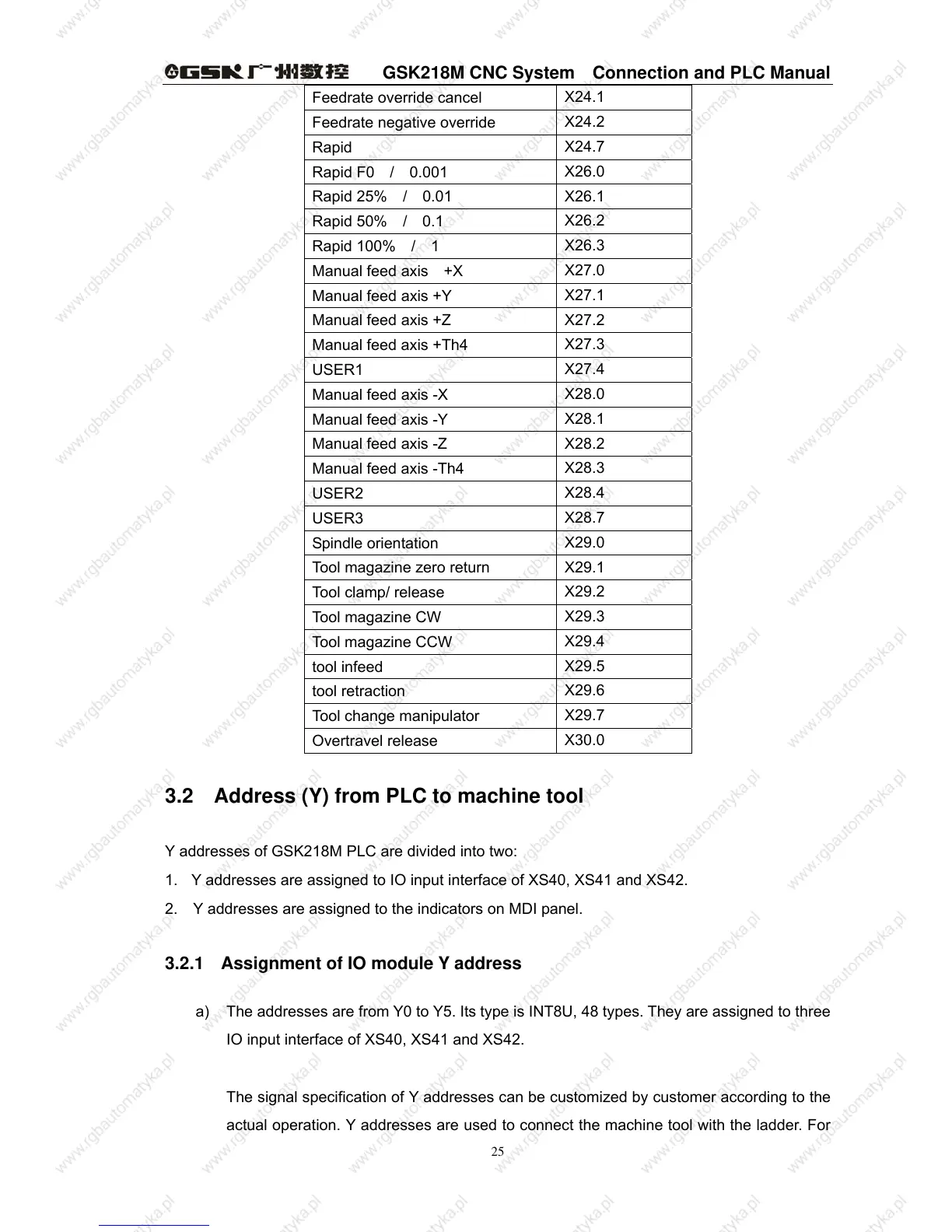

GSK218M CNC System Connection and PLC Manual
25
Feedrate override cancel
X24.1
Feedrate negative override
X24.2
Rapid
X24.7
Rapid F0 / 0.001
X26.0
Rapid 25% / 0.01
X26.1
Rapid 50% / 0.1
X26.2
Rapid 100% / 1
X26.3
Manual feed axis +X
X27.0
Manual feed axis +Y
X27.1
Manual feed axis +Z
X27.2
Manual feed axis +Th4
X27.3
USER1
X27.4
Manual feed axis -X
X28.0
Manual feed axis -Y
X28.1
Manual feed axis -Z
X28.2
Manual feed axis -Th4
X28.3
USER2
X28.4
USER3
X28.7
Spindle orientation
X29.0
Tool magazine zero return
X29.1
Tool clamp/ release
X29.2
Tool magazine CW
X29.3
Tool magazine CCW
X29.4
tool infeed
X29.5
tool retraction
X29.6
Tool change manipulator
X29.7
Overtravel release
X30.0
3.2 Address (Y) from PLC to machine tool
Y addresses of GSK218M PLC are divided into two:
1. Y addresses are assigned to IO input interface of XS40, XS41 and XS42.
2. Y addresses are assigned to the indicators on MDI panel.
3.2.1 Assignment of IO module Y address
a) The addresses are from Y0 to Y5. Its type is INT8U, 48 types. They are assigned to three
IO input interface of XS40, XS41 and XS42.
The signal specification of Y addresses can be customized by customer according to the
actual operation. Y addresses are used to connect the machine tool with the ladder. For
