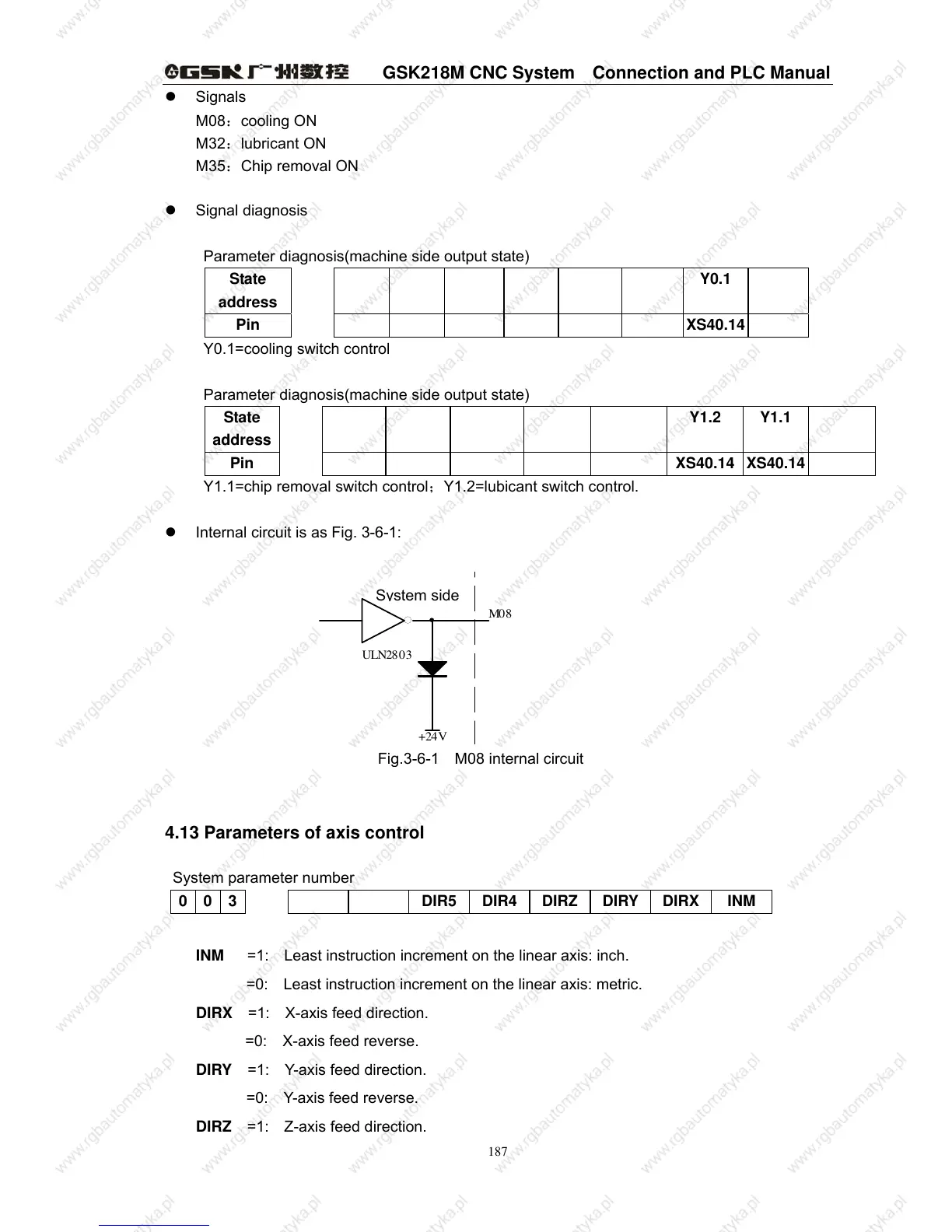

GSK 218M - Parameters of Axis Control

GSK218M CNC System Connection and PLC Manual
187
z Signals
M08
：
cooling ON
M32
：
lubricant ON
M35
：
Chip removal ON
z Signal diagnosis
Parameter diagnosis(machine side output state)
State
address
Y0.1
Pin XS40.14
Y0.1=cooling switch control
Parameter diagnosis(machine side output state)
State
address
Y1.2 Y1.1
Pin XS40.14 XS40.14
Y1.1=chip removal switch control；Y1.2=lubicant switch control.
z Internal circuit is as Fig. 3-6-1:
4.13 Parameters of axis control
System parameter number
0 0 3 DIR5 DIR4 DIRZ DIRY DIRX INM
INM =1: Least instruction increment on the linear axis: inch.
=0: Least instruction increment on the linear axis: metric.
DIRX =1: X-axis feed direction.
=0: X-axis feed reverse.
DIRY =1: Y-axis feed direction.
=0: Y-axis feed reverse.
DIRZ =1: Z-axis feed direction.
+24V
ULN2803
M0 8
Fi
g
.3-6-1 M08 internal circuit
S
y
stem side
