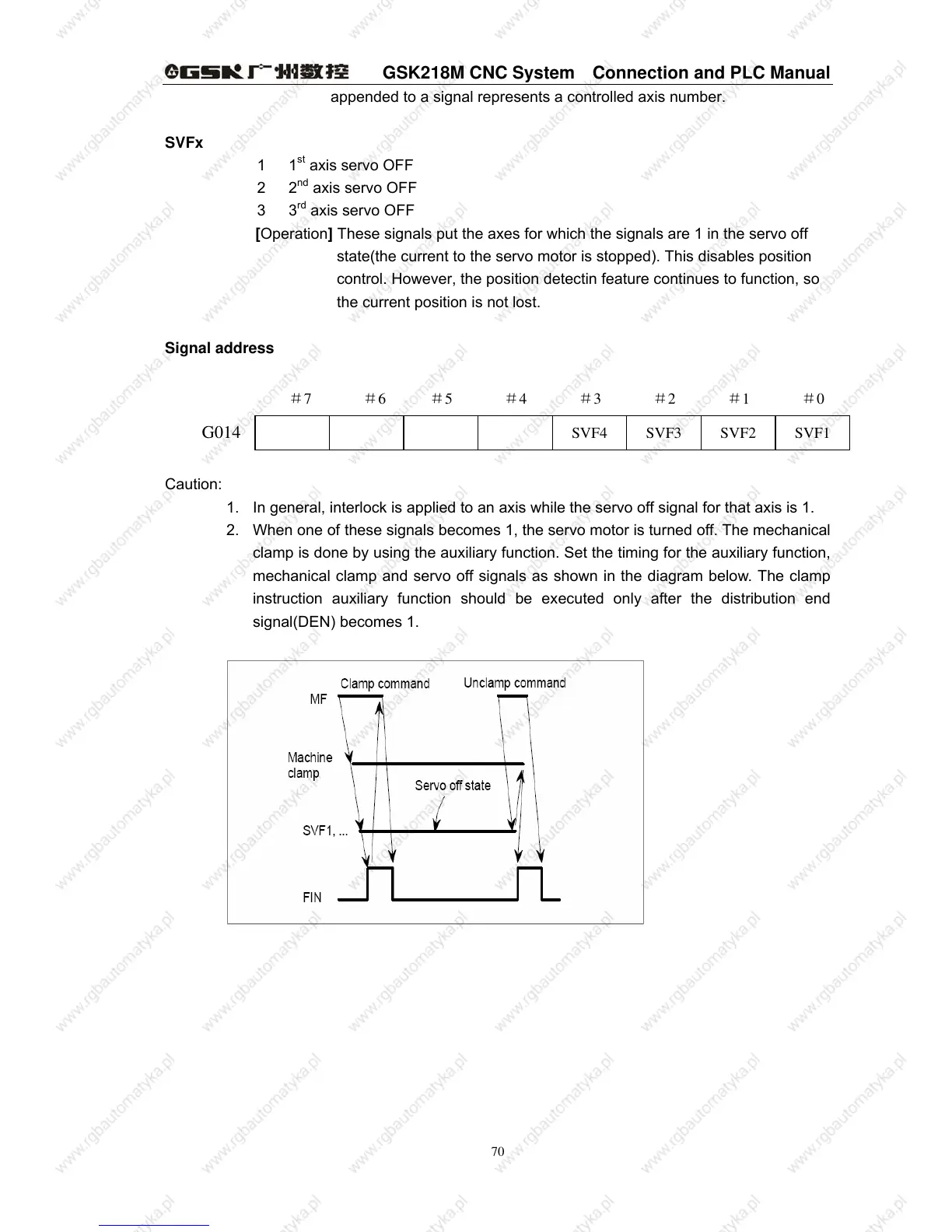

GSK218M CNC System Connection and PLC Manual
70
appended to a signal represents a controlled axis number.
SVFx
11
st
axis servo OFF
22
nd
axis servo OFF
33
rd
axis servo OFF
[Operation] These signals put the axes for which the signals are 1 in the servo off
state(the current to the servo motor is stopped). This disables position
control. However, the position detectin feature continues to function, so
the current position is not lost.
Signal address
Caution:
1. In general, interlock is applied to an axis while the servo off signal for that axis is 1.
2. When one of these signals becomes 1, the servo motor is turned off. The mechanical
clamp is done by using the auxiliary function. Set the timing for the auxiliary function,
mechanical clamp and servo off signals as shown in the diagram below. The clamp
instruction auxiliary function should be executed only after the distribution end
signal(DEN) becomes 1.
SVF4 SVF3 SVF2 SVF1
G014
＃7 ＃6 ＃5 ＃4 ＃3 ＃2 ＃1 ＃0
