DA98A AC Servo Drive Unit
User Manual
（2） Fixation interval

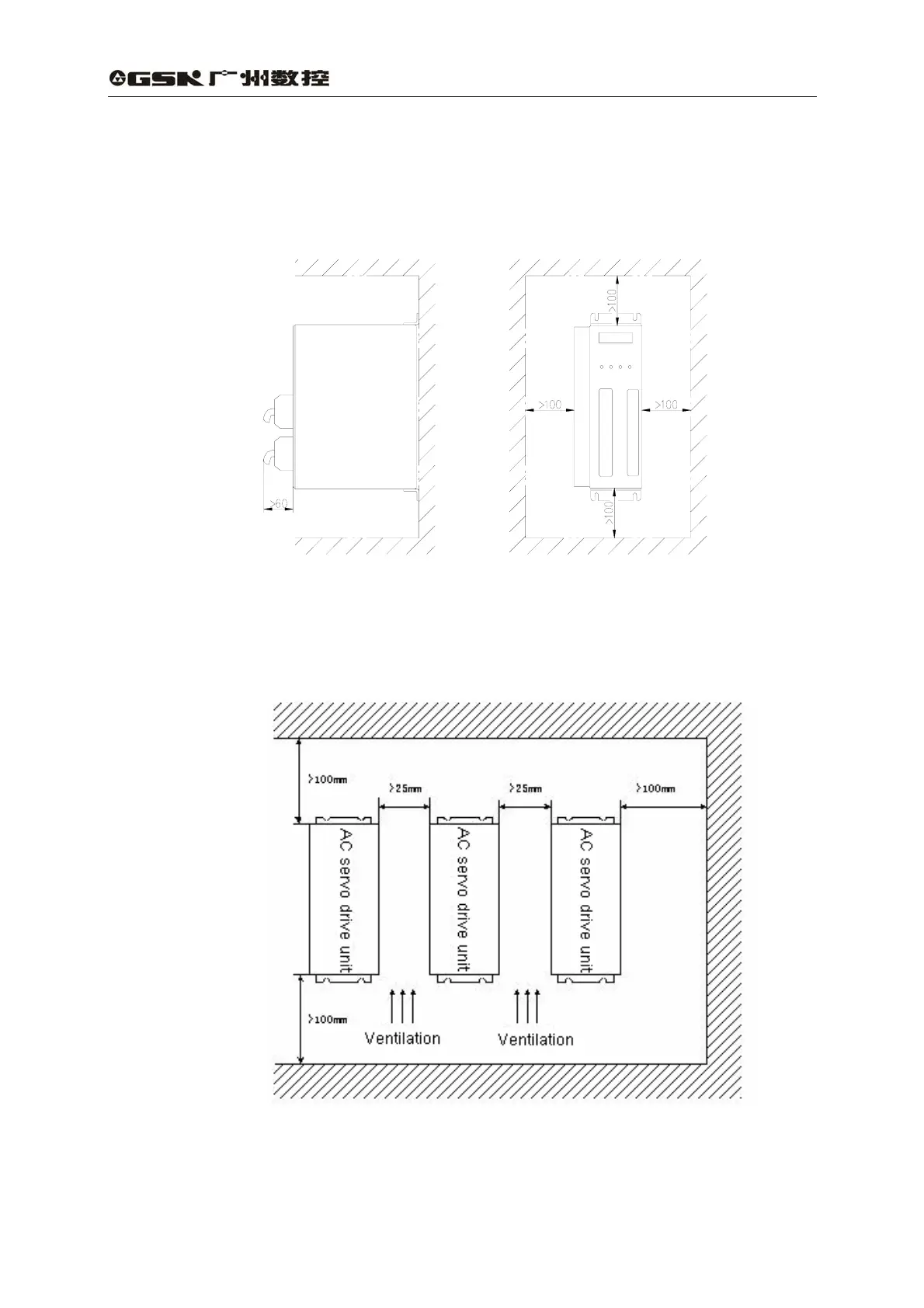

The fixation interval for single drive unit is shown in Fig. 2.3 and intervals for multiple
drive units are shown in Fig. 2.4. The interval for actual fixation should be as larger as
possible to get a good heat dissipation.
Fig. 2.3 Fixation interval for single drive unit
Fig. 2.4 Fixation intervals for multiple drive units
（3） Heat dissipation
There should be convective air blown to the drive unit radiator in the cabinet to prevent
the ambient temperature of drive unit from continuous rising.
