DA98A AC Servo Drive Unit
User Manual

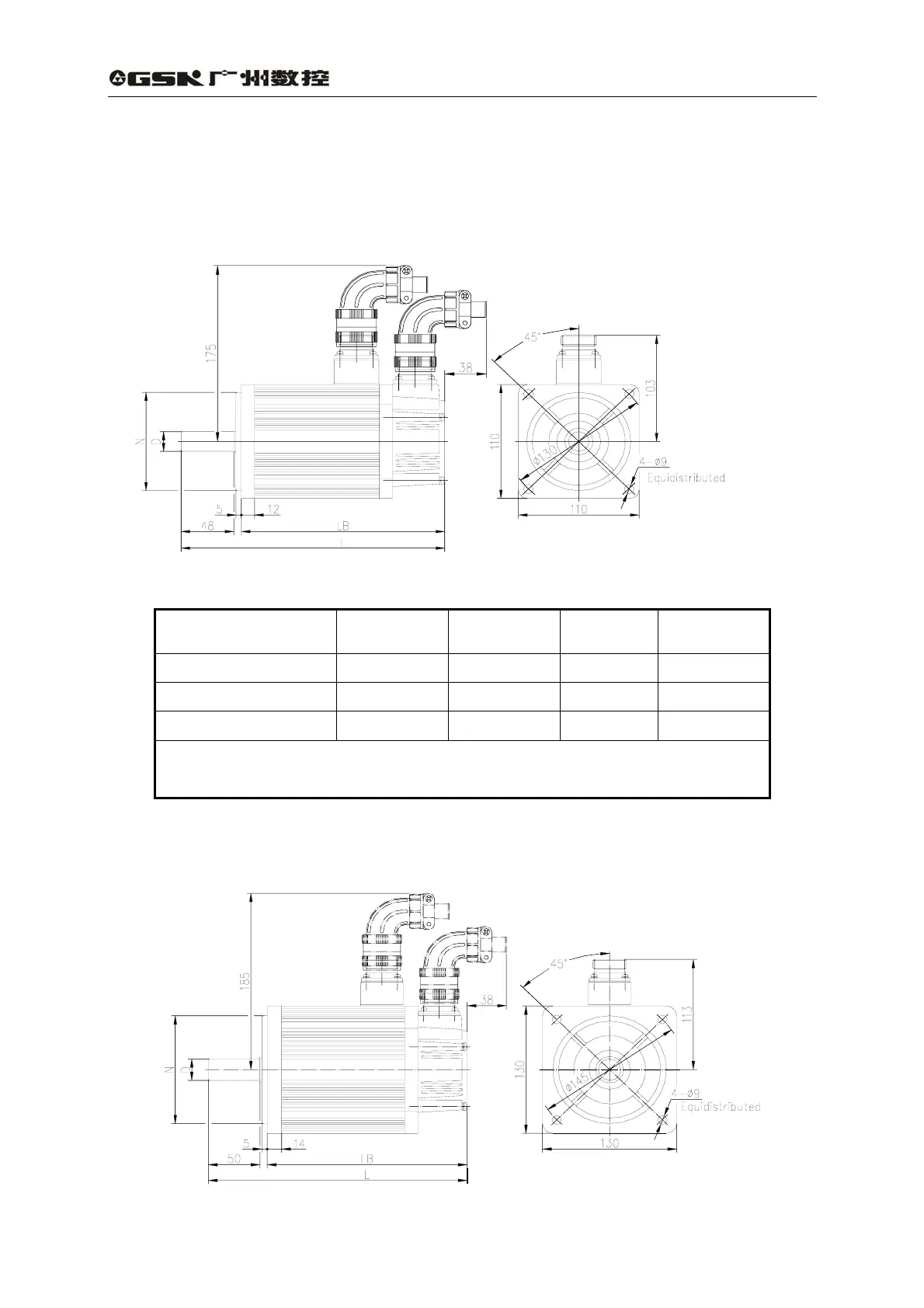

5） Motor outline and installation dimensions
(1) The outline and installation dimensions of 110SJT series motor are as following:
Specification D(mm) N(mm) LB(mm) L(mm)
110SJT—M020E φ19
0
-0.013
φ95
0
-0.035
156 (207) 211 (262)
110SJT—M040D φ19
0
-0.013
φ95
0
-0.035
186 (237) 241 (292)
110SJT—M060D φ19
0
-0.013
φ95
0
-0.035
212 (263) 267 (318)
Note: The values of LB, L in the brackets are the lengths of corresponding
motors with power-down brake.
(2) The outline and installation dimensions of 130SJT series motor are as following:
60
