DA98D User Manual
2
1.2 Arrival Examination
1) After the product arrives, please see to examine the following aspects:
（1） Whether the packing case is in good conditions, and whether the product is damaged
during transportation?
（2） Check nameplates of the servo drive unit and servo motor to confirm whether the
products received comply with the order.
（3） Check packing list to confirm whether the accessories are complete.
z Servo system shall not be installed when it is damaged or does not have complete parts.
z Servo drive unit must be used together with the servo motor whose performance matches
that of the former.
z If there is any doubt about the products received, please contact supplier or us.

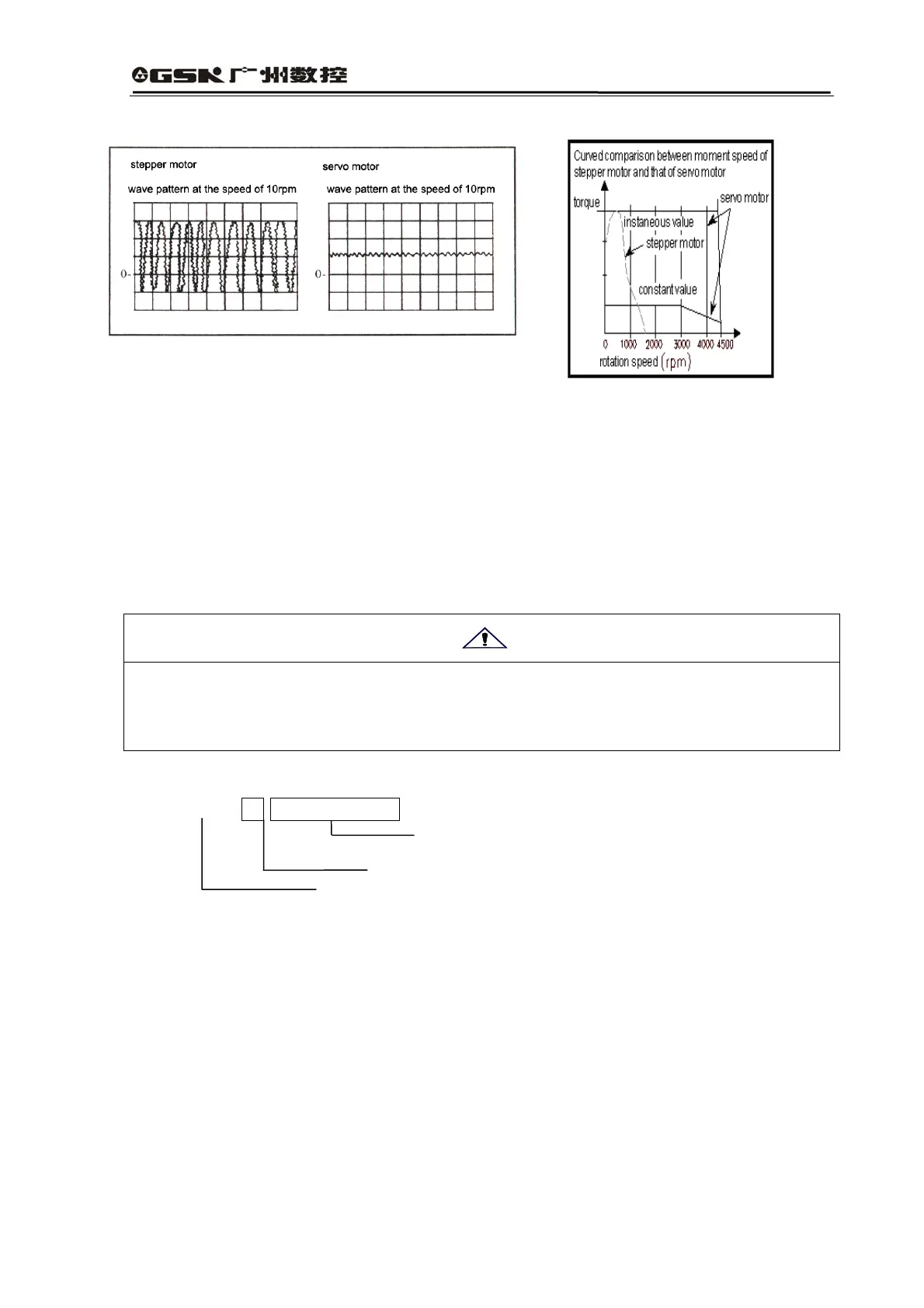

2) Model meaning:
a) Models of servo drive unit
DA98D-06-110SJT-M020E
Model matching servo motor (indicate GSK SJT series) 1※
Output power: two-digit (04, 06……23) correspond to 0.4~2.3KW 2※
Series Code
※1: It can be matched with other domestic or imported servo motor. If there is no parameter in
the drive unit, it can only be matched with SJT and ST series of servo motors.
※2: Small power (1.5KW or less) means standard configuration; medium power (more than
1.5KW but less than 1.6KW) means thicker radiator.
Notes: when the product is delivered from the factory, the product model has been
completed in the above column. Please check them with the product
nameplate.
b) Models of servo motor
DA98D AC servo drive unit can be matched with many domestic or exported servo motors,
which is at your option. Chapter Eight of this manual will provide information about SJT
Attention
