6.2 Ways of Monitoring
Select “dP-” In the first layer and press down , then you will enter the ways of monitoring, in
which there are 21 display states. Use
and to select the display mode, then press down
to enter the specific display state.

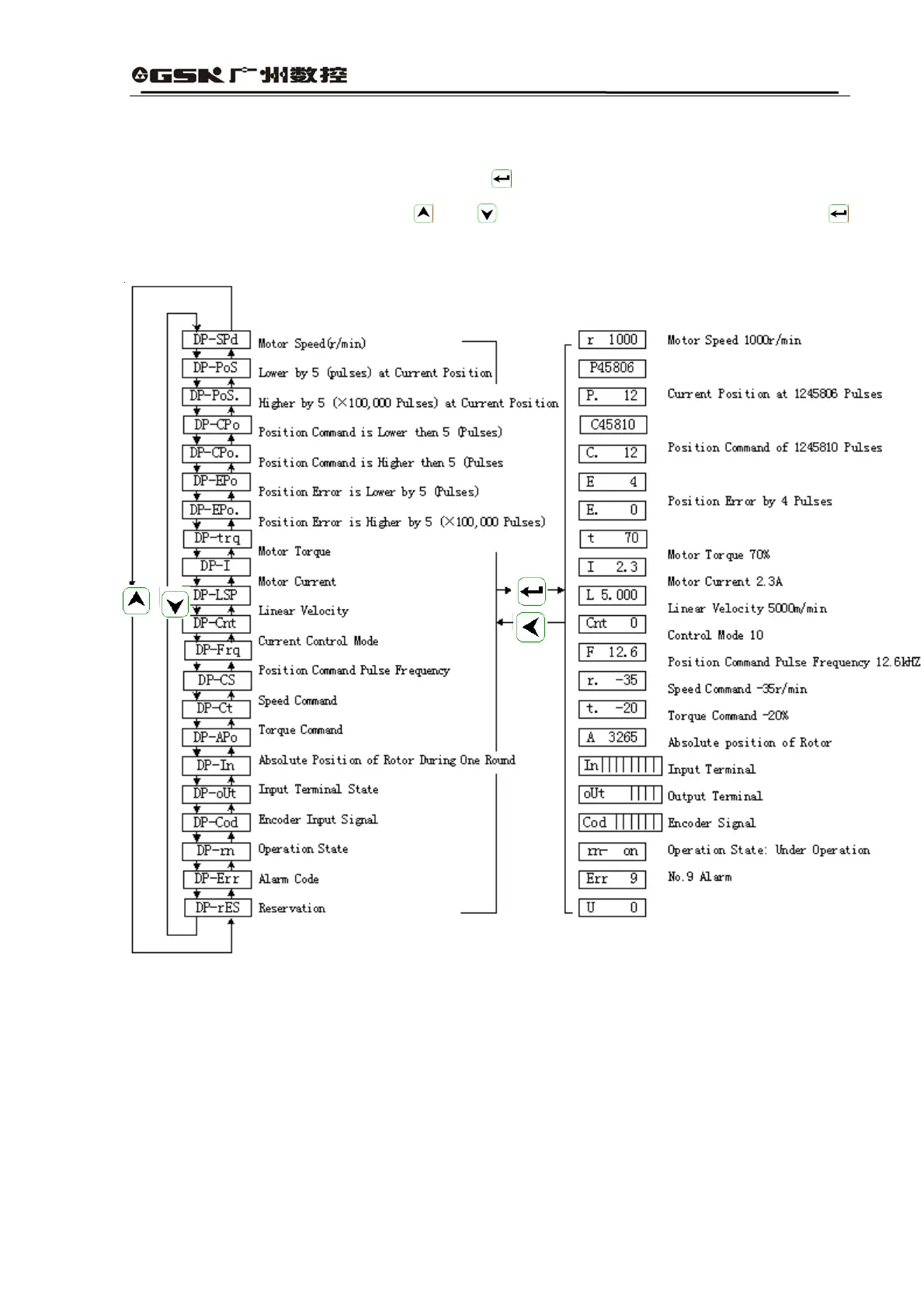

Fig. 6.2 Operation Chart for Ways of Monitoring
Note 1： Position and command pulse are both values multiplied by input electronic
gear.
Note 2： Pulse unit is the internal pulse unit of the system, where it means 100,000
pulses/round. The pulse is expressed by value higher by 5 plus value lower by
5. The calculation method is: Pulse=(value higher by 5)×100,000 + value lower
To Next Page
