Assembling the mudguards
Front mudguard
(shorter length mudguard)
The mudguards are an optional accessory available through www.gtech.co.uk

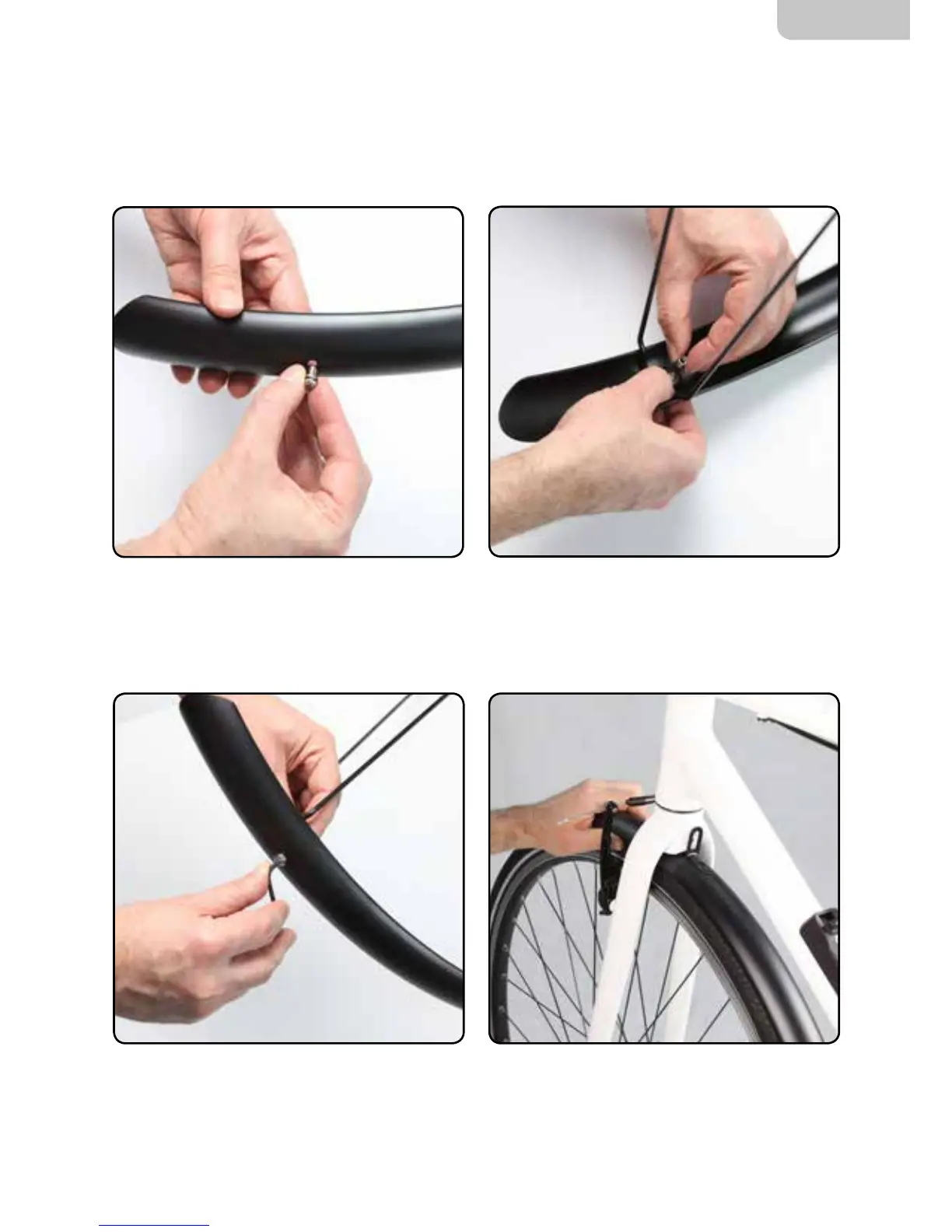

Insert a round head screw through the hole in the
front mudguard.
Place the mudguard stay over the screw.
Note that the front mudguard stay is slightly
longer than the rear. Fit a washer and nut by
turning clockwise.
Place the front mudguard over the wheel. The
xing bracket is positioned up to the hole at the
back of the front forks.
Hold the nut with the 8mm spanner to stop it
rotating and tighten the screw clockwise using
the 3mm allen key provided.
