Make sure that the belt tension adjuster bolts are
horizontal and facing the rear of the bike. The
drive belt should be resting on the outside of
the rear fork.

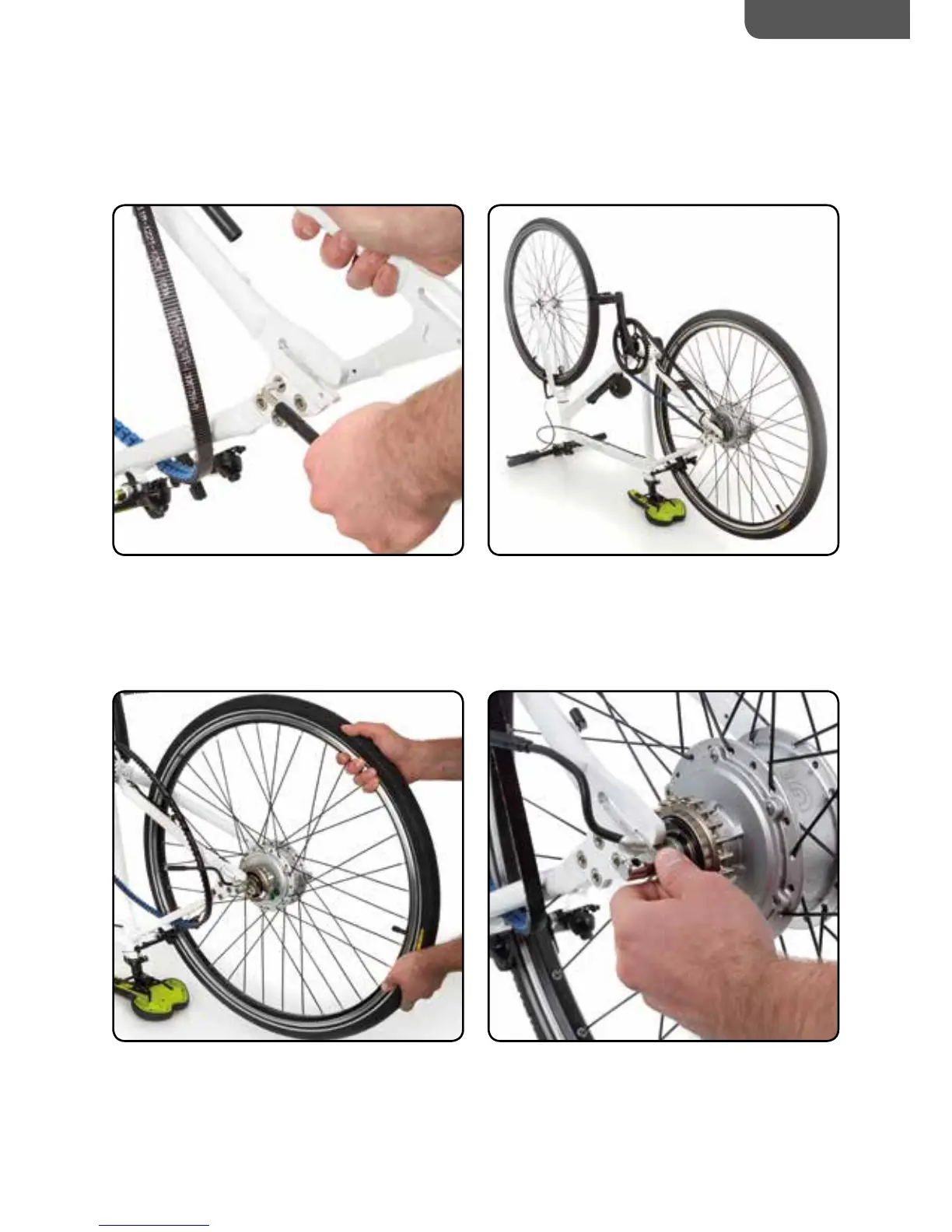

Attaching the rear wheel
Slot the rear sprocket, cable end rst, into the
rear wheel fork, making sure that it is on the
same side as the pedal sprocket.
Place the dropout plate back onto the bike
and align with the holes. Insert all four nuts and
tighten them securely.
Place the frame upside down on a at surface,
resting on the saddle and the handlebars. You
may need to put something down on the surface
to stop your bike frame from getting scratched.
