Fully tighten both pedals from behind the crank,
using the 6mm allen key provided.
Make sure you rotate the pedal by the hexagonal
section, not the pedal itself, which will just spin
free.

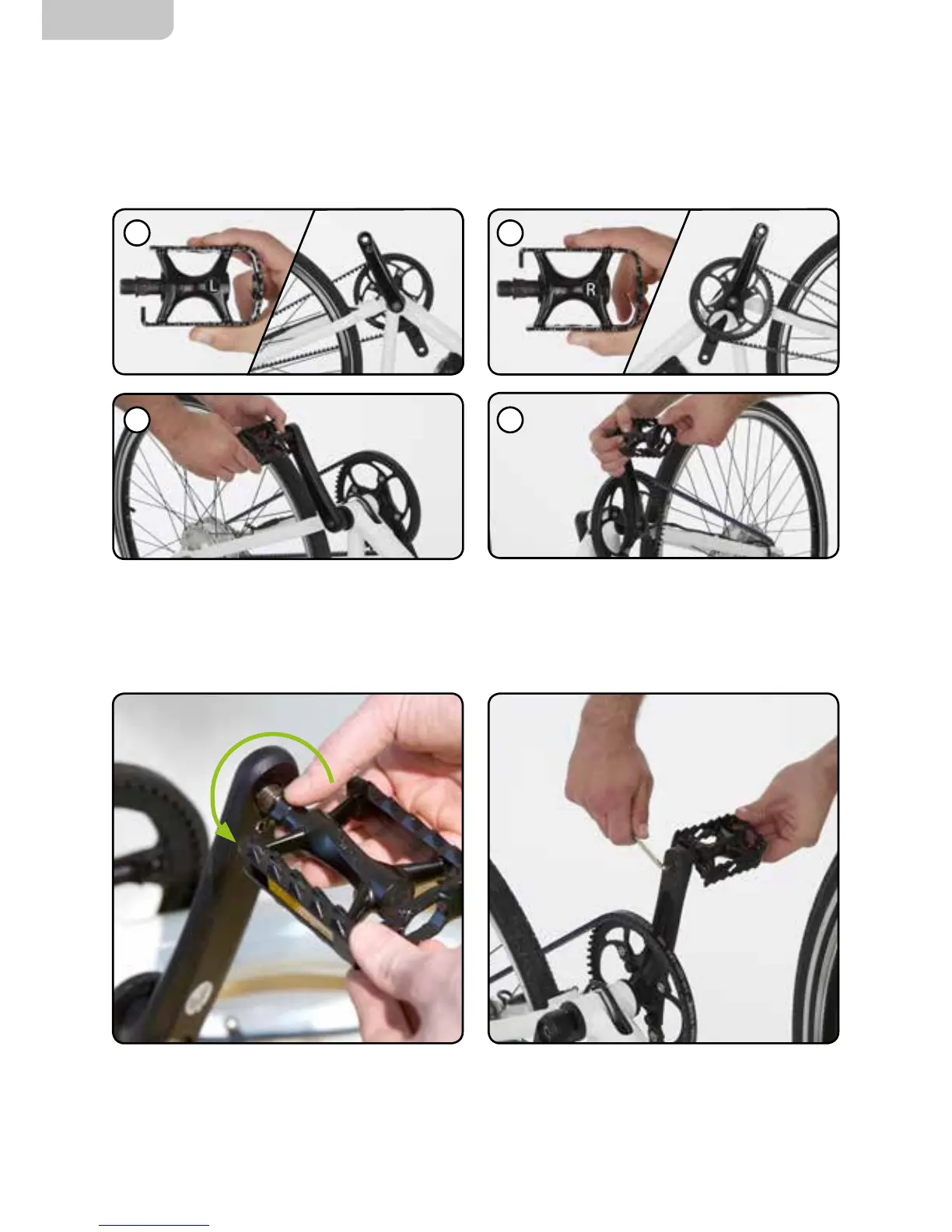

Fitting the pedals
Match the pedal marked L with the crank marked
L, located on the opposite side to the drive belt.
Carefully align the pedal into the crank hole.
Poor alignment will damage the screw thread.
Tighten by using your ngers to turn the pedal
spindle anti-clockwise.
Match the pedal marked R with the crank marked
R, located on the opposite side to the drive belt.
Carefully align the pedal into the crank hole.
Poor alignment will damage the screw thread.
Tighten by using your ngers to turn the pedal
spindle clockwise.
2 2
1 1
