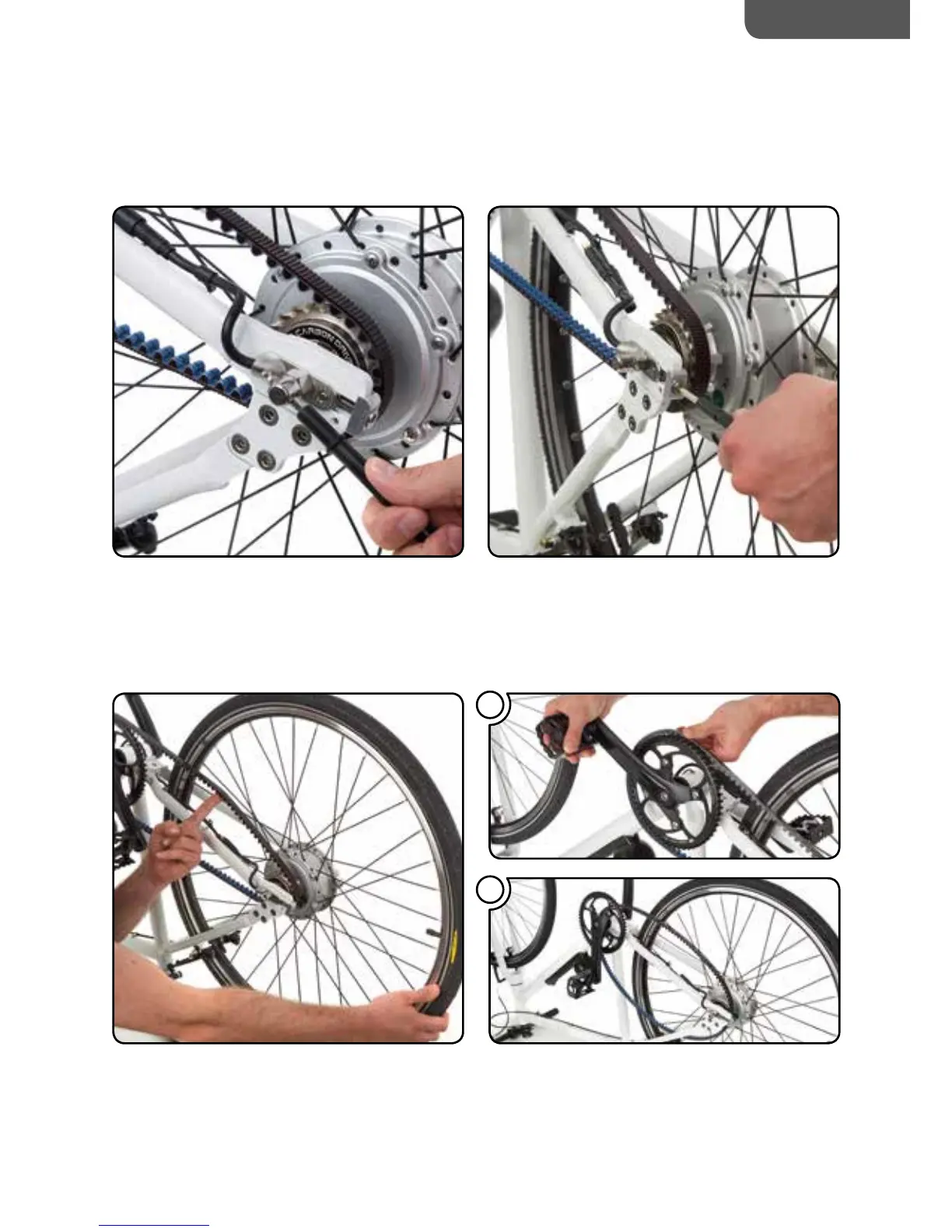

Loosen the bolts on either side of the wheel by
placing the tool through them and turning
anti-clockwise. If it’s too tight use a 15mm
spanner or socket wrench. Do not remove the
bolts.
Locate both of the belt tension adjusters at the
rear forks and, using the tool provided, turn them
anti-clockwise to loosen. Make sure you hold
onto the rear wheel whilst doing this.
To feed the drive belt off the pedal sprocket:
1. Rotate the pedals slowly.
2. Feed the slackened belt off the pedal sprocket
towards the frame.
Slide the wheel forwards as far as you can
towards the frame to loosen the belt.
1
2
