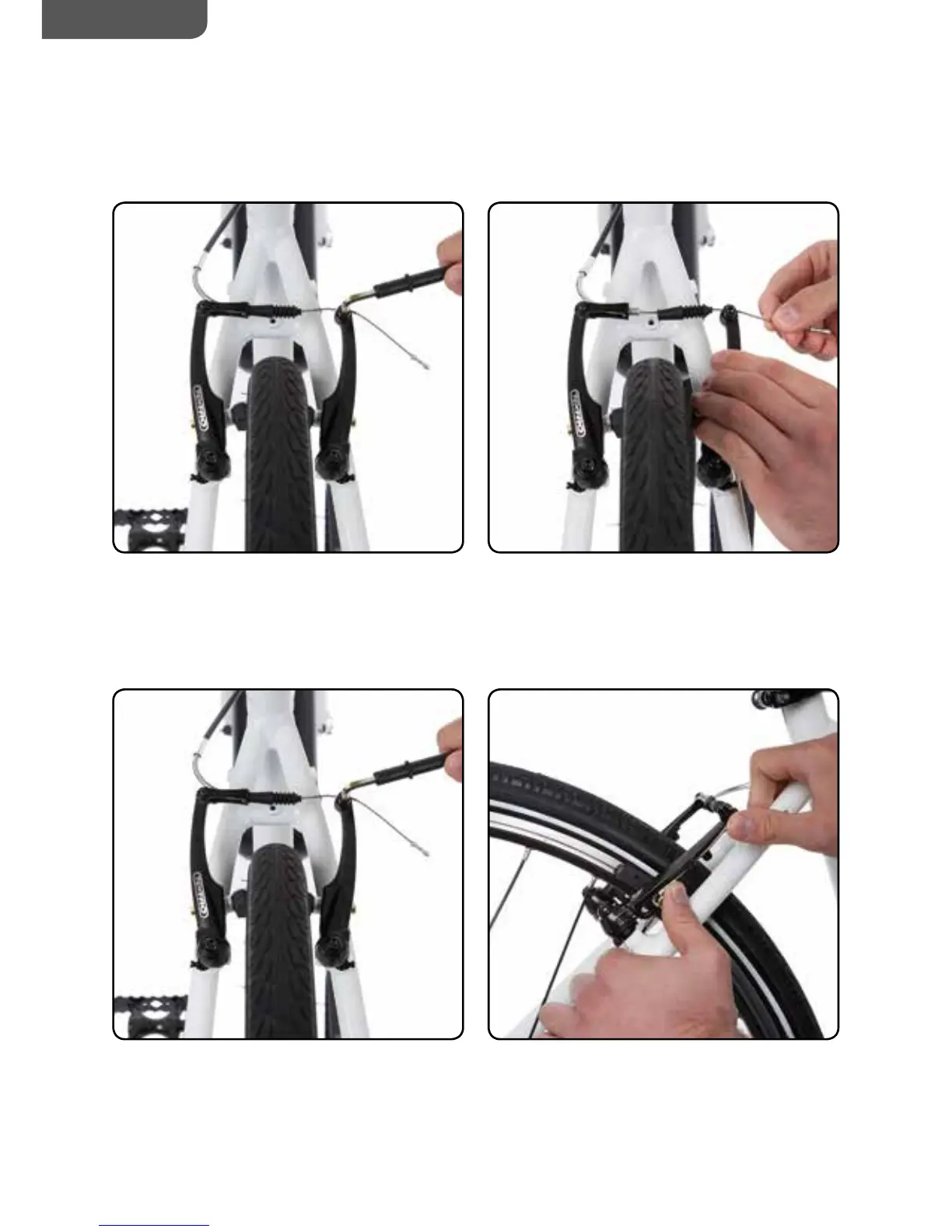

Tighten the cable clamp to secure the cable. If there is now excess brake cable sticking out,
you will need to tuck this behind the brake arm.
Hook the excess into the slot located on the rear
of the brake arm, so that it is secure.
Using the Gtech tool provided, loosen the cable
clamp screw until the brake cable is free to move
through the clamp.
To tighten the brake cable, pull the brake cable
through the clamp a little. If you need to loosen
the brake cable, push the brake cable through
the clamp a little.
If necessary further adjustment can be made at the brake arms.
Refer to pages 25 to 29 for more information on adjusting the brake cable and brake pads.
