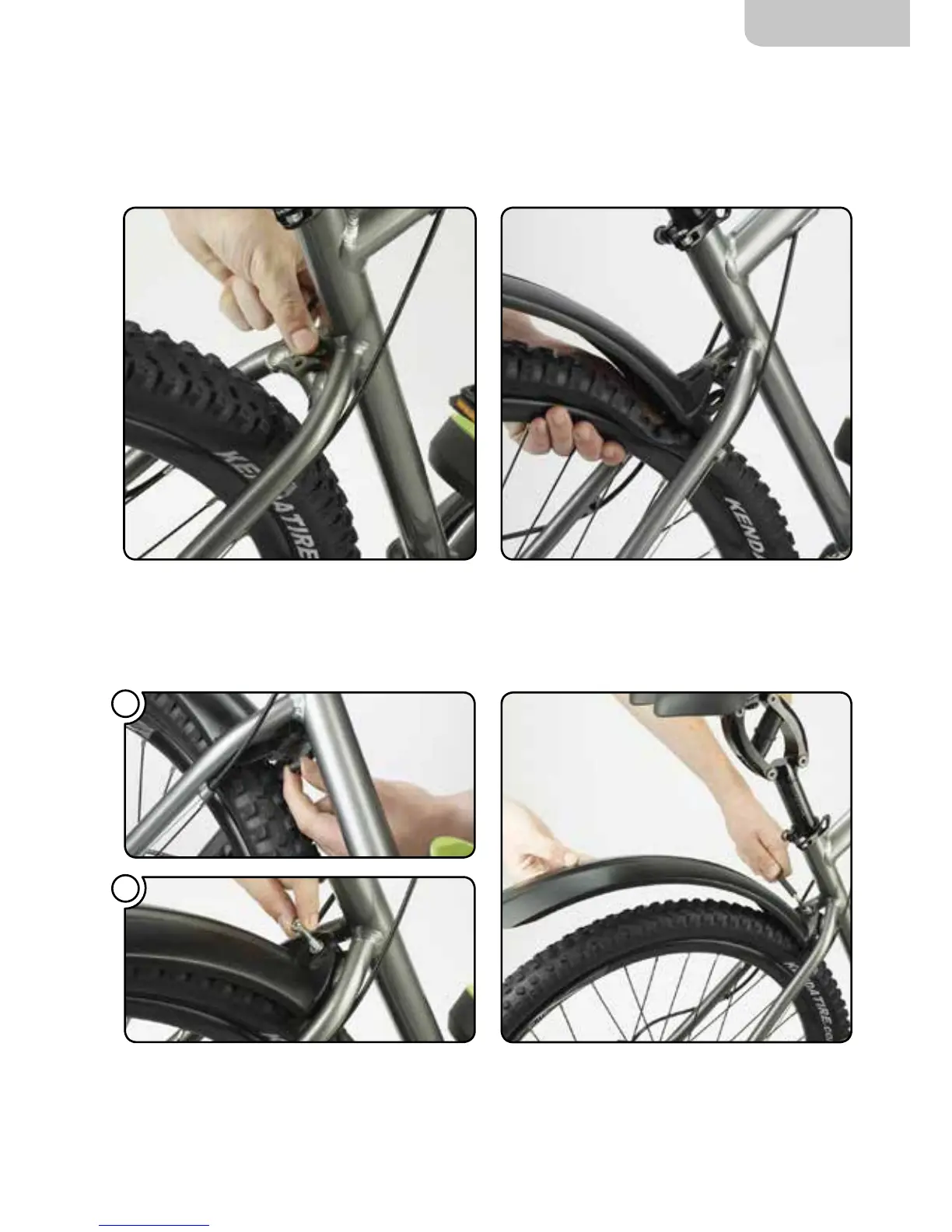

Attaching the rear mudguard
Locate the tube spacer and clip it onto the seat
stay brace.
Hook the mudguard underneath the brace.
You may need to deate the tyre rst.
Whilst holding the mudguard away from the
wheel, place the gtech tool into the bolt,
and turn it clockwise to tighten the mudguard
until it can no longer rotate.
1. Push the nut into the bottom recess.
2. Feed the bolt through the tube spacer and
mudguard.
1
2
