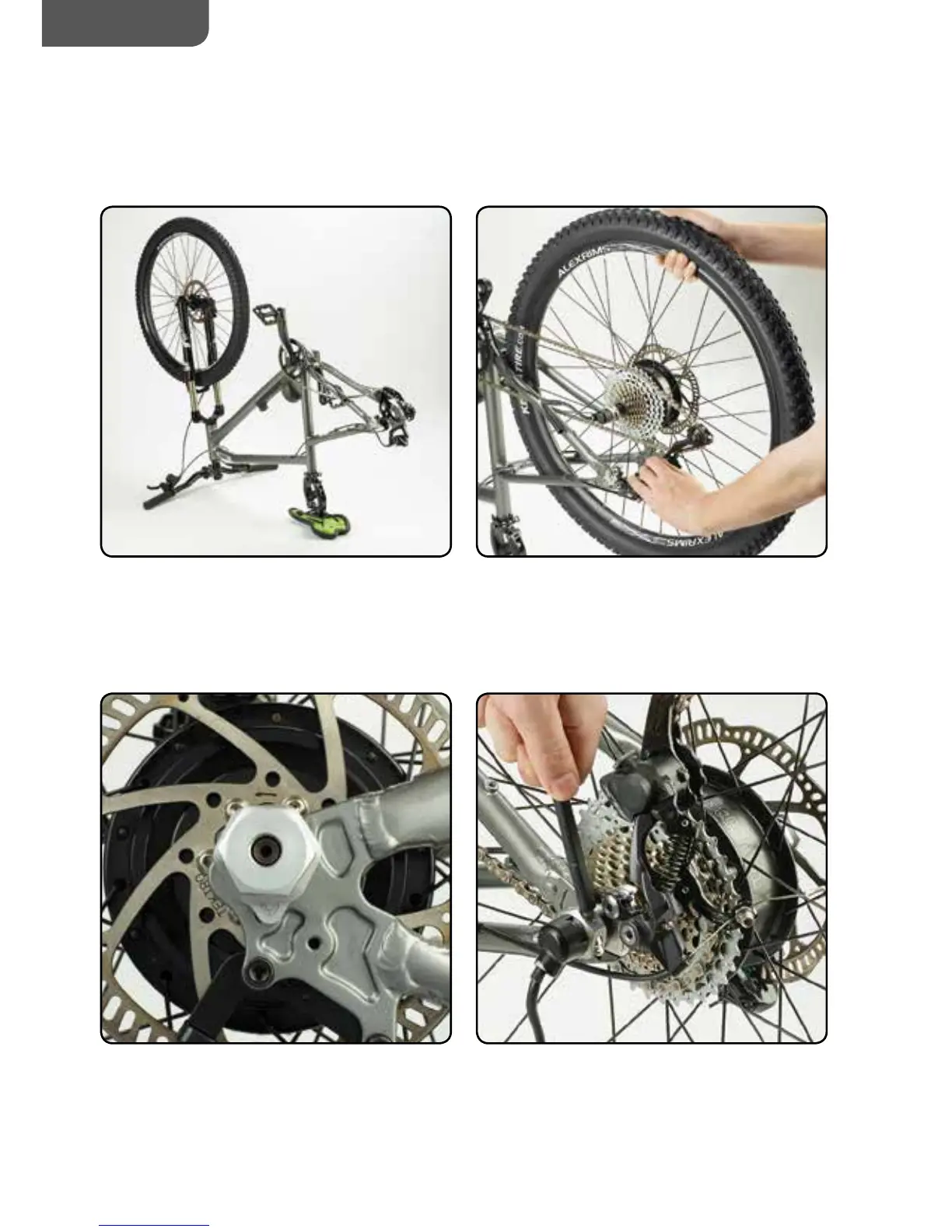

Place the frame upside down on a at surface, resting on the saddle and the handlebars. You may
need to put something down on the surface to stop your bike frame from getting scratched.
Lift the chain and pull back the derailleur and
align the wheel.
Attaching the rear wheel
Make sure the disk falls into the caliper.
Make sure that the arrows on the Anti-Rotation
Spacers are facing down and that the wheel falls
into the drop out.
Place the frame upside down on a soft, at
surface, resting on the saddle and the handlebars.
Re tighten the main wheel bolts.
The recommended tightening torque is 40Nm.
