Basic Installation (Cont.)
Coax Connection

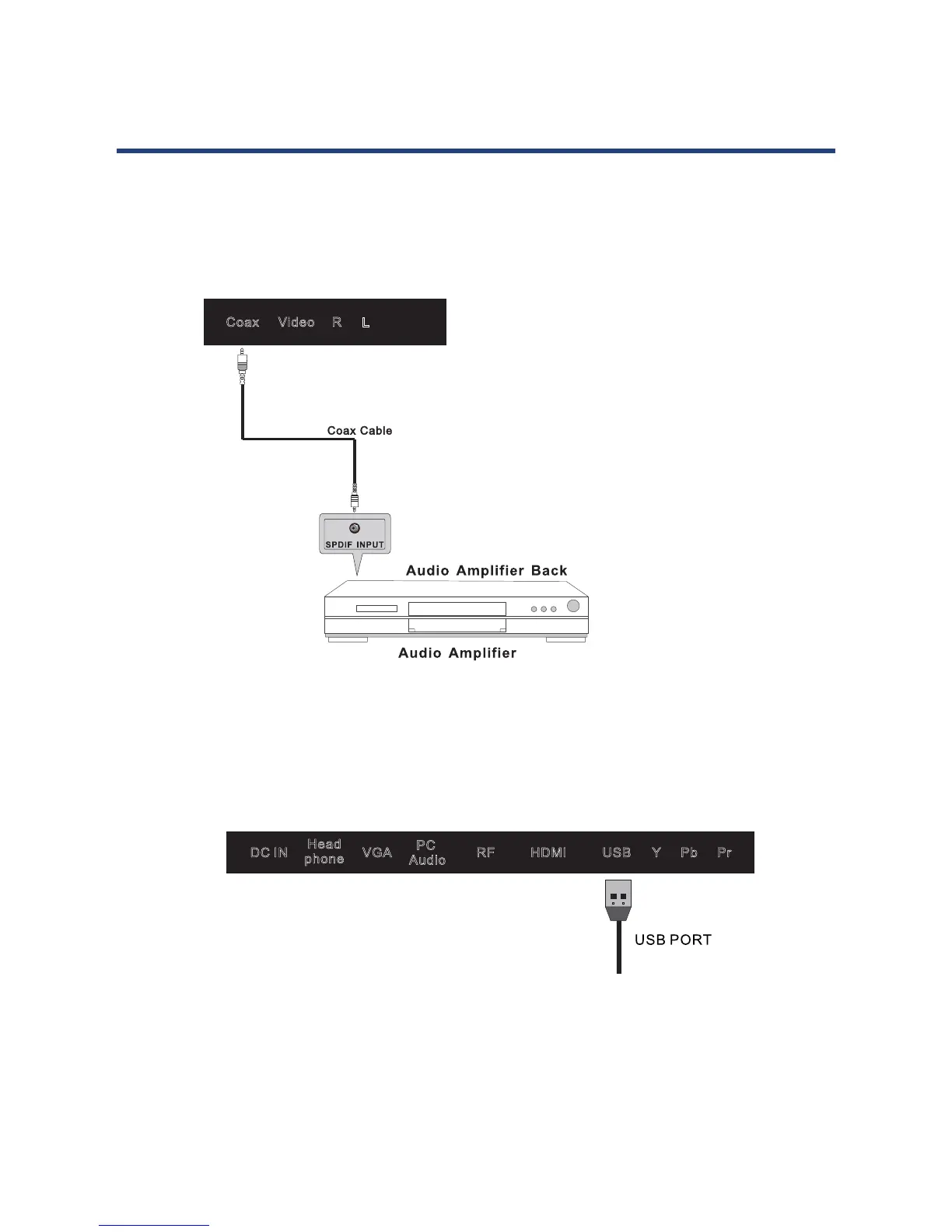

Connect the Coaxial output of the TV to the Coaxial (S/PDIF) input on the amplifier. Your
amplifier must have the corresponding decoding functions to decode the signal coming
from the TV.
15
Basic Installation (Cont.)
Coax Connection
Connect the Coaxial output of the TV to the Coaxial (S/PDIF) input on the amplifier. Your
amplifier must have the corresponding decoding functions to decode the signal coming
from the TV.
Video
R LCoax
USB Connection
A portable USB device can be connected to the USB socket.
