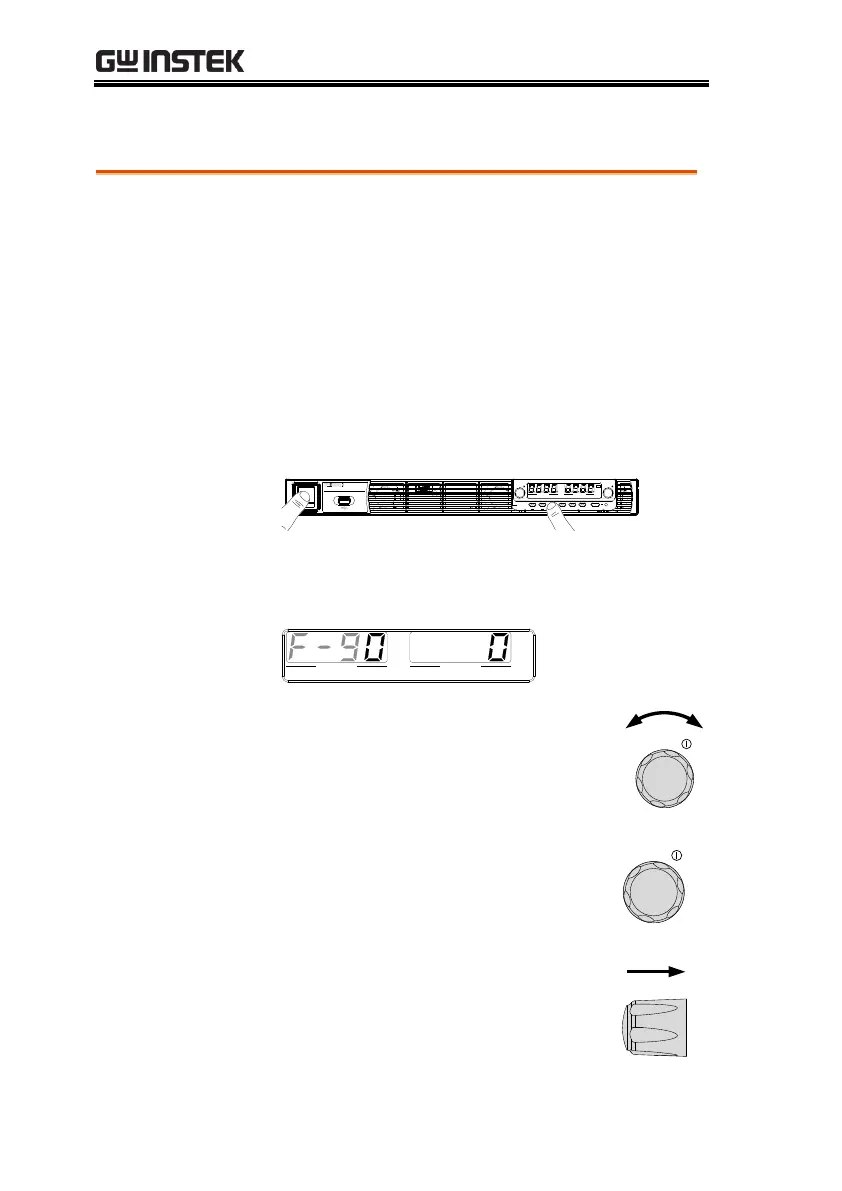

Setting Power On Configuration Settings
Background
The Power On Configuration settings can only be
changed during power up to prevent the
configuration settings being inadvertently
changed.
 Ensure the load is not connected.
 Ensure the power supply is off.
Steps
1. Hold the Function key whilst turning the
power on.
Lock/Local PROT Function Test Set
Output
Unlock ALM_CLR M 1 M 2 M 3
Shift
: Long Push
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C C
A
C V
V
VOLTAGE CURRENT
PSU 40-38
DC Power Supply
0 - 40V / 0 - 38A
Voltage Current
2. The display will show F-90 on the left and the
configuration setting for F-90 on the right.
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
3. Rotate the Voltage knob to change
the F setting.
Voltage
Range
F-90 ~ F-98
4. Use the Current knob to set the
parameter for the chosen F setting.
Current
Press the Voltage knob to save the
configuration setting. ConF will be
displayed when it is configuring.
Voltage
