7.4.2 Transport
Transport to upper or lower floors and through narrow doorways:
With the standard models (sizes with running surface 150/50 cm, 170/65 cm, 190/65 cm), the left handrail is easily
removed (unless it is an adjustable handrail), as there are no cables inside. The handrail at the right can be unscrewed
and turned 90° to the left ("lay it on the running belt"). Then the handrail is to be temporarily fixed with a special
transport fuse construction (available at h/p/cosmos) in order to avoid damage during transport.
Provided the right handrail is flat and temporarily fixed on
the running surface, the whole machine can be turned 90°
to the right to an upright position. This reduces the width of
the machine so that it can be easily manoeuvred through
narrow doors or windows.

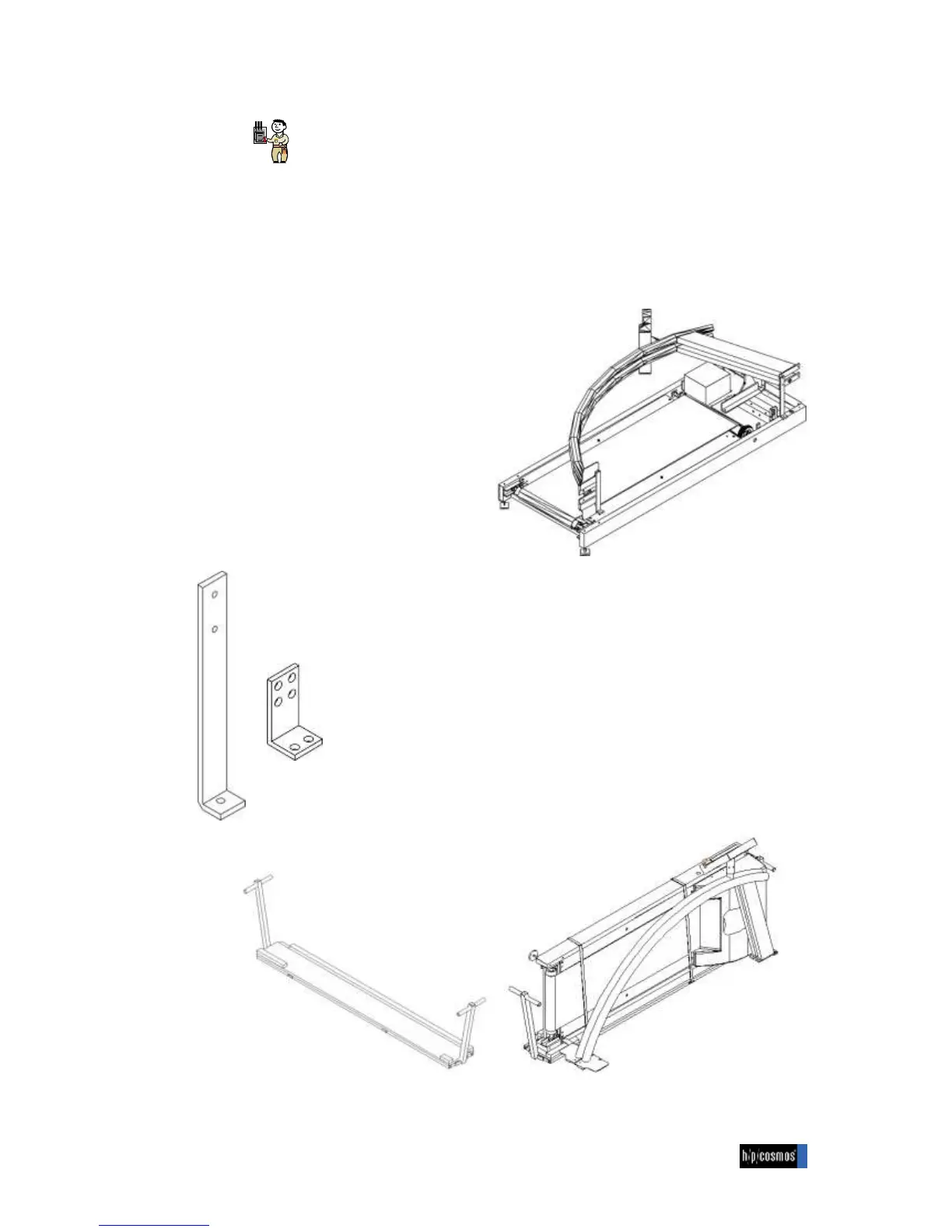

A special transport tool is available to move the machine
through aisles. (See below: available on rental basis from
h/p/cosmos).
Transport angle construction running surface 150/50 cm [cos10971]
Transport angle construction running surfaces 170 and 190/65 cm [cos10314]
Transport angle construction running surface 200 ... 300/75 ... 125 cm [cos14090]
Transport tool for construction size running surface 150/50 cm [cos10972]
Transport tool for construction size running surfaces 170 and 190/65 cm [cos13794]
