9
Available installation methods
All models Mount the switch on a workbench Mounting the switch on a workbench
Installing the switch in a 19-inch rack
About mounting brackets
The S1600V2 series switches that this installation method come with mounting brackets, as shown
in Figure 2
.

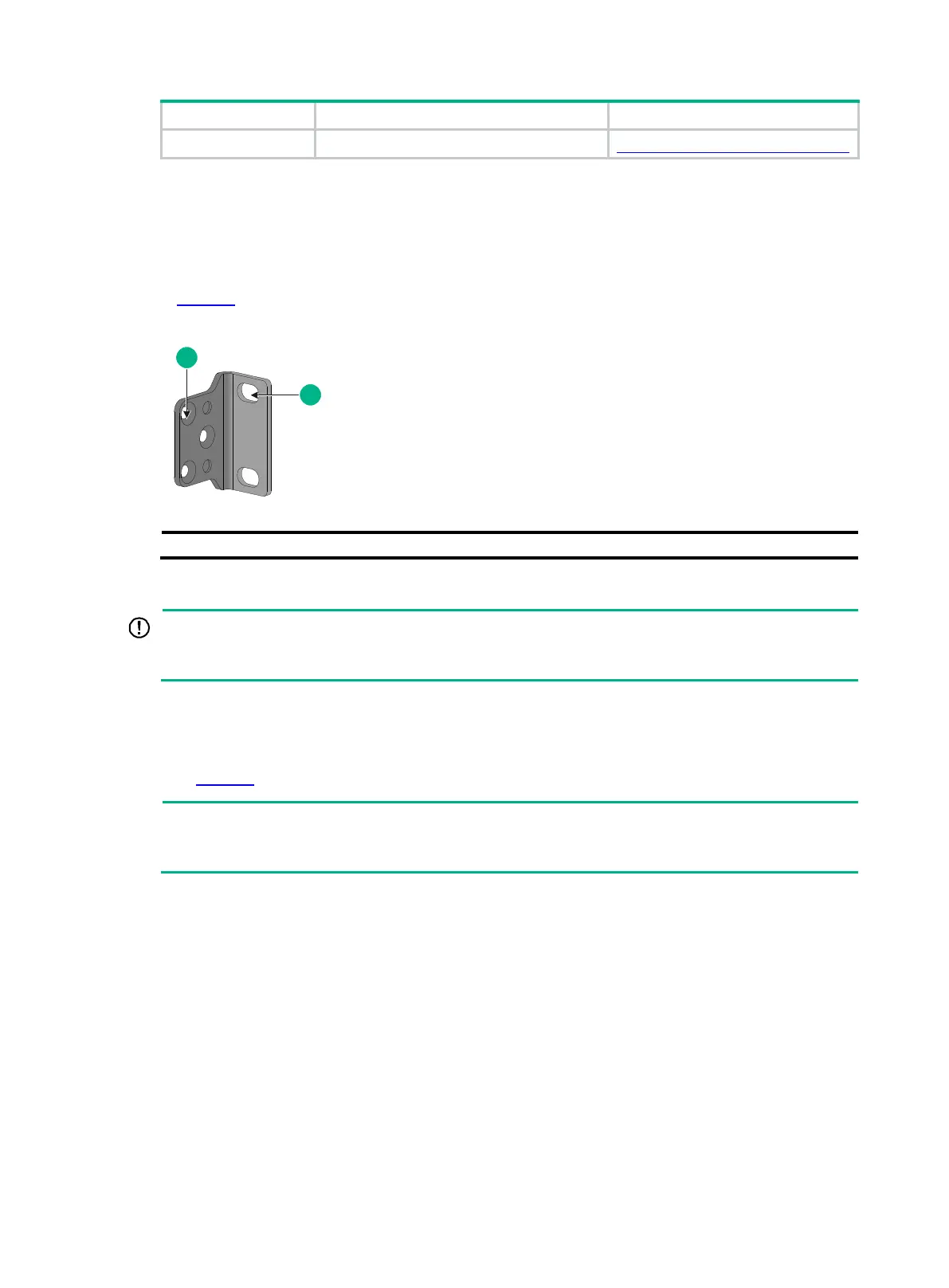

Figure 2 Mounting bracket
(1) Screw hole for attaching the bracket to the switch
(2) Screw hole for attaching the bracket to the rack
Attaching the mounting brackets to the switch
M4 screws are used for attaching the mounting brackets to the
switch. As a best practice, use a
torque of 12 kgf-cm (1.18 Nm) to fasten the M4 screws..
To attach the mounting brackets to the switch:
1. Align the mounting bracket installation holes with the screw holes in the chassis.
2. Fasten the M4 screws (provided) to secure the mounting bracket to the switch, as shown in
Figure 3
.
attachment methods for the mounting bracket are similar. This example attaches only one
mounting bracket to one side of the switch.
