To connecting a power adapter:
1. Connect the power adapter to an AC power cord. (This step is only applicable to a type-2
power adapter.)
2. Insert the circular plug of the power adapter into the power adapter receptacle on the switch.
3. Connect the other end of the power adapter to an external AC power source.

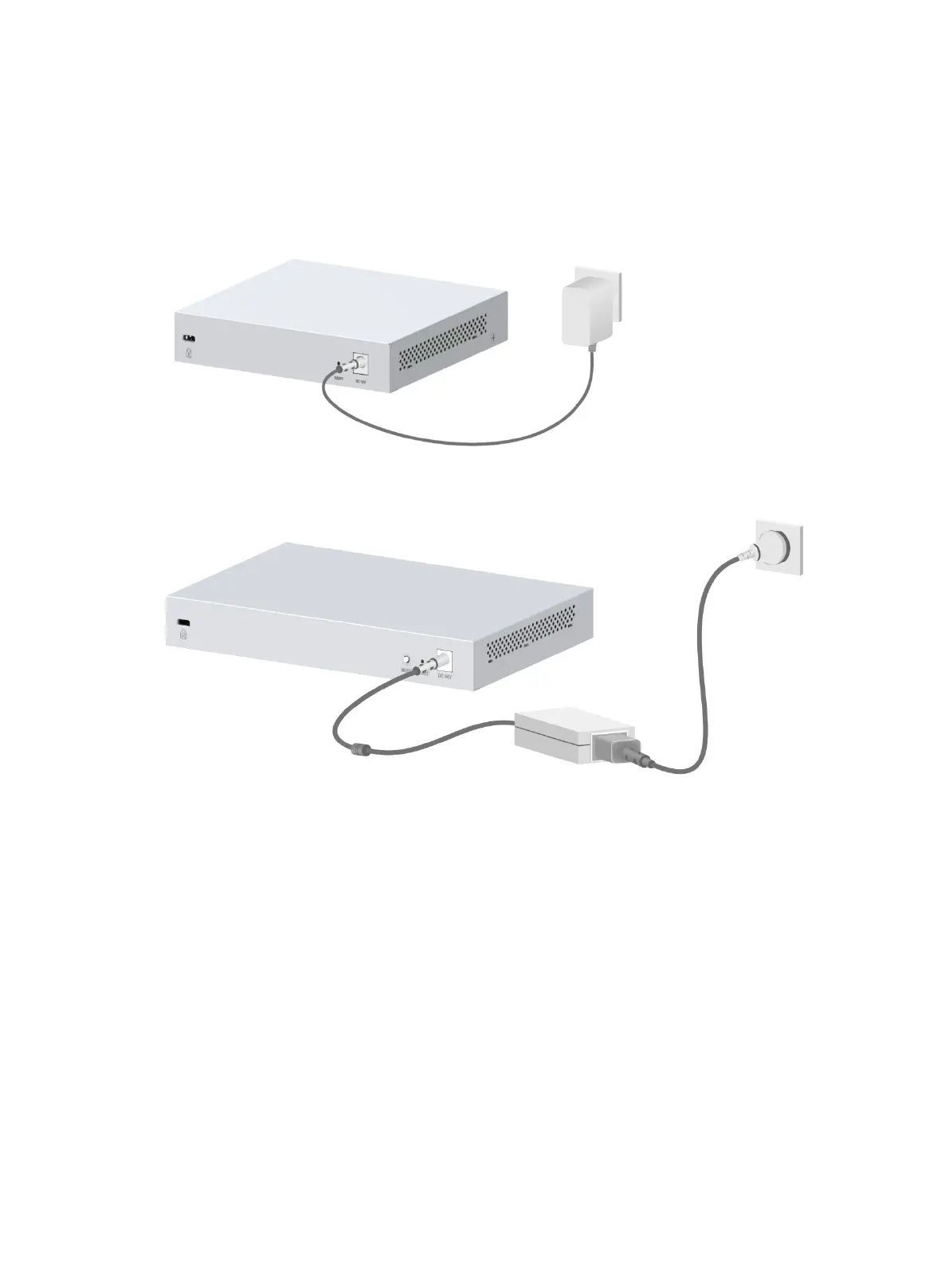

Figure 15 Connecting a type-1 power adapter
Figure 16 Connecting a type-2 power adapter
Verifying the installation
After you complete the installation, verify the following information:
There is enough space around the switch for heat dissipation.
The rack or workbench is stable.
The grounding cable is connected correctly.
The power source is as required by the switch.
The power cords are correctly connected.
If part of the network cable for a port is routed outdoors, verify that a network port lightning
protector is used for the port. If a power line is routed from outdoors, verify that a surge
protected power strip is used for the switch.
Check after power-on
Examine the LEDs on the switch after you power on the switch to verify that the switch is operating
correctly.
