15

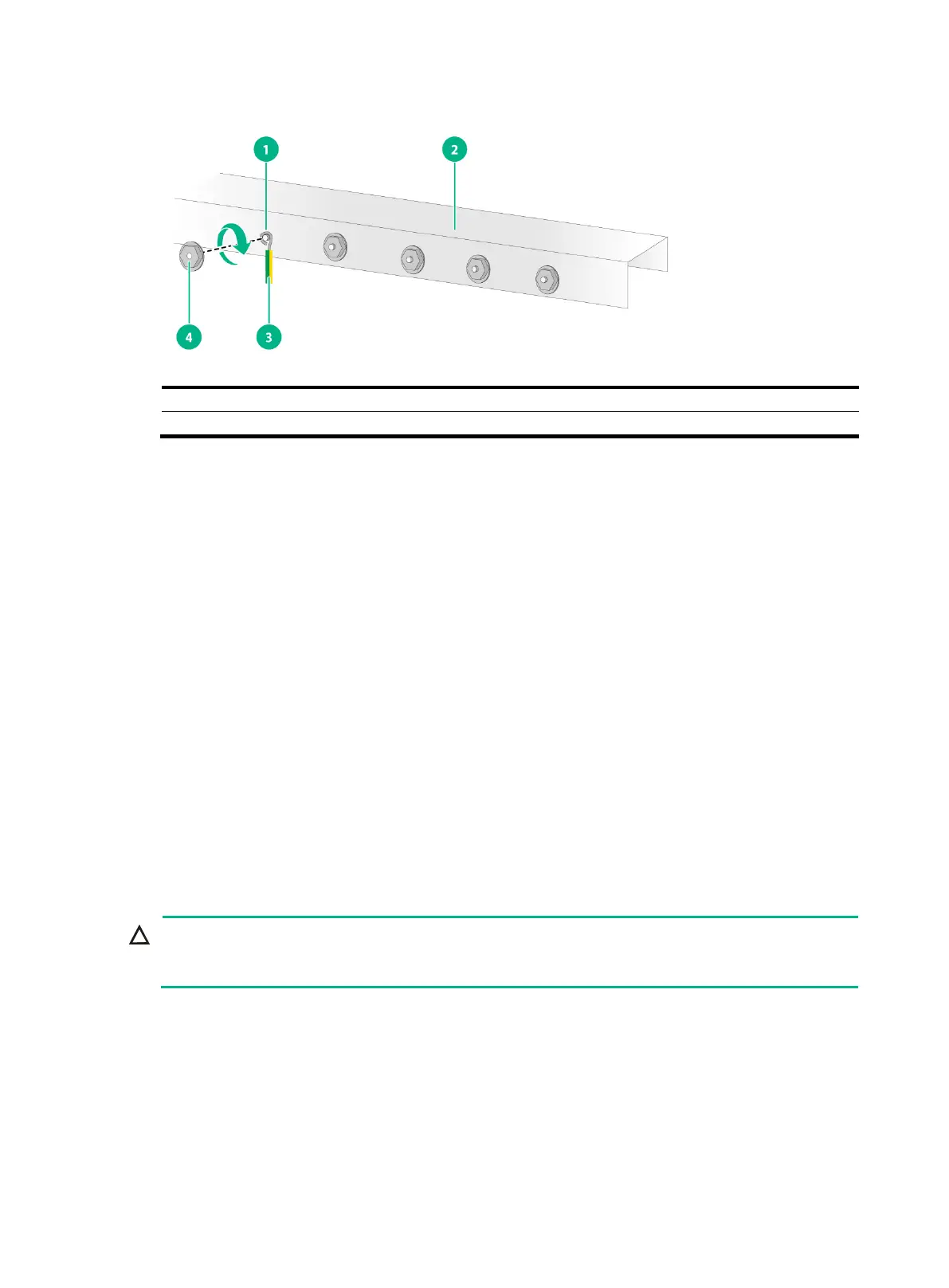

Figure 12 Connecting the grounding cable to a grounding strip
(1) Grounding post
(2) Grounding strip
(3) Grounding cable
(4) Hex nut
Verifying the connection after grounding the switch
If you ground the switch by using a grounding strip, perform the following tasks:
a. Use a multimeter to measure the resistance between the switch grounding terminal and
grounding point, and make sure the resistance is less than 0.1 ohms.
b. Use a grounding resistance tester to measure the grounding resistance of the grounding
strip, and make sure the grounding resistance is less than 1 ohm.
If you ground the switch by using a grounding conductor buried in the earth ground, perform the
following tasks:
a. Use a multimeter to measure the resistance between the switch grounding terminal and
grounding point, and make sure the resistance is less than 0.1 ohms.
b. Use a grounding resistance tester to measure the grounding resistance of the angle iron in
the ground, and make sure the grounding resistance is less than 10 ohms. For locations
with high soil resistivity, sprinkle some resistance reducer to reduce soil resistivity or replace
soil around the grounding strip with soil with lower resistance.
For information about resistance measurement, see H3C Network Devices Lightning Protection
Guide.
Connecting power cords
CAUTION:
Provide a circuit breaker for each power cord. Before connecting the power cord, make sure the
circuit breaker on the power cord is turned off.
Check before power-on
Before connecting the power cord, make sure the AC source is properly earth grounded and that the
earth ground resistance is less than 0.1 ohms.
