Connecting an AC power cord for an F1020, F1030, F1050, or F1060 firewall
1. Connect the connector of the AC power cord to the target AC power receptacle on the rear
panel of the chassis. Then use a power cord retainer clip (see Figure 25) or a
cable tie
(see Figure 26) to s
ecure the power cord.
2. Connect the other end of the power cord to an AC power source.

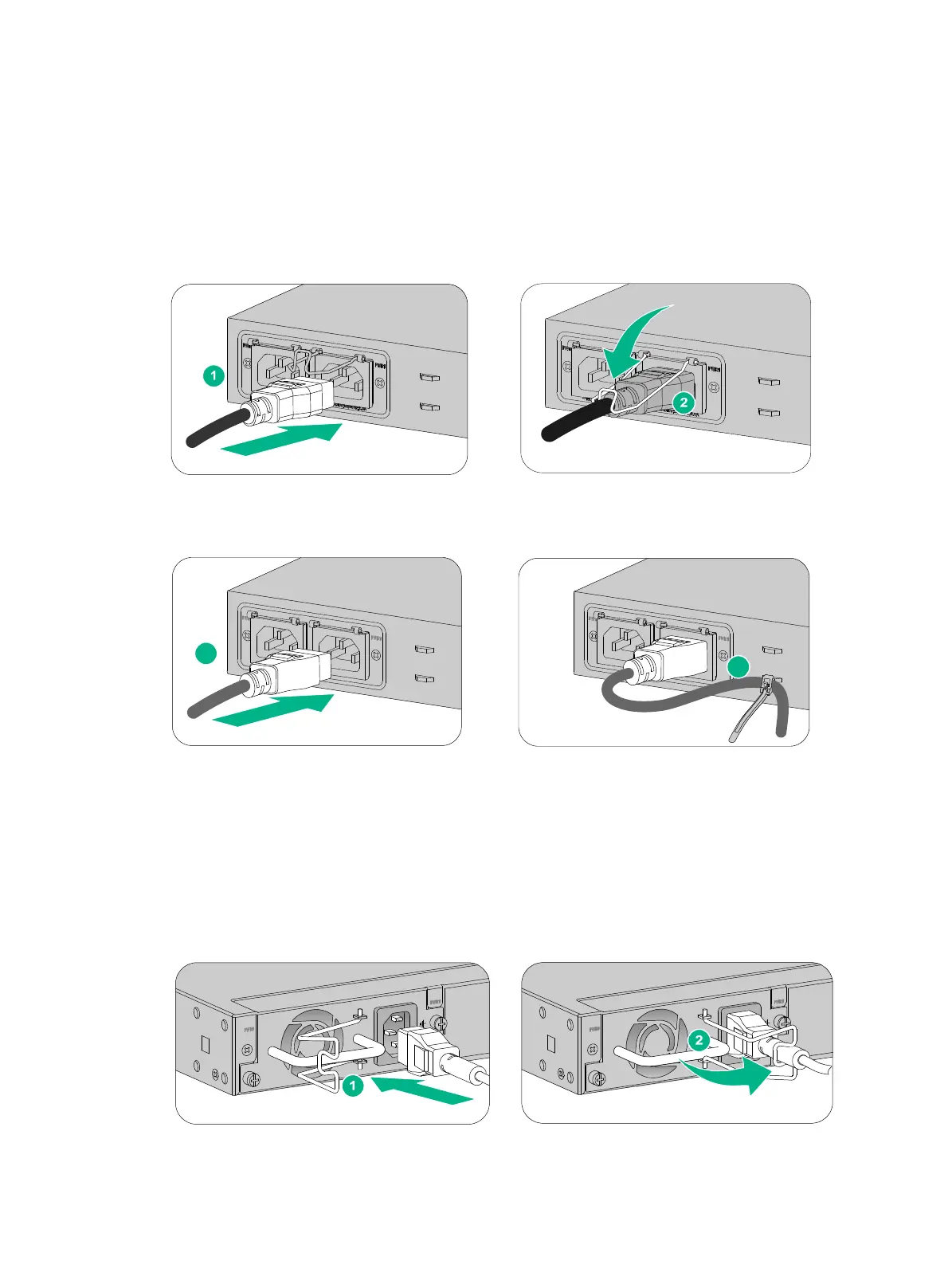

Figure 25 Connecting an AC power cord (using a power cord retainer clip to secure the
power cord)
Figure 26 Connecting an AC power cord (using a cable tie to secure the power cord)
Connecting an AC power cord for an F1070 or F1080 firewall
1. Connect the connector of the AC power cord to the AC power receptacle on the rear panel of
the chassis. Then use a power cord retainer clip (see Figure 27) o
r a cable tie (see Figure 28) to
secure the power cord.
2. Connect the other end of the power cord to an AC power source.
Figure 27 Connecting an AC power cord (using a power cord retainer clip to secure the
power cord)
