1. Use the mounting brackets to mark the cage nut installation holes on the front rack post.

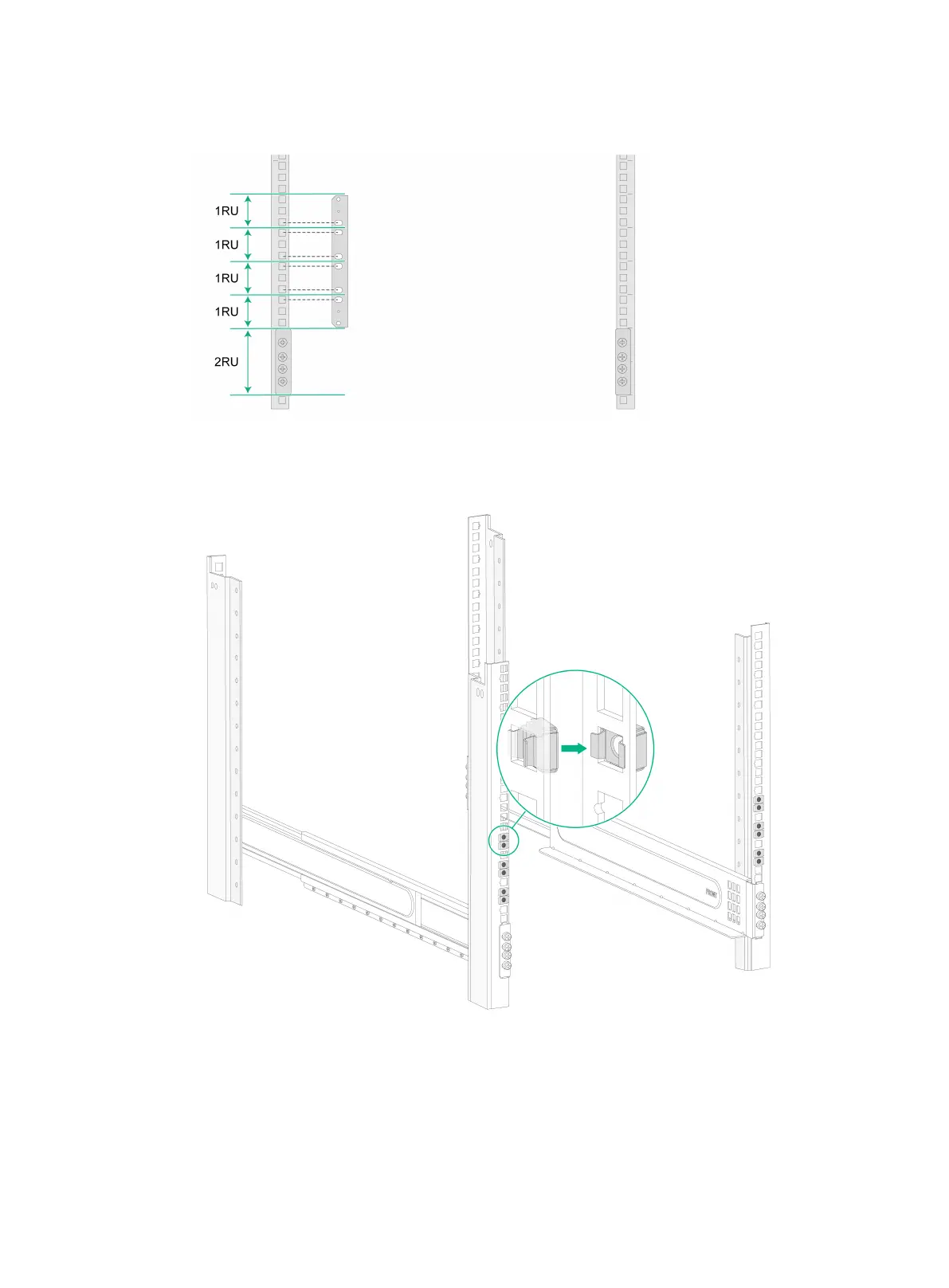

Figure2-1 Marking cage nut installation holes
2. Install cage nuts in the marked square holes on the front rack posts.
Figure2-2 Installing the cage nuts
3. Align the rear of the chassis with the front of the rack.
4. Use multiple people to lift the device by holding the chassis handles.
5. Place the device on the slide rails from the front of the rack. Slide the device along the guide
rails until the mounting brackets on the device are flush against the front rack posts.
6. Use M6 screws provided with the device to attach the mounting brackets of the device to the
rack posts.
