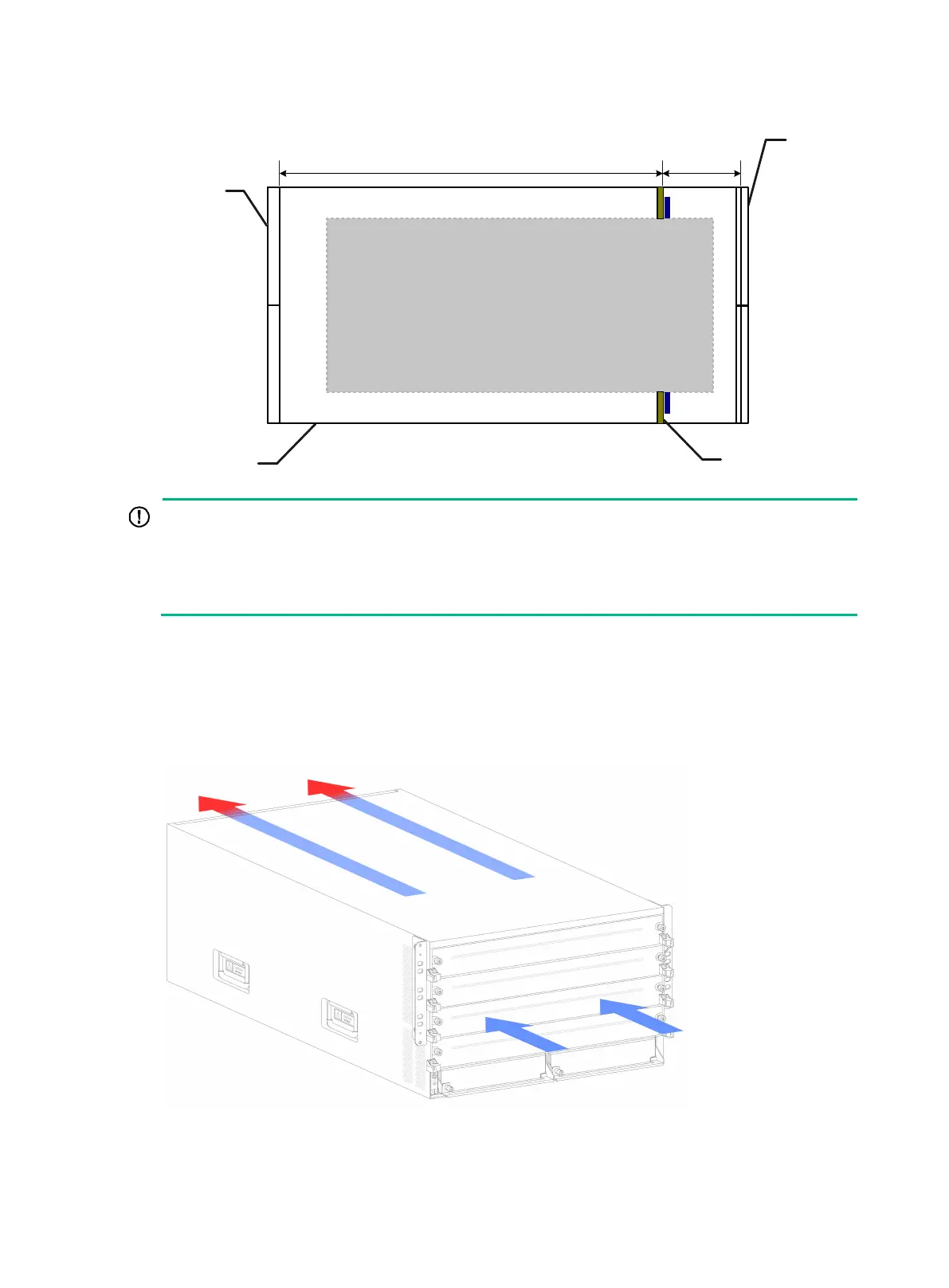

Figure1-1 Device dimension and rack requirements (top view)
To use an enclosed rack to accommodate the device, make sure you can access the rack from
both the front and rear doors.
For easy maintenance, reserve a minimum clearance of 1200 mm (47.24 in)
between the device
and walls or other devices.
Cooling
The device uses front to rear airflow for heat dissipation. Plan the installation site for adequate
ventilation. Leave a minimum clearance of 300 mm (11.81 in) around the inlet and outlet air vents.
Figure1-2 Airflow through the chassis (M9000-X06 gateway)
Rack
Rear door
Chassis
Front door
Front rack post
≥ 140 mm
(5.51 in)
≥ 950 mm
(37.40 in)
