H3C SecPath M9000-X - Page 19

3-6
2. Pivot down and open the ejector levers of the module. Gently push the module into the slot
along the guide rails.
3. Continue to push the module by its front panel until you cannot push it any further.
4. Use a Phillips screwdriver to fasten the captive screws on the module.
5. Pivot up the ejector levers on the module.

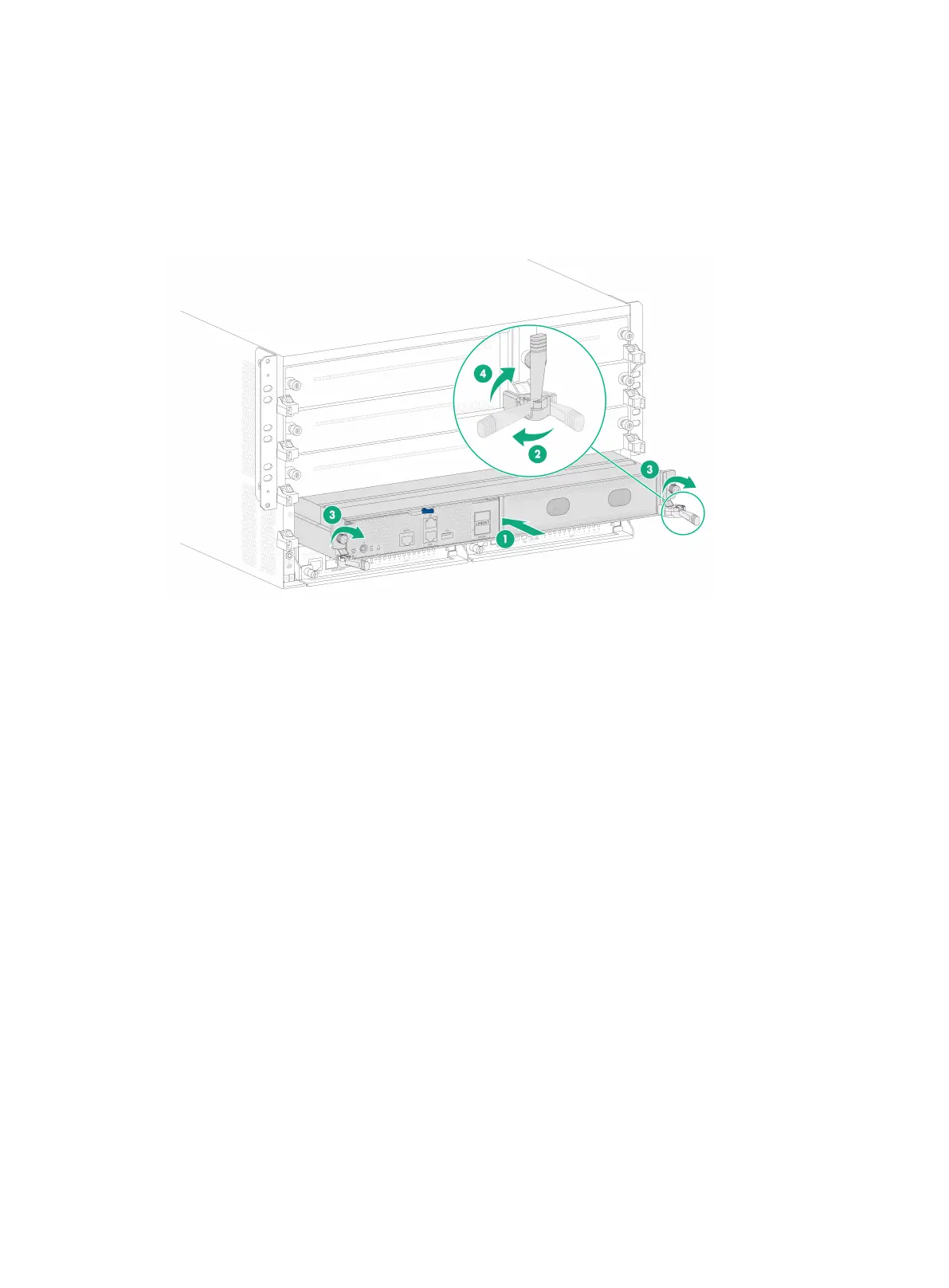

Figure3-7 Installing the interface switch module
