Haas UMC-750 User Manual

Introduction
17
Chapter 2: Introduction
2.1 Overview
This operator’s manual supplement describes the unique features and functions of the
UMC series of machines. Refer to your Mill Operator’s Manual for control operation,
programming, and other general mill information.
You can find specific details about the UMC family, including information that is beyond the
scope of this document, at www.HaasCNC.com.
2.2 UMC-750 Workstations

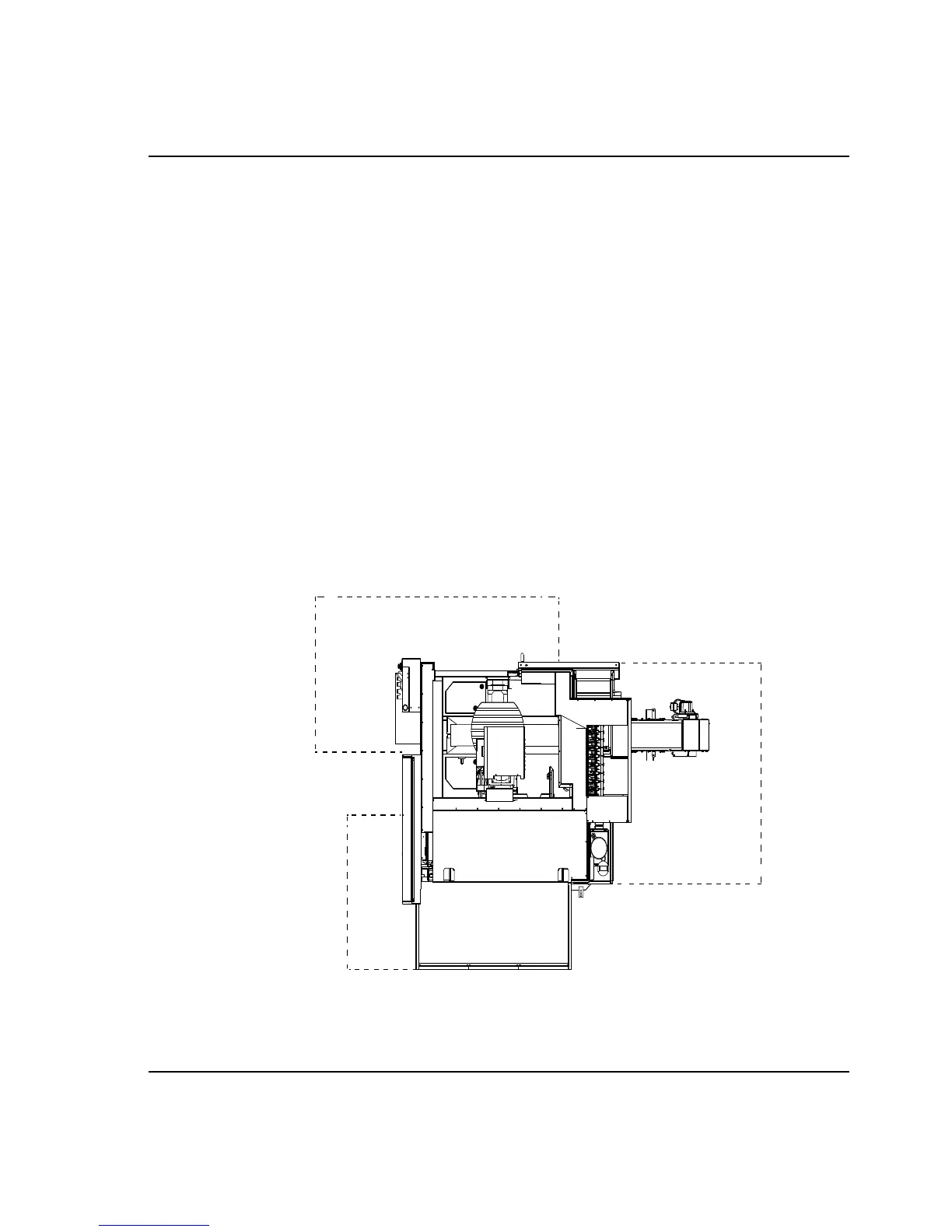

F2.1: This diagram illustrates the UMC-750 three operator zones.
• A: Operator Station.
• B: Check and Maintain Lubricants.
• C: Check and Maintain Coolant, Coolant Pumps and Chip Conveyor.
A
B
C

Haas UMC-750 Specifications

General

Machine Category	Universal Machining Center
C Axis Travel	360 degrees
Tool Capacity	40+1
Travels X Axis	30 in (762 mm)
Travels Y Axis	20 in (508 mm)
Travels Z Axis	20 in (508 mm)
Spindle Speed	8100 RPM
Spindle Motor	30 hp (22.4 kW) vector drive
Spindle Taper	40
Control	Haas
Tool Changer Capacity	40+1
