Integrated Coolant Tank
25
Chapter 3: Integrated Coolant Tank
3.1 Introduction
The UMC-750 coolant tank is integrated into the machine base.

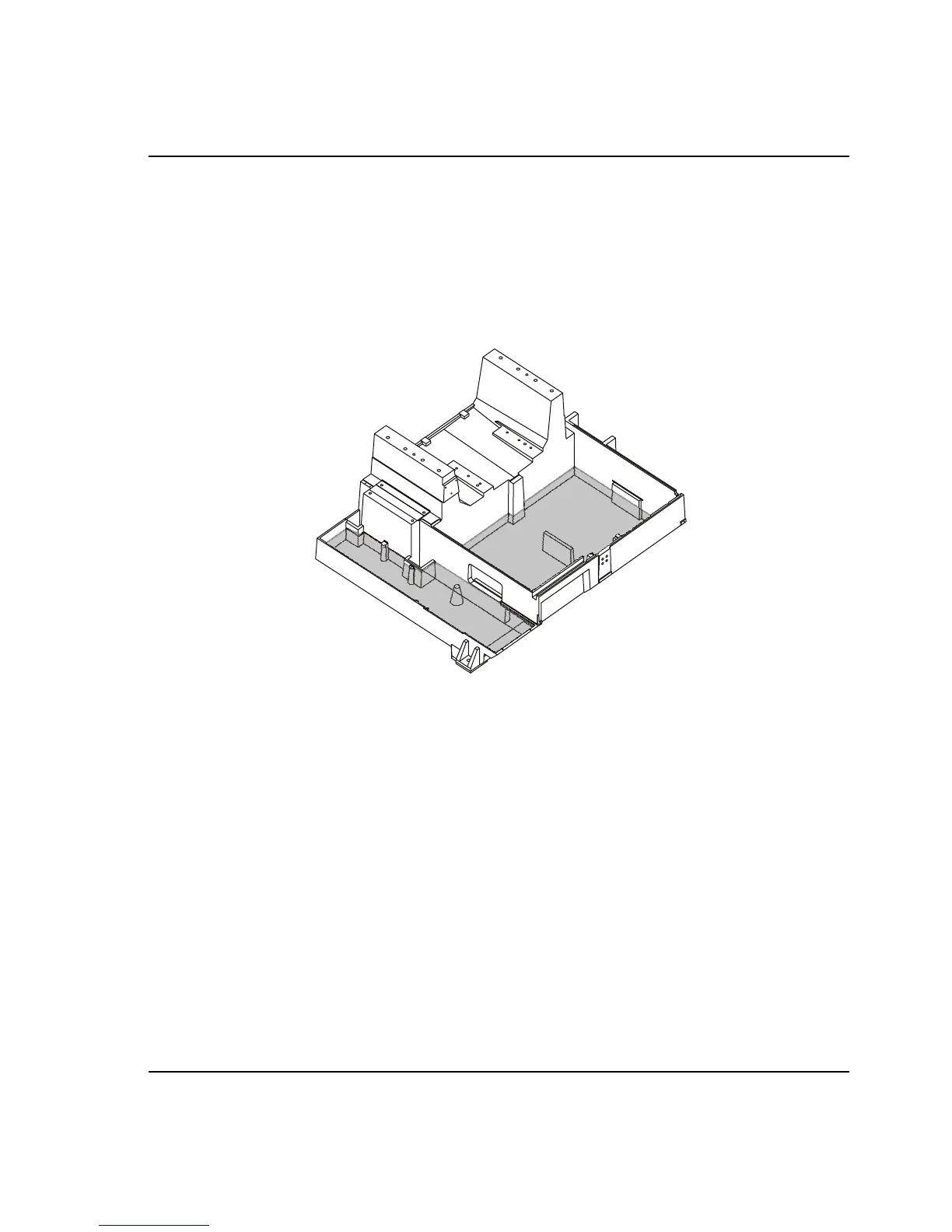

F3.1: UMC -750 Integrated Coolant Tank

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Haas UMC-750 and is the answer not in the manual?

Haas UMC-750 Specifications

General IconGeneral
Machine CategoryUniversal Machining Center
C Axis Travel360 degrees
Tool Capacity40+1
Travels X Axis30 in (762 mm)
Travels Y Axis20 in (508 mm)
Travels Z Axis20 in (508 mm)
Spindle Speed8100 RPM
Spindle Motor30 hp (22.4 kW) vector drive
Spindle Taper40
ControlHaas
Tool Changer Capacity40+1
