Haas UMC-750 - Coolant Pump Location; Coolant Tank Clean-Out

Coolant Tank Clean-Out
26
3.1.1 Coolant Pump Location
The coolant pumps are on the tool changer side of the machine, behind the chip conveyor.
The standard coolant box filter is mounted below the standard coolant pump.

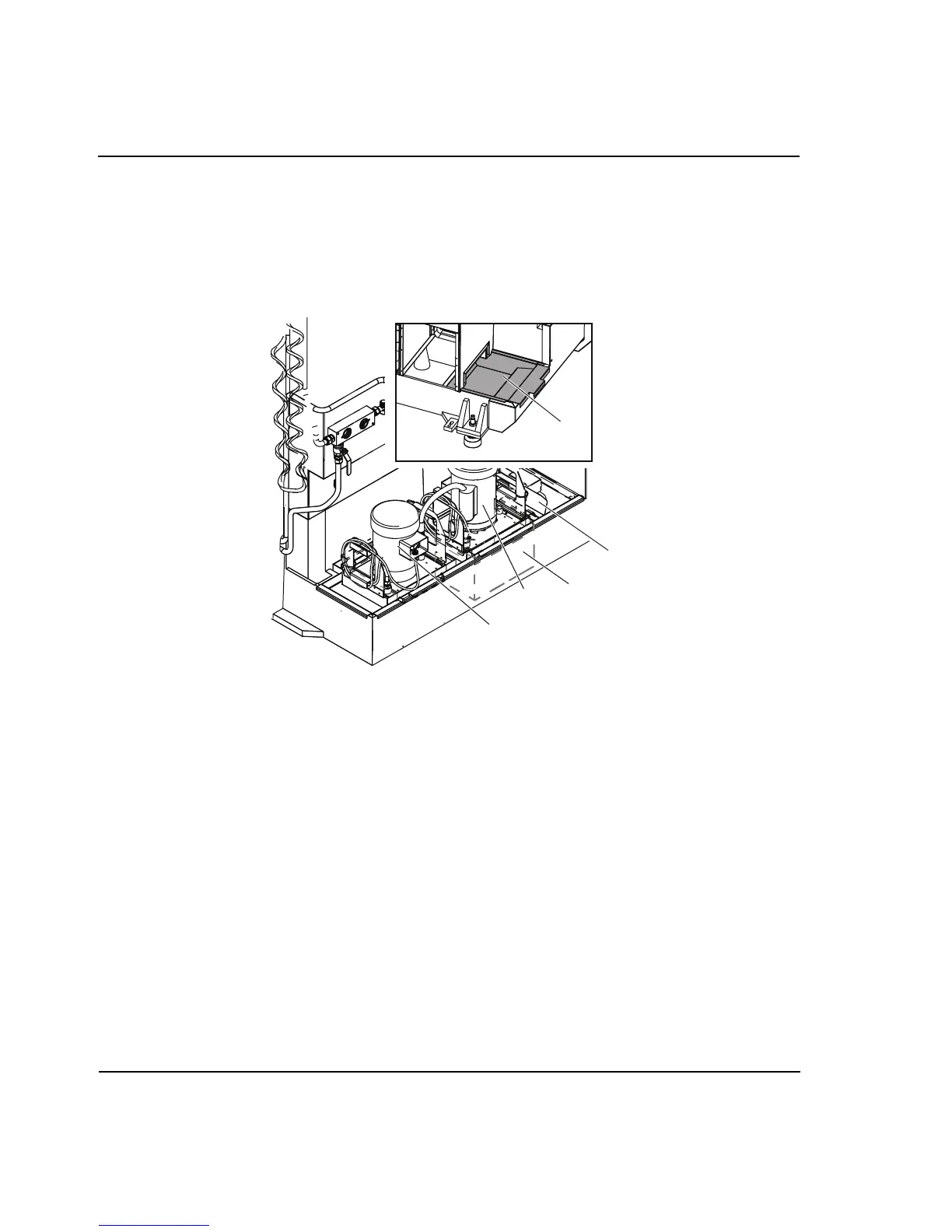

F3.2: UMC-750 Coolant Pump Location: [1] Chip Tray, [2] Gate Filter, [3] Coolant Box Filter, [4]
Standard Coolant Pump, [5] TSC Coolant Pump
3.2 Coolant Tank Clean-Out
To clean out the coolant tank:
1. Remove the coolant pumps.
2. Remove and empty the coolant box filter.
3. Remove and empty the chip tray.
4. Remove and clean the gate filter.
5. Use a wet/dry vacuum or similar device to remove the used coolant from the tank.
6. For more thorough cleaning, open the coolant tank access panels in the bottom of
the work space.
2
4
5
3
1
