Wireless Intuitive Probing System (WIPS)
31

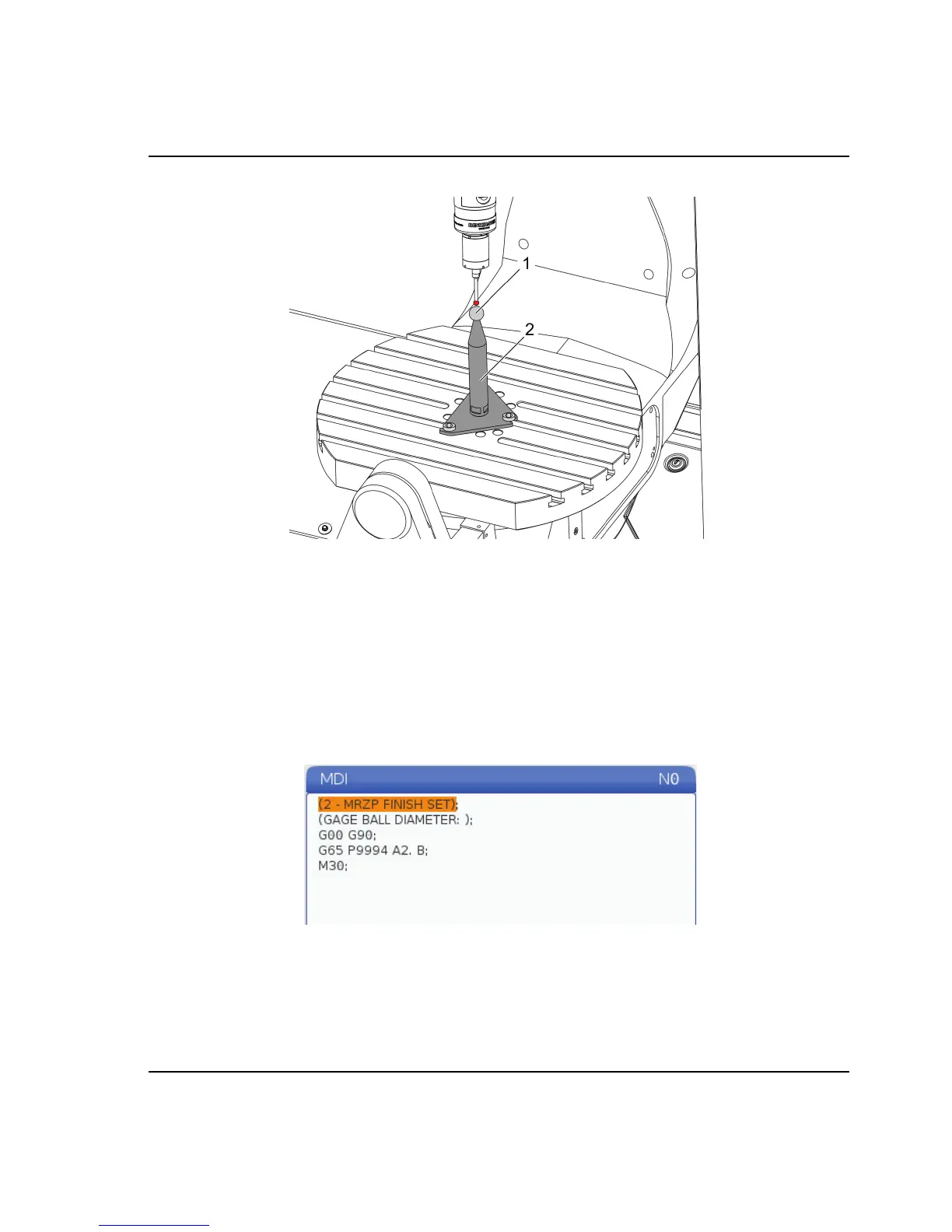

F4.1: Calibration Tooling Ball
2. Place the work probe in the spindle.
3. Position the work probe over the tooling ball.
4. Navigate to [EDIT]>VPS>PROBING>CALIBRATION>MRZP and select B-Axis Tilt
C-Axis Rotary Finish Set and press [ENTER].
5. Type gage ball diameter and press [ENTER].
6. Follow the prompts to generate the probe program. Enter MDI mode and press
[CYCLE START].
The program generates the G-code and runs the program.
F4.2: B-Axis Tilt C-Axis Rotary MRZP Finish Set Generated Program
7. The program automatically places values in macro variables #10121 through
#10123. These variables show the machine rotary zero point axis travel distance
from the home position in the X, Y, and Z Axes.
8. If the MRZP locations have changed, enter the values from macro variables #10121,
#10122, and #10123 into Settings 255, 256, and 257.
