Section 3 Installation
3.1 Probe connections

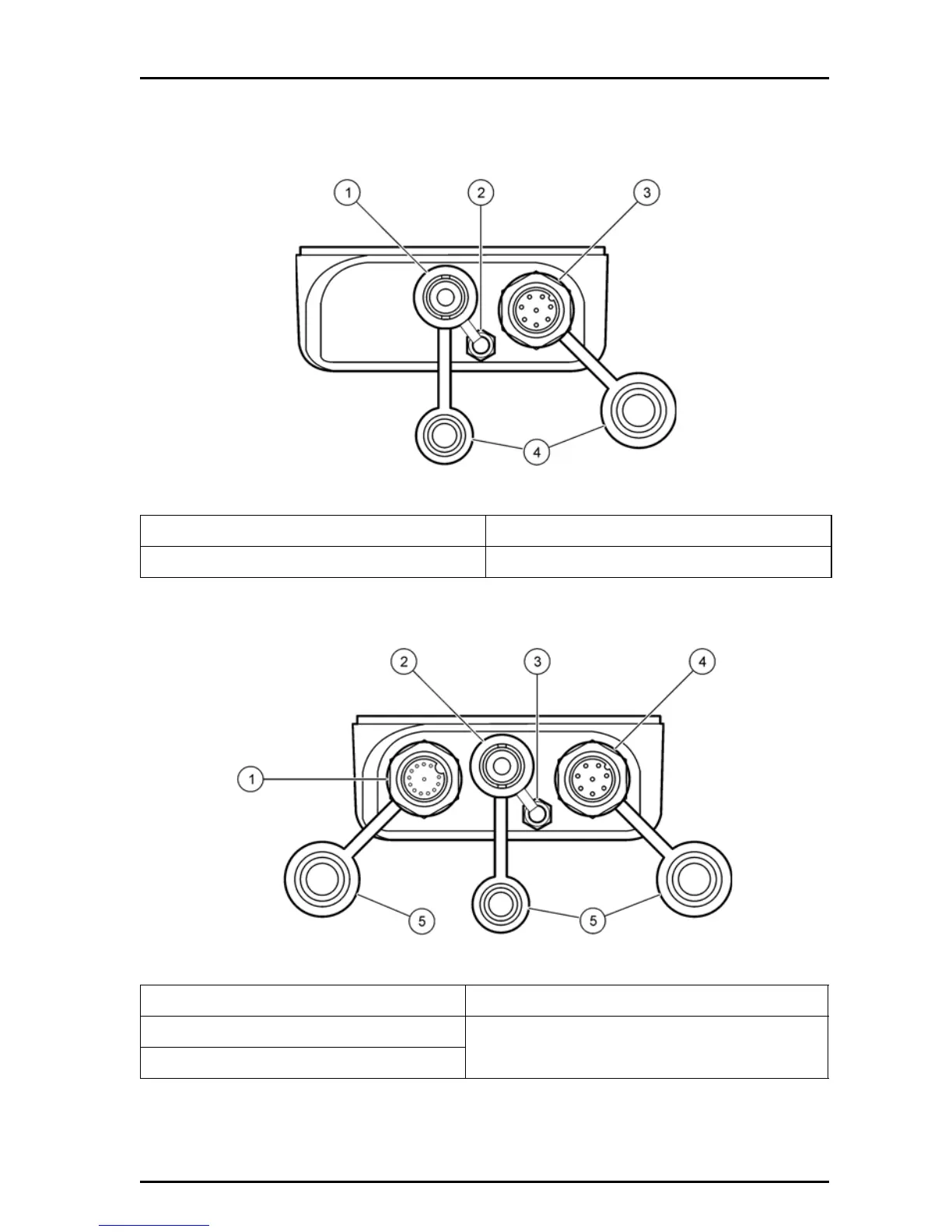

Figure 1 Probe connection for the H160
1 BNC connector 3 ISFET pH probe connector
2 3.5 mm phono jack 4 Connector dust cap
Figure 2 Probe connections for the H170 meter
1 Conductivity probe connector 4 ISFET pH probe connector
2 BNC connector 5 Connector dust cap
3 3.5 mm phono jack connector
