Start Up
4.2.2 Display
In its basic setting, the display shows the main measurement variables and the date/time
(Figure 7). It can be set in a user-defined manner, see section 4.5, page 18.
Table 1 Navigating in the menu
Navigation key Description
Navigation key RIGHT/LEFT Navigation occurs with the RIGHT/LEFT navigation keys.
Navigation key UP/DOWN Navigation occurs with the UP/DOWN navigation keys.
ENTER/ON
– Confirm selection and entry with ENTER/ON.
– Switch the instrument on with ENTER/ON.
CLEAR/OFF
– Abort actions with CLEAR/OFF.
– Press CLEAR/OFF to return to the previous menu option or abort
entries.
– Switch the instrument off with CLEAR/OFF.
Vertical arrows
The vertical arrows in the display show that there are additional menu options or
measurement values above or below.
Cursor
– The cursor points to the selected main menu option. Navigation occurs with the
RIGHT/LEFT navigation keys.
– The active decimal place is displayed.
> (arrow) The current selection is displayed

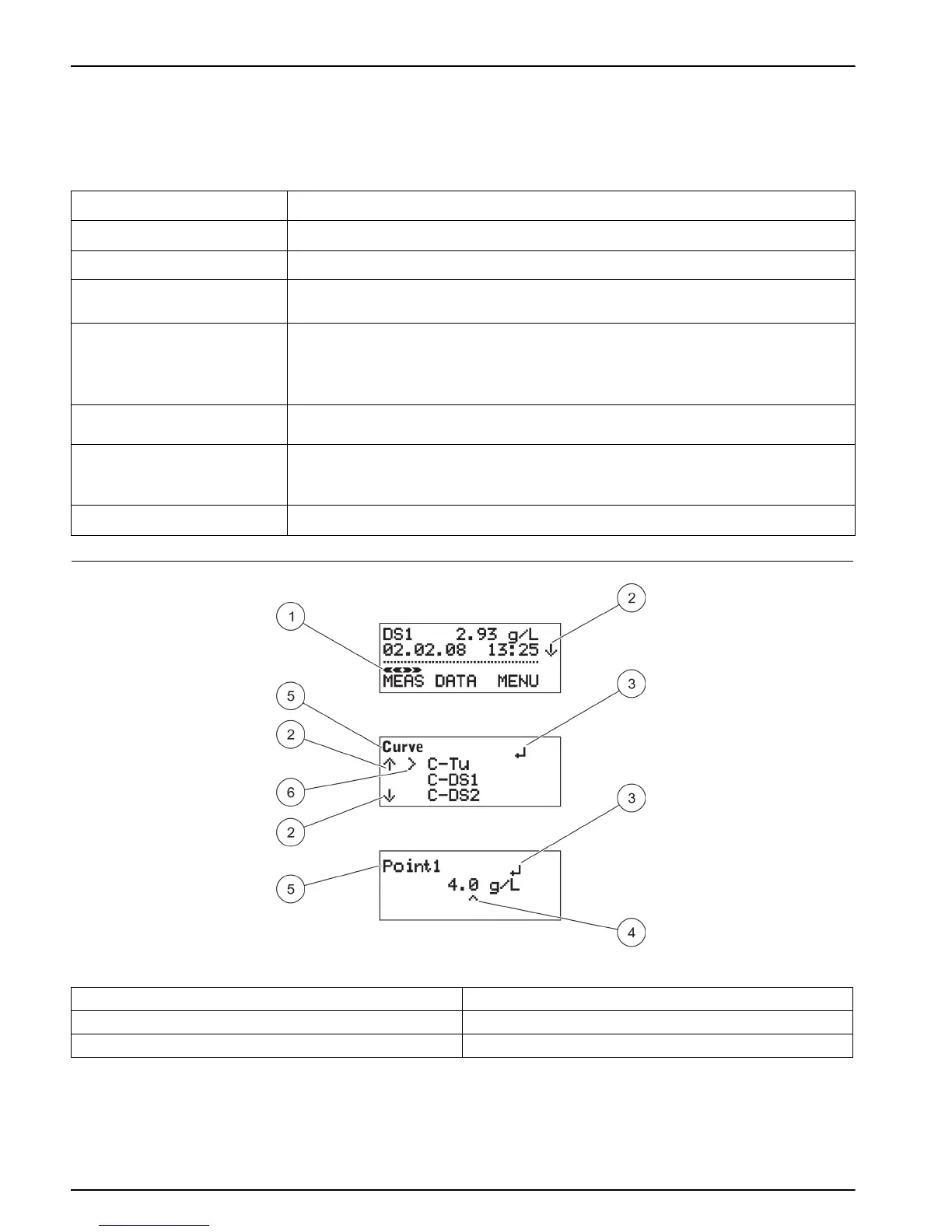

Figure 7 Display of results from the instrument with connected probe
1 Cursor 4 Current decimal place
2 Vertical arrows 5 Menu option
3 Input mode 6 Active selection
