120
Maintenance

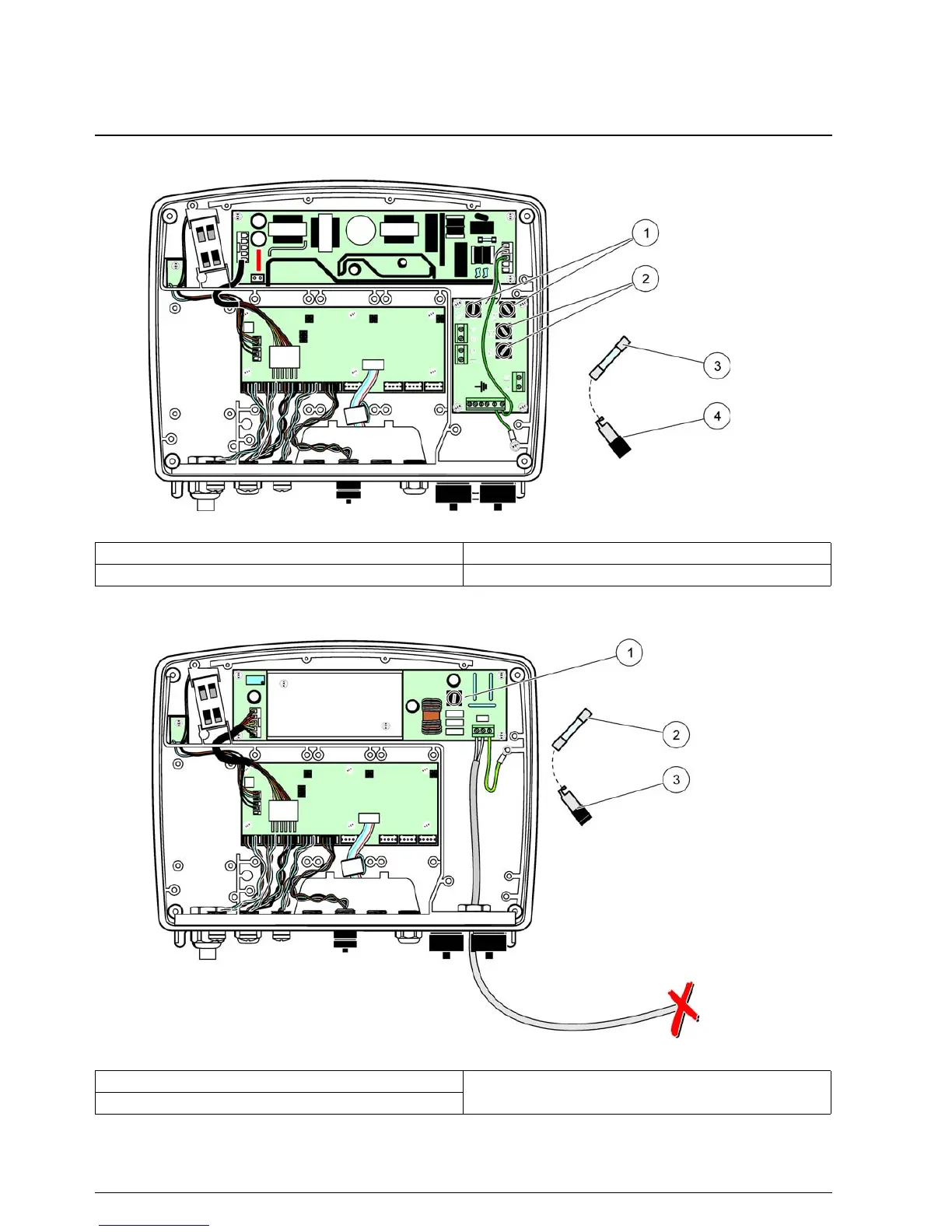

Figure 67 Fuse replacement (AC version)
1 Fuse (2), F1 and F2: M 3.5A medium slow-blow 3 Remove fuse from holder as shown.
2 Fuse (2), F3 and F4: T 8A; 100–240 VDC, slow-blow 4 Fuse holder
Figure 68 Fuse replacement (24 VDC version)
1 Fuse, T 6.3A, slow-blow 3 Fuse holder
2 Remove fuse from holder as shown.
