Standard Operations
5.1.2 Tips for the use of the touch screen
The entire screen of the display module is touch-activated. To make a selection, press
the screen with a fingernail, fingertip, pencil eraser or a stylus. Do not press the screen
with a sharp object, such as the tip of a ball point pen.
• Do not place anything on top of the screen, to prevent damage or scratching on the
screen.
• Press buttons, words or icons to select them.
• Use scroll bars to move up and down long lists very quickly. Press and hold the scroll
bar, then move up or down to move through the list.
• Highlight an item from a list by pressing it once. When the item has been successfully
selected, it will be displayed as reversed text (light text on a dark background).
5.1.3 The display modes
The display module offers different display modes and a pop-up toolbar:
• Measured value display: Default display when a probe is connected and the sc1000
controller is in measurement mode. The sc1000 controller automatically identifies the
connected probes and displays associated measurements.
• Graph display: Option in the measured value display. Displays measured values as
graphs. The Graph display is accessed through the pop-up toolbar.
• Main menu display: Software interface for setting up parameters and settings of a
device, probe and display module. The Main menu is accessed through the pop-up
toolbar.
• Pop-up toolbar: The pop-up toolbar provides access to the sc1000 controller and
probe settings and is normally hidden from view. To view the toolbar, touch the
bottom-left of the screen. The toolbar contains the buttons described in Figure 39.

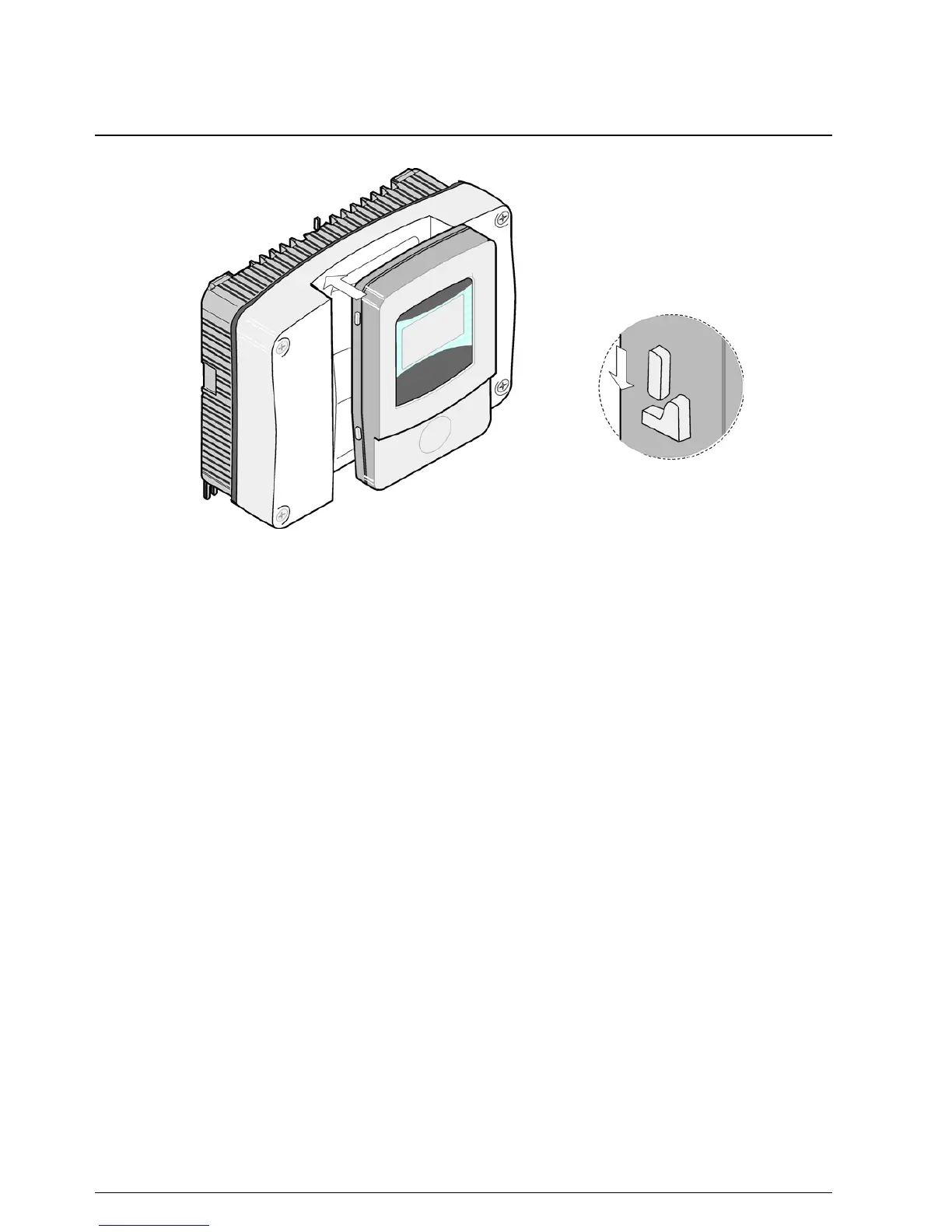

Figure 38 Attach the display module to the probe module

Hach sc1000 Specifications

General

Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Inputs	Up to 2 digital or analog sensors
Outputs	2 analog, 2 relay
Communication	Modbus
Power Supply	100-240 VAC
Enclosure Rating	IP66, NEMA 4X
