64
Standard Operations
7. Select a tag and press the ENTER button. The new tag is added to the Telegram list.
Select a tag and press the
UP and DOWN button to move the position of the tag
(Figure 47 and Table 14).
8. Repeat the steps to add further devices and tags.
9. Press the
ENTER button to store the Profibus configuration.
5.12.2 Error and status register
Note: ERROR and STATUS definitions are valid for all sc probes.

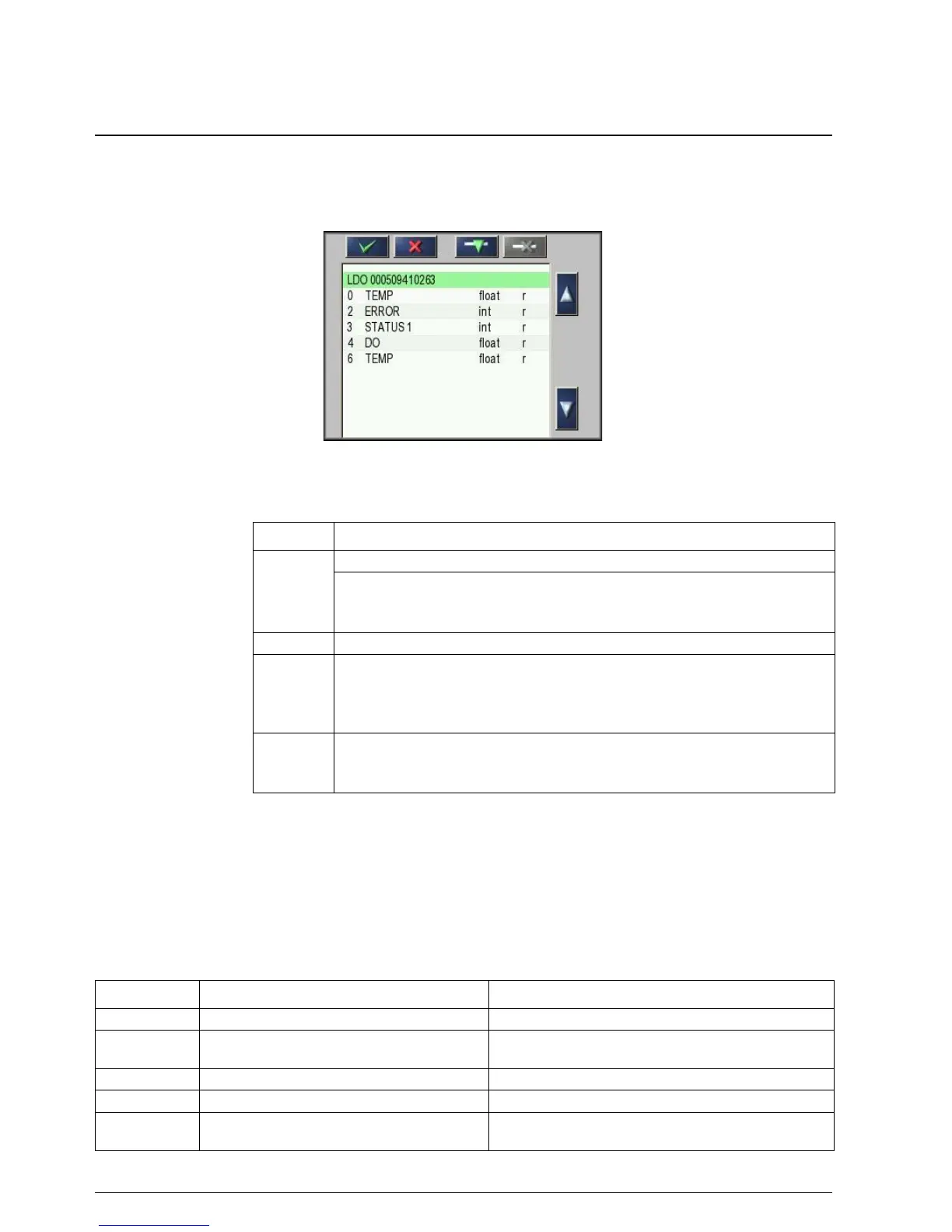

Figure 47 Profibus/Modbus configuration menu—Telegram list with new tag
Table 14 Telegram list—Column description
Column Description
1
Profibus: Data position in the configured Profibus slave (in 2 byte words)
Modbus: Data position in the configured Modbus slave
This slave contains holding registers beginning at 40001.
Example: “0” means register 40001 or “11” means register 40012.
2 Tag name to identify the configured data.
3
Data type
float=floating point value
int=integer numbers
sel=integer value resulting from a enum (selection) list
4
Data status
r=data are read only
r/w=read/write (for DPV0 only)
Table 15 Error register
Bit Error Description
0 Measurement calibration error An error has occurred during the last calibration.
1 Electronic adjustment error
An error has occurred during the last electronic
calibration.
2 Cleaning error The last cleaning cycle failed.
3 Measuring module error A failure in the measuring module has been detected.
4 System re-initialization error
Some settings have been detected inconsistent and set
to factory defaults.
