Advanced Operations

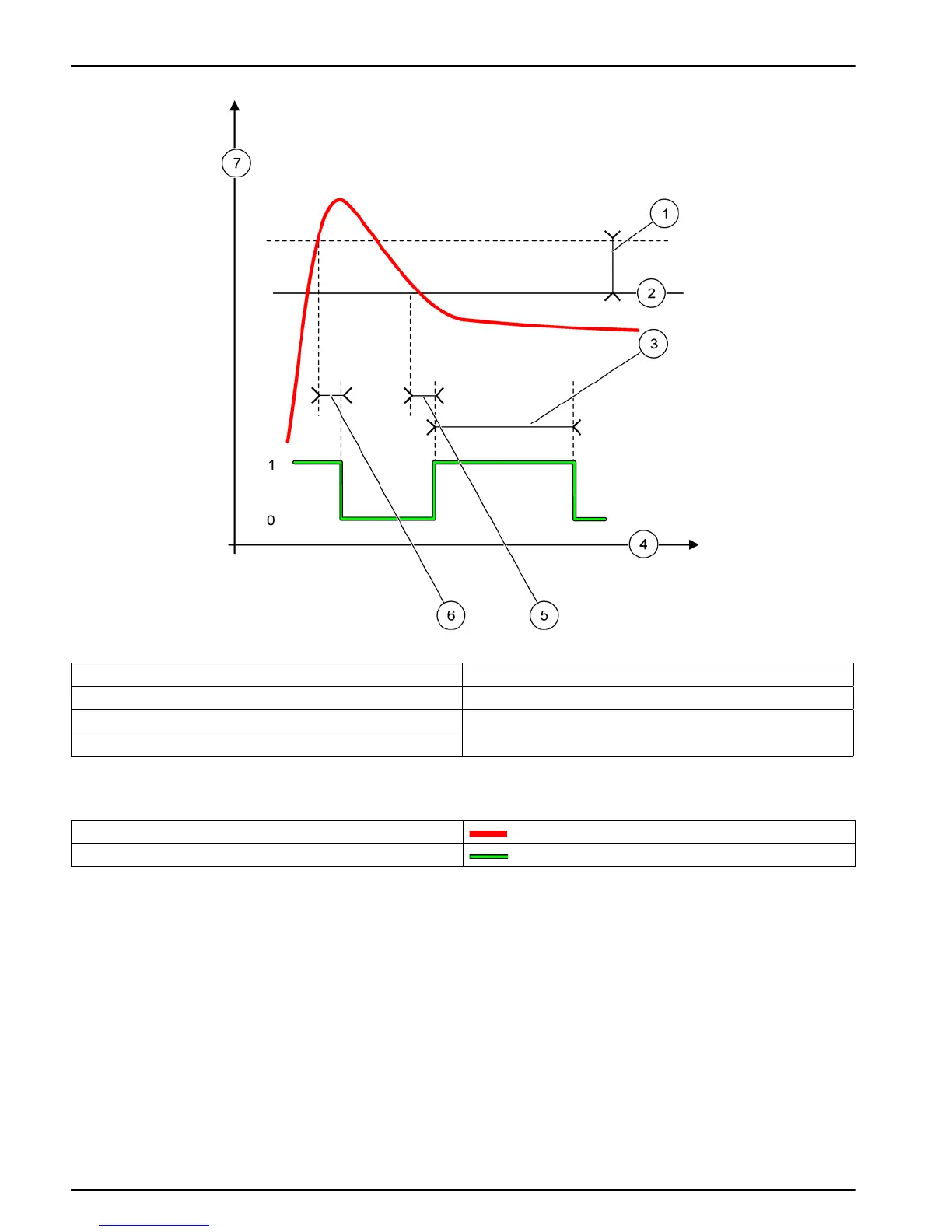

Figure 56 Relay behavior—Feeder Control mode (Phase low, OnMax Timer)
1 Deadband 5 ON delay
2 Set point 6 OFF delay
3 OnMax Timer 7 Source (y-axis)
4 Time (x-axis)
Table 29 Color/line code for Figure 56
Selected source
Relay contact (phase low)
