7. TEMPERATURE DISTRIBUTION CHART
CAUTION
●These charts do not define the temperature characteristics, and are for reference only.
●The temperature distribution charts for HAKKO 850 or 850B should not be used for HAKKO
FR-810B. HAKKO FR-810B uses a different pump and control system. When you use the
HAKKO FR-810B, make sure to refer to the temperature distribution charts shown to the
under.
●The hot air temperature may not reach the set temperature depending upon the combina-
tion of the nozzle and the set air flow.In this case, reduce the set temperature or the air flow.
●Test condition: Measured at a point 1mm (0.04 in.) from the nozzle by recorder.

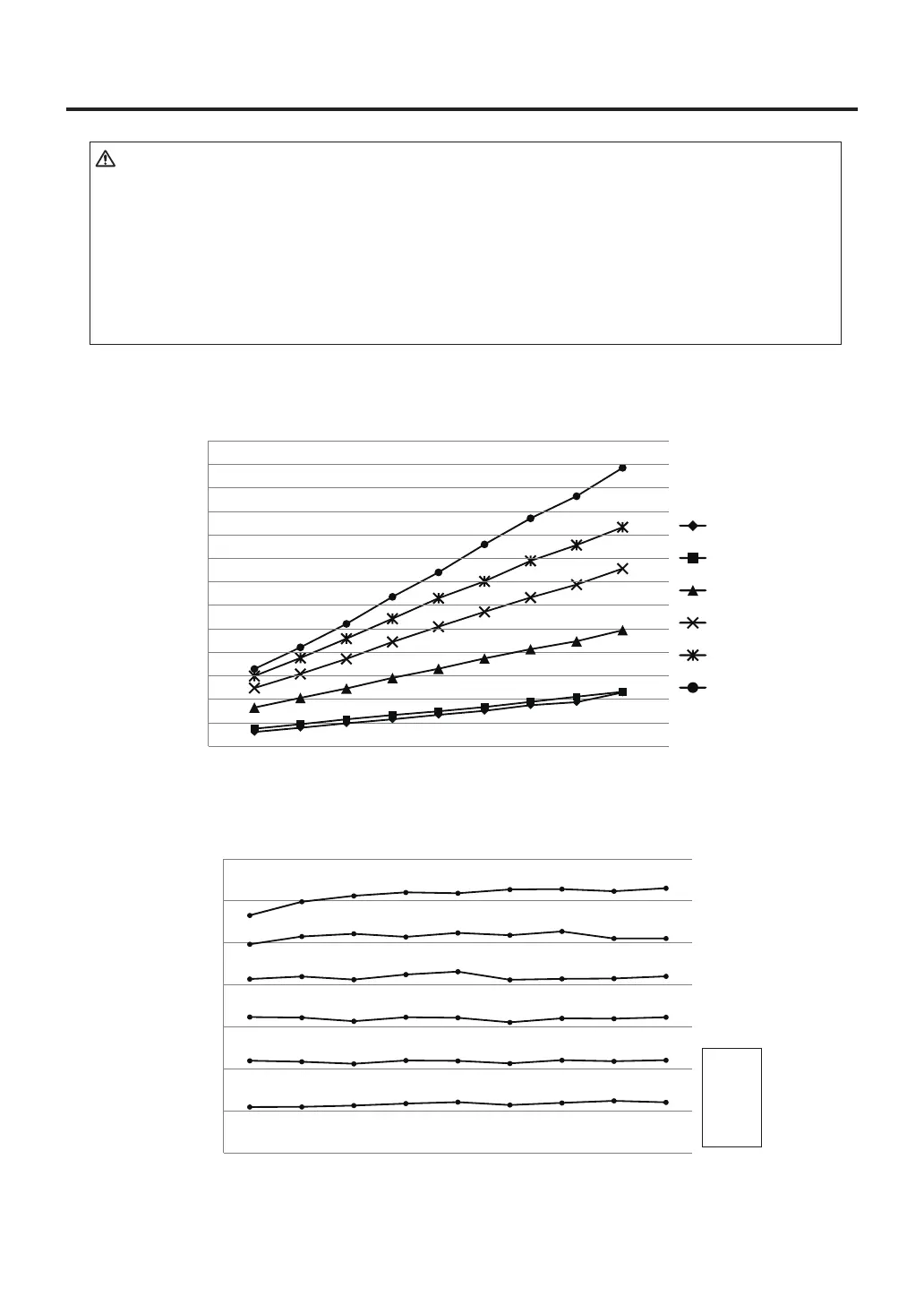

N51-01 Single ø2.5 (0.10)
Temp.
700℃
(1292℉)
600℃
(1112℉)
500℃
(932℉)
400℃
(752℉)
300℃
(572℉)
200℃
(392℉)
100℃
(212℉)
0℃
(32℉)
1 2 3 4 5 6 7 8 9
Air
①100℃
②200℃
③300℃
④400℃
⑤500℃
⑥600℃
①
②
③
④
⑤
⑥
HAKKO FR-810B Airflow
1 2 3 4 5 6 7 8 9
Air
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Airflow (L/min)
N51-05
Unequipped
nozzle
N51-04
N51-03
N51-02
N51-01
