When [Display <--> Card] is Selected:
1. When [Display <--> Card] is selected, the “Card Transfer” screen is displayed.
Screen data used for comparison is that in the DSP folder under the folder having the same name
as the access folder that is set on the MONITOUCH.
2. Press the [Start] switch.
3. During data transfer, the [Start] switch changes into [Busy] and flashes. When data has been
transferred successfully, the following window is displayed.
Press the [OK] switch.
If any other message is displayed, refer to page 6-22.
4. Press the [Return] switch. The “Card Menu” screen is displayed again.

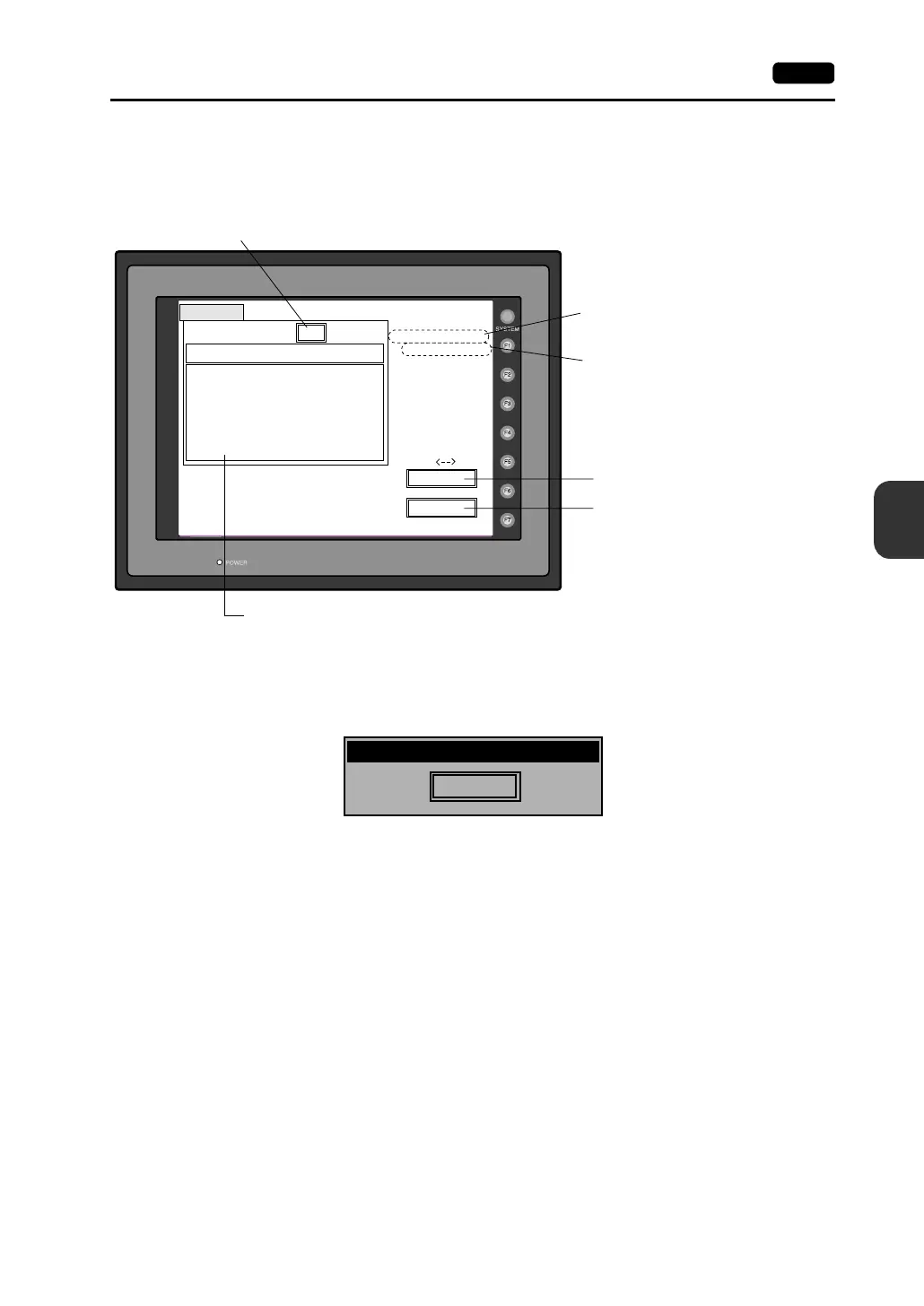

Card Transfer
CF Card File Infomation
Folder Name: AAAAAAAA
Rest Size: 29437KB
Return
Start
Display
Card
Access
Sys. Program
Version
Font Date
Version
I/F Driver
Version
Screen PLC Type
Screen Comment
: V710/V712
: 1.010
: ENGLISH
: 1.300 / 1.010 / 1.000
: GENERAL
: 1.240
: GENERAL
:
DSP0000.BIN 2002-03-20 10:58:56
Indicates the name of the currently
selected folder.
Indicates the free space in the CF card.
Starts transferring data
[Display <--> Card].
Flashes during communication with the CF card.
Moves back to the previous screen.
Indicates the information of the currently selected folder.
If there is no screen data, this field becomes blank.
OK
Work normally finished.
