Operation
3.2 Operating and indicator ele-
ments
3.2.1 Operating elements
in the driver's cab
1 Left-hand operating panel
2 Steering wheel
3 Release catch for parking brake
(safety catch)
4 Accelerator
to drive forwards or backwards
5 Service brake
6 Driving direction selection switch
(forwards/reverse)
7 Right-hand operating panel
8 Parking brake

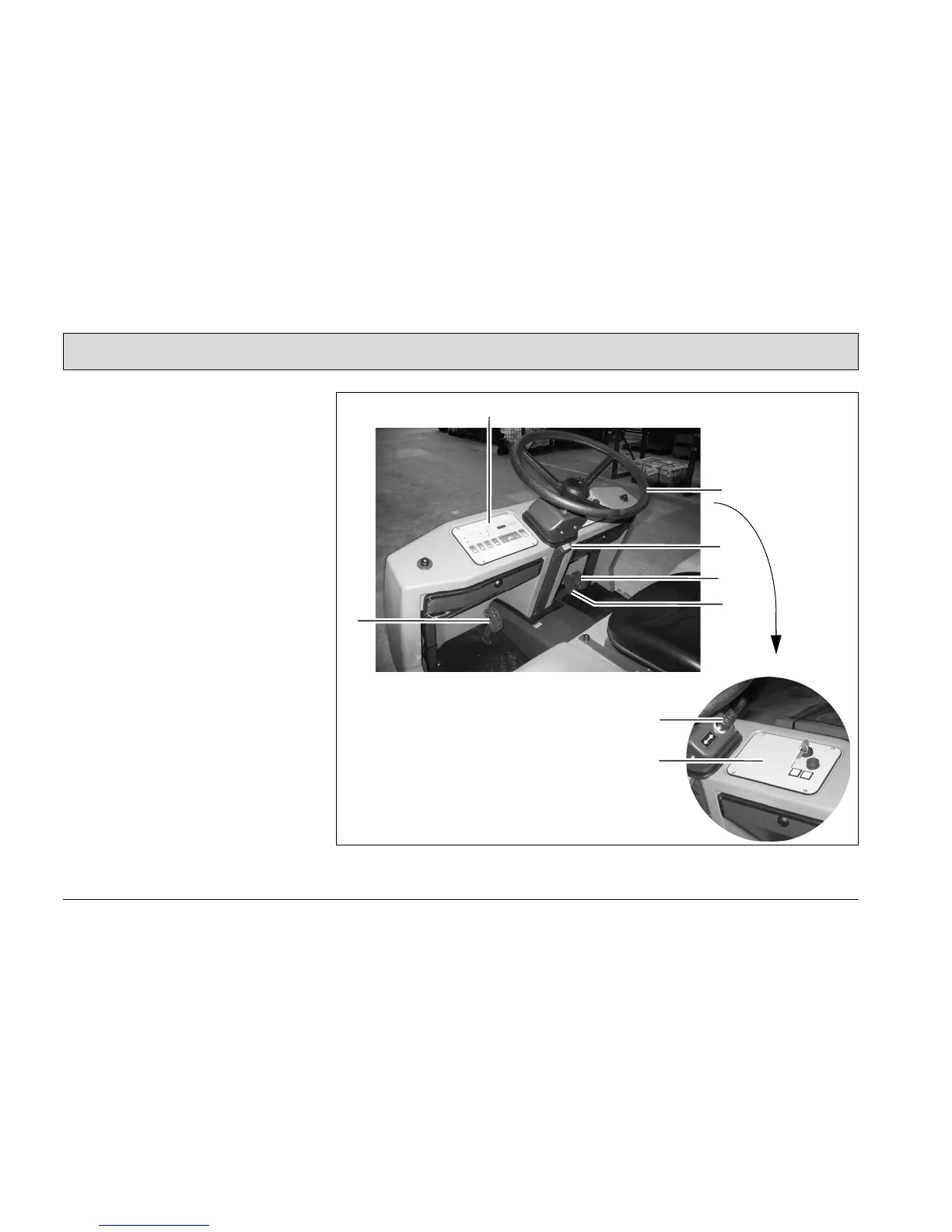

Fig. 15
1
2
3
7
6
5
8
4
