Operation
3.2 Operating and indicator ele-
ments
3.2.1 Operating panel
Scrubmaster B45
1 Indicator field for:
- operating hour counter,
- service indicator, and
- charge status indicator
2 Charge mode indicator
3 Main switch
4 Bail system switch
5 Brush ejector

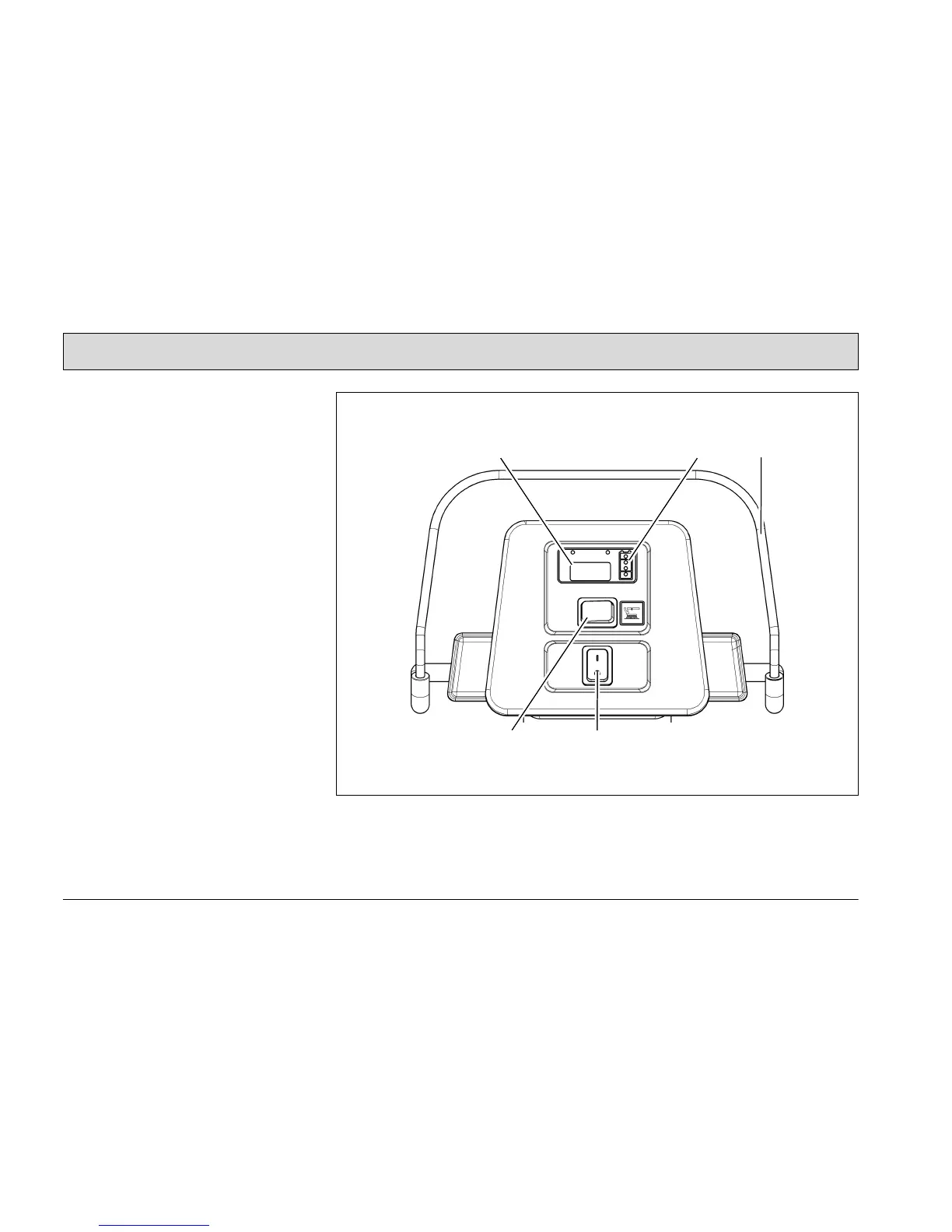

Fig.9 Scrubmaster B45
1
2
5 3
4
