HAKO Scrubmaster B45 - Circular Brush Head

55
Maintenance and Service

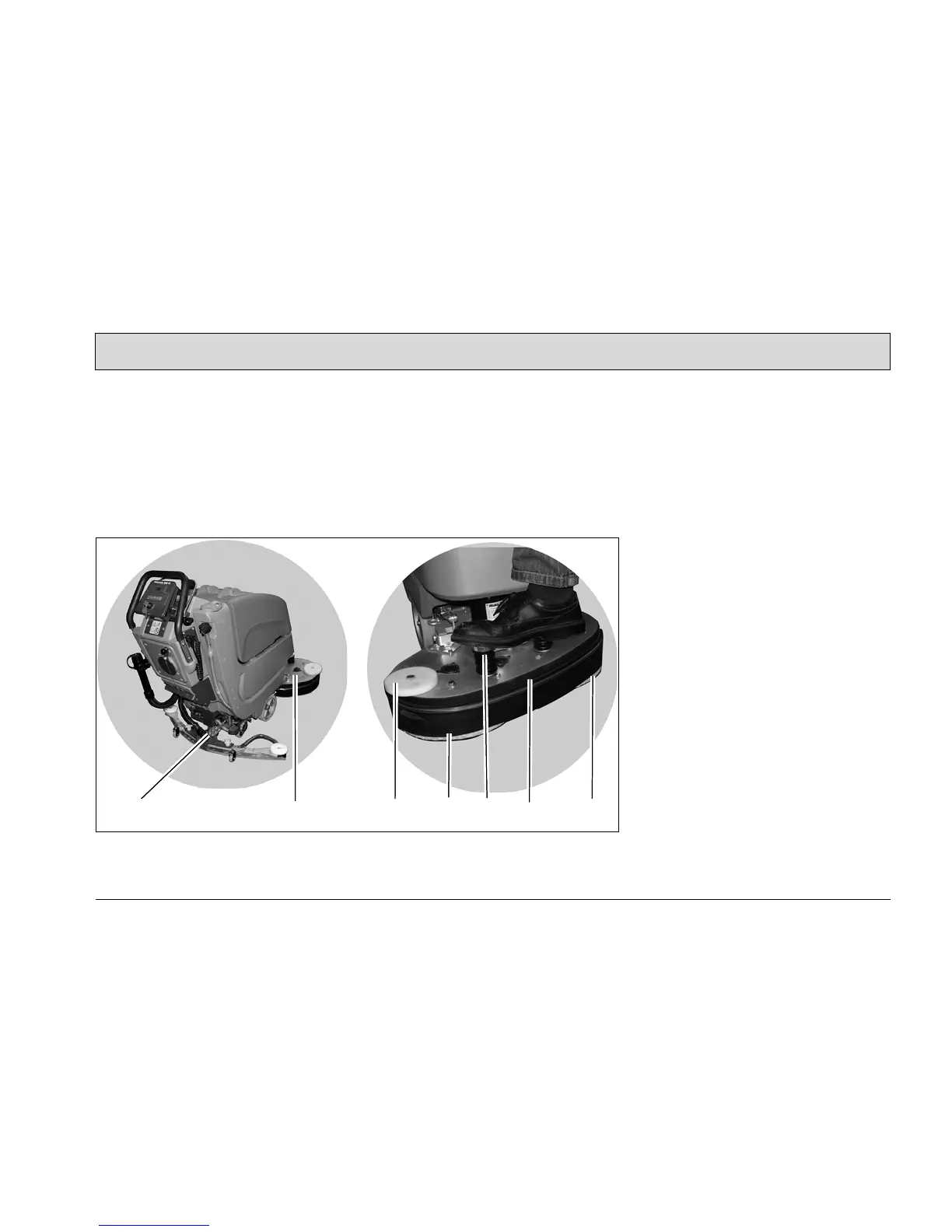

5.9 Circular brush head
1 Brush head lift lever
2 Brush head
3 Deflector roller
4Brush
5 Brush ejector
6 Sealing strip
Fig.19
Cleaning the brushes
Clean the brushes in the brush head
(Fig
. 15/2) daily or as necessary.
1. Raise the brush head using the ped-
al (Fig. 15/1).
2. Press the brush ejectors (Fig. 15/5)
downward and remove the brushes
to
clean them.
Changing the brushes
Check the brushes (Fig. 15/4) in the
brush head weekly for signs of wear. In
the case of wear to a brush length of
1.5 cm, the brushes must be changed.
1. Raise the brush head using the ped-
al (Fig. 15/1).
2. Press the brush ejectors (Fig. 15/5)
downward and remove the brushes
3. Slide the new brush under the brush
h
ead and press into the support us-
ing both hands.
Changing the deflector roller
Check the deflector roller (Fig. 15/3)
weekly and change it as necessary.
Changing the sealing strip
Check the sealing strip (Fig. 15/5)
weekly and change it as necessary. To
do this, loosen the fastening device and
remove the sealing strip. Installation is
carried out in the reverse sequence.
1 2
3456 4
