Operation
Scrubmaster B45 CL
1 Indicator field for:
- operating hour counter,
- service indicator, and
- charge status indicator
2 Charge mode indicator
3
Key switch
4 Bail system switch
5 Direction switch
6 Driving speed control
7 Symbol for silence kit
8 Symbol for tool connection (option)
9 Silence kit on/off button
10Tool connection on/off button
(option)
11 Solution dosage button
12Solution supply on/off button
13Brush ejector

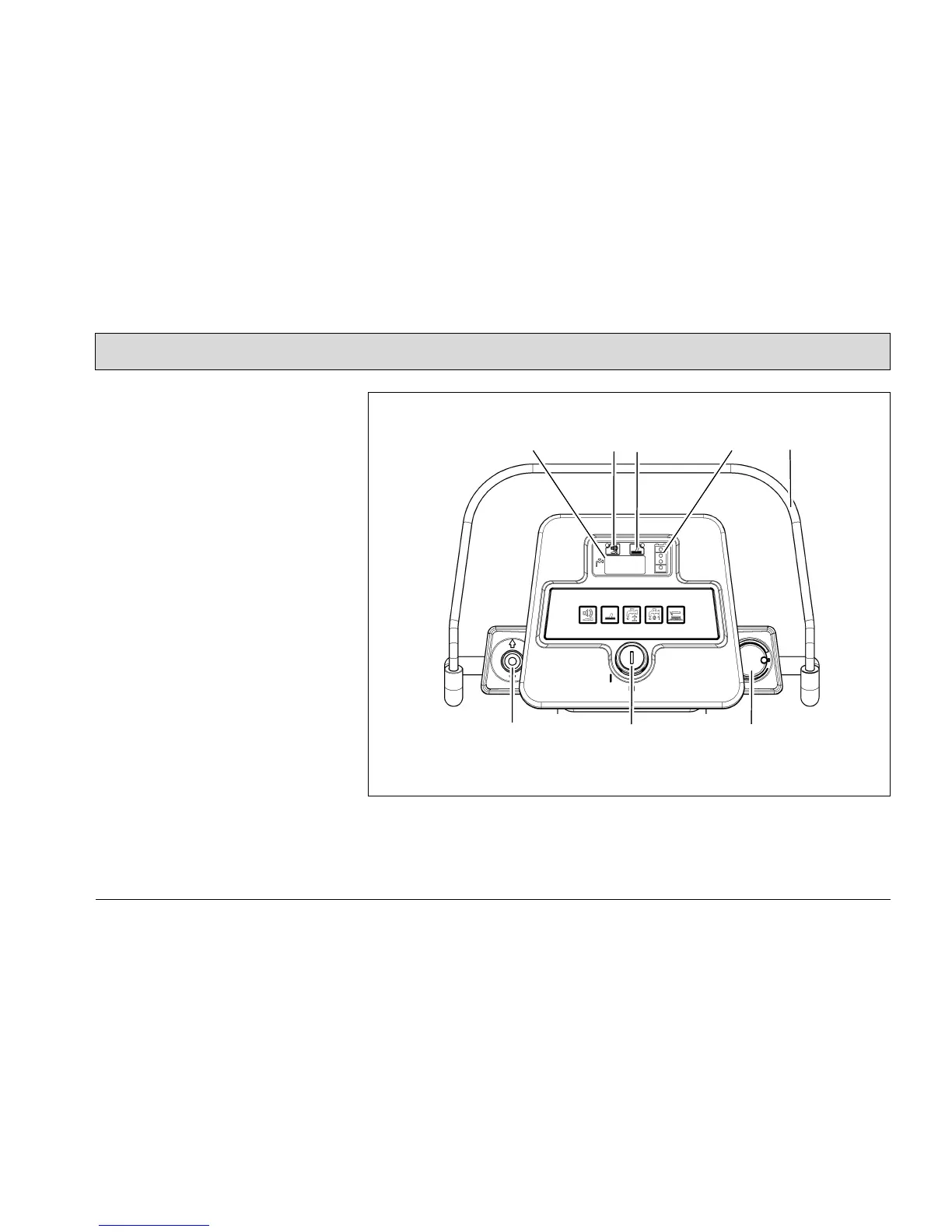

Fig.10 Scrubmaster B45 CL
4
7
81 2
3
6
5
910
11 12 13
