HALE SAM - Activating a CAFS FOAM ONLY Preset; Changing CAFS Discharge to FOAM ONLY

10 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210
3.4 Activating A CAFS FOAM ONLY Preset
A CAFS FOAM ONLY (see the NOTE in paragraph 3, page 7) preset is activated the same way a CAFS ready
preset (see paragraph 3.2, page 8), however the preset/discharge is labeled with the word FOAM
(see Figure 15).

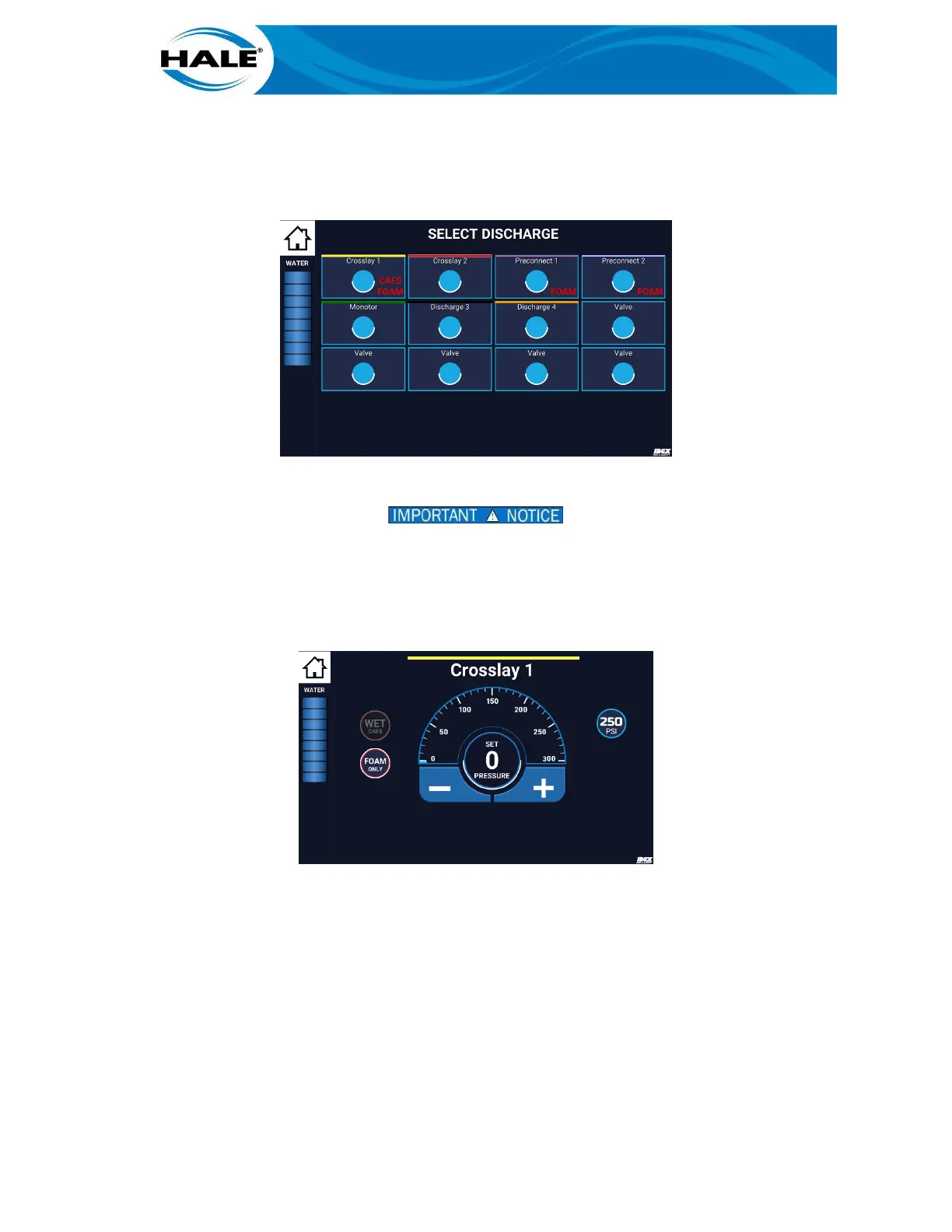

Figure 15. Selecting A CAFS FOAM ONLY Capable Discharge
FROM THE VALVE X SCREEN (DISCHARGE VALVE CONTROL SCREEN), THE OPERATOR MAY SELECT
WATER ONLY, FOAM ONLY, OR CAFS. TO SELECT WATER ONLY, SWIPE THE PSI PRESET (RIGHT-
HAND SIDE OF THE WIDGET) TO THE TARGET. TO SELECT FOAM ONLY, SWIPE THE FOAM ONLY
PRESET TO THE TARGET (LEFT-HAND SIDE OF THE WIDGET), OR TO SELECT CAFS SWIPE THE (WET,
MED, OR DRY) CAFS BALLOON TO THE TARGET (LEFT-HAND SIDE OF THE WIDGET).
Figure 16. Activating A CAFS FOAM ONLY Preset
3.5 Changing A CAFS Discharge To FOAM ONLY
To change a CAFS discharge to FOAM ONLY, perform the following.
A. On SCC Home screen, touch desired active CAFS discharge. Valve X screen (discharge valve
control screen) displays. See Figure 17.
