14 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210

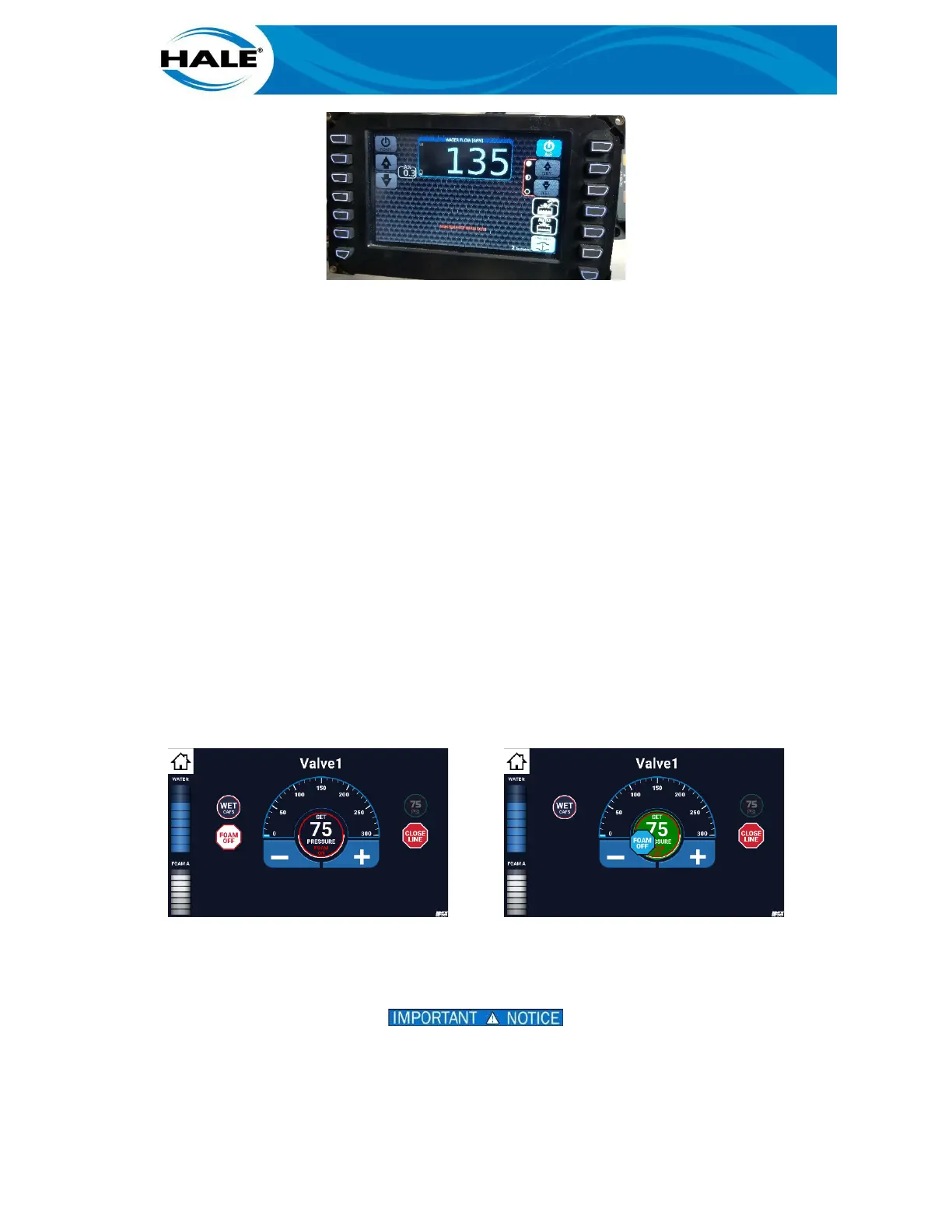

Figure 24. SmartCAFS Display
3.8 Turning Off CAFS (Using SAM)
When SAM has been used to activate CAFS and then CAFS is desired to be turned off via SAM the procedure
varies depending on either the desired transition (CAFS to FOAM, CAFS to water, or CAFS to pump shutdown)
and/or the number of active CAFS discharges.
3.8.1 Turning The CAFS System Off
If only one Quickset (or one preset) is active, simply use the CLOSE LINE balloon to turn off SmartCAFS (see
paragraph 3.7, above). This terminates CAFS (and FOAM) operations whether water flow is continued or ter-
minated at the same time.
If more than one Quickset or preset is active, and termination of pumping is desired, close all discharges
(CAFS and any other) sequentially and CAFS turns off when the last CAFS discharge is closed.
If more than one Quickset or preset is active and the continued pumping of water via the CAFS discharges is
desired, perform the following.
A. On SCC Home screen, touch any active CAFS discharge. (See Figure 14, page 9.) Displays
Valve X screen (discharge valve control screen) displays. (See Figure 15.)
B. On Valve X screen (discharge valve control screen), swipe FOAM ONLY bubble to target (cen-
ter of gauge). (See Figure 18, page 11.)
C. Touch YES on the popup verification. (See Figure 19, page 11.)
D. On Valve X screen (discharge valve control screen), swipe FOAM OFF bubble to target (center
of gauge). (See Figure 25.)
Figure 25. Turning The CAFS System Off
E. Touch YES on the popup verification. (See Figure 10, page 7.)
The CAFS system is turned off and the discharges (previously flowing CAFS) now flow water only.
SOME WATER ONLY OPERATIONS MAY DAMAGE THE CAFS SYSTEM IF THE CLUTCH IS ENGAGED.
REFERENCE CAFS QUICKSTART GUIDE, DISENGAGING THE COMPRESSOR CLUTCH (PAGE 10 OF
FSG-MNL-00176) TO ENSURE PROPER CAFS TURN OFF WHEN SAM INCLUDES A CAFS SYSTEM.
