Controls and Display

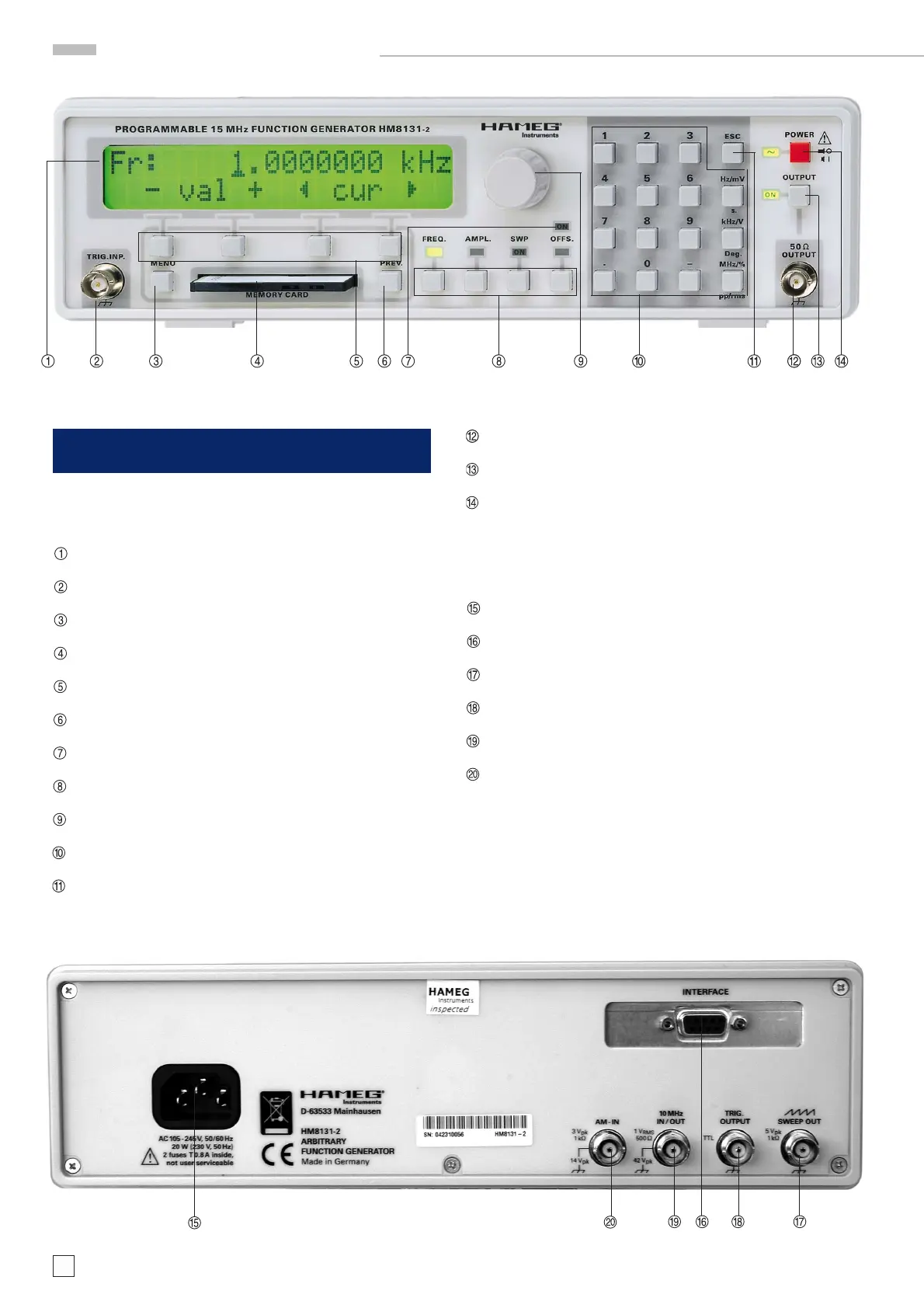

Frontpanel
LCD display with 2 lines of 20 characters each
Trigger input
Menu selection pushbutton
Memory card slot
Pushbuttons for menu control
Menu backspace pushbutton
Offset indicator
Pushbuttons for selection of knob and keyboard functions
Incremental rotational control
Keyboard
Escape pushbutton, erases an input
50 Ω output (BNC)
Pushbutton for switching the output on/off
Mains switch
Rearpanel
Line voltage connector
RS-232 interface (Option: IEEE-488, USB)
Sawtooth output
Trigger output
10 MHz input/output, ext. reference input
AM input
